Goodrive300-21 series dual inverter integrated machine for air compressor
Appendix B
B.2.3. Installation steps for fuse pedestal
The fuse pedestal must be installed according to below procedures, otherwise any wiring attempt
would failure
Step 1: Connect the cable to the bottom of the two pedestals respectively. The yellow cable (cable
mark is FU-2) should connected to the left side while the green cable (cable mark is FU-4) should be
connected to the right side;
Step 2: Yellow cable goes through the through-hole on the left side and green cable goes through the
through-hole on the right side;
Step 3: Put the fuse pedestal into the installation stand and fix the fuse pedestal with M4 pan head
screw;
Step 4: Install the fuse into the fuse pedestal;
Step 5: Fuse pedestal installation is completed.
Yellow cable Green cable
(FU-2)
(FU-4)
1
2
3
4
5

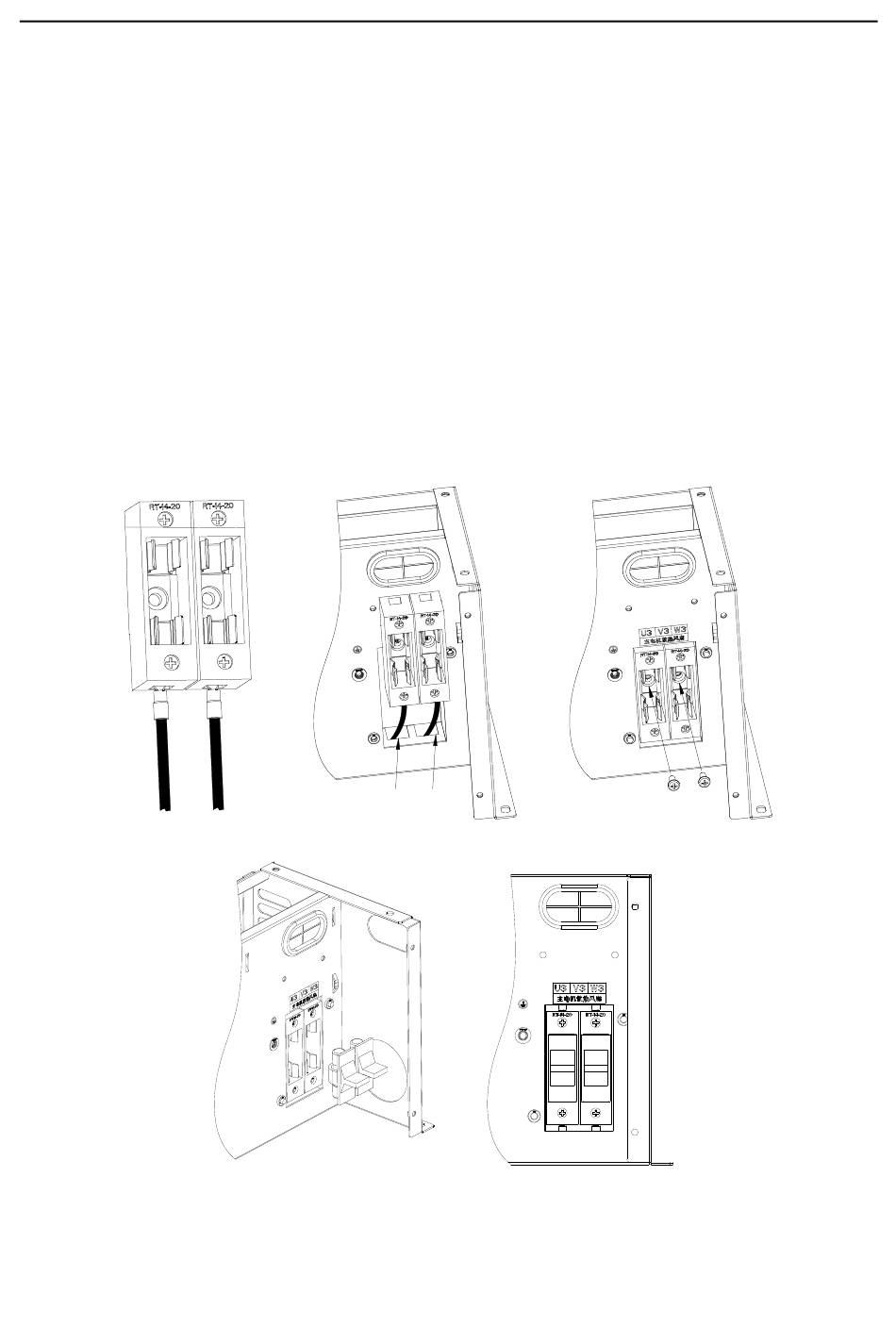

Fig B.8 Installation diagram of fuse pedestal
-
-
77
