Goodrive300-21 series dual inverter integrated machine for air compressor
B.6.5. Floor wiring process
For changing from wall installation to floor installation, an optional pedestal can do the trick.
Control cable
Connection cable of
optional parts
Note: If the optional parts are not installed on the pedestal, the cable length may be inappropriate.
Users can make cables based on actual conditions.
B.7. Touch screen
In respect of drive and management of air compressor, users can choose to install our VT6070E
touch screen to match with Goodrive300-21. The touch screen package contains a 2m long RS485
communication cable (including 24V power cable) and signal wire for emergency-stop switch as
shown below:
The cable goes through the
through-hole on the left and
right side to the back of
pedestal
Main motor cooling
fan cable

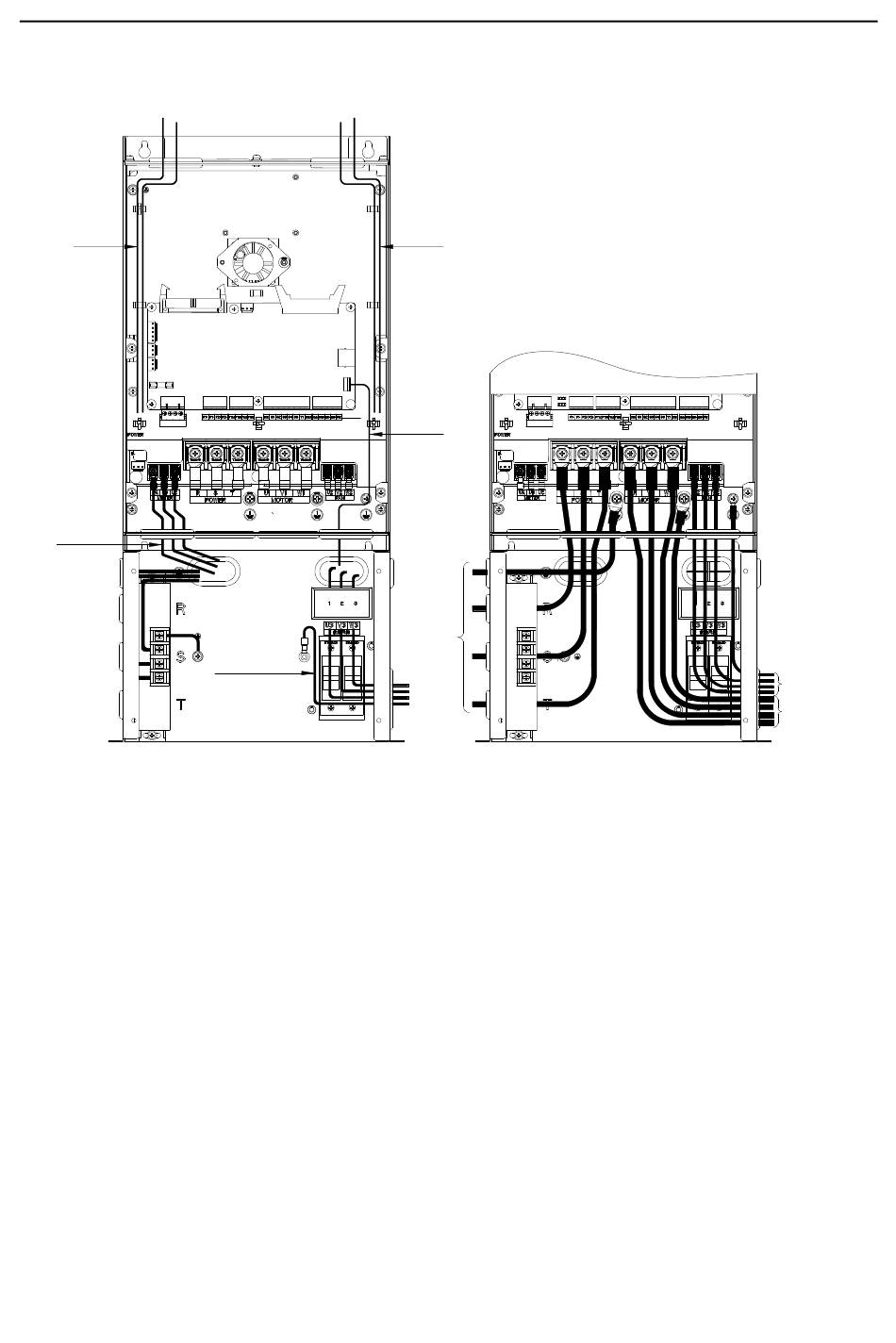

Fig B.20 Wiring diagram of control circuit and main circuit
Control cable
Power collection module
Communication cable
AC power cable
- -
86
Appendix B
Fan cable
Main motor cable
