INVT Goodrive300-21 Series Operation Manual page 85

Goodrive300-21 series dual inverter integrated machine for air compressor
Name
Combination screw
Top cover
Note:
1. Refer to A.2 for detailed dimensions
2. If users select top cover by themselves, please note that the distance between top cover and the
fan should be no less than 110mm, otherwise cooling effect may be impacted.
B.5.1. Installation of drip-proof top cover
Combination
Top cover board
Integrated
Model
M5×10
M4×10
M4×10
285×205
335×225
405×285
screw
Hex stud
machine

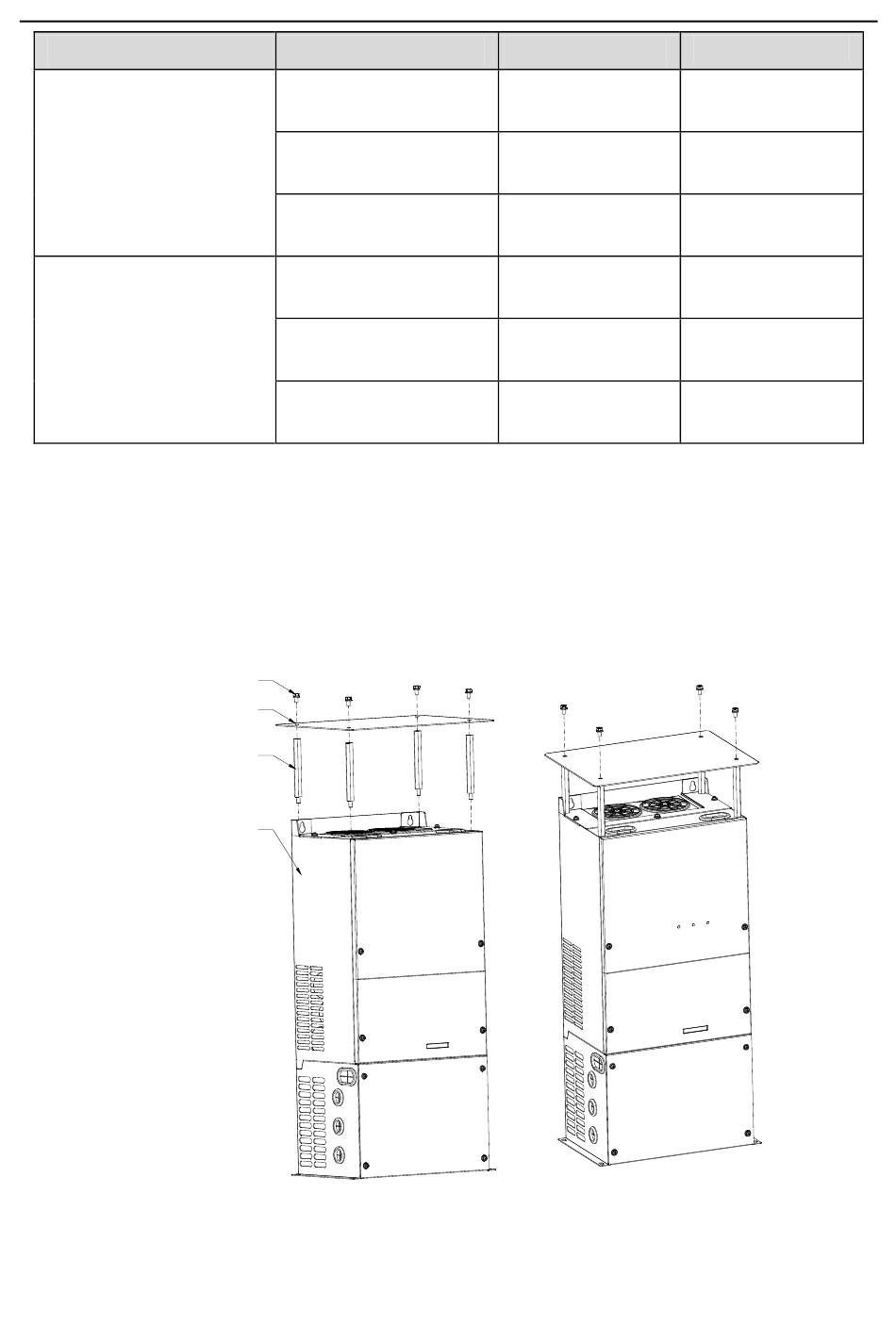

Fig B.16 Installation diagram for drip-proof top cover
Qty.
4
4
4
1
1
1
Installation diagram for
optional top cover
- -
82
Appendix B
Remark
220V 7.5–11kW
380V 15–22kW
220V 15–18.5kW
380V 30–37kW
220V 22–45kW
380V 45– 90kW
220V 7.5–11kW
380V 15–22kW
220V 15–18.5kW
380V 30–37kW
220V 22–45kW
380V 45– 90kW
