Goodrive300-21 integrated machine for air compressor
Debugging guidance

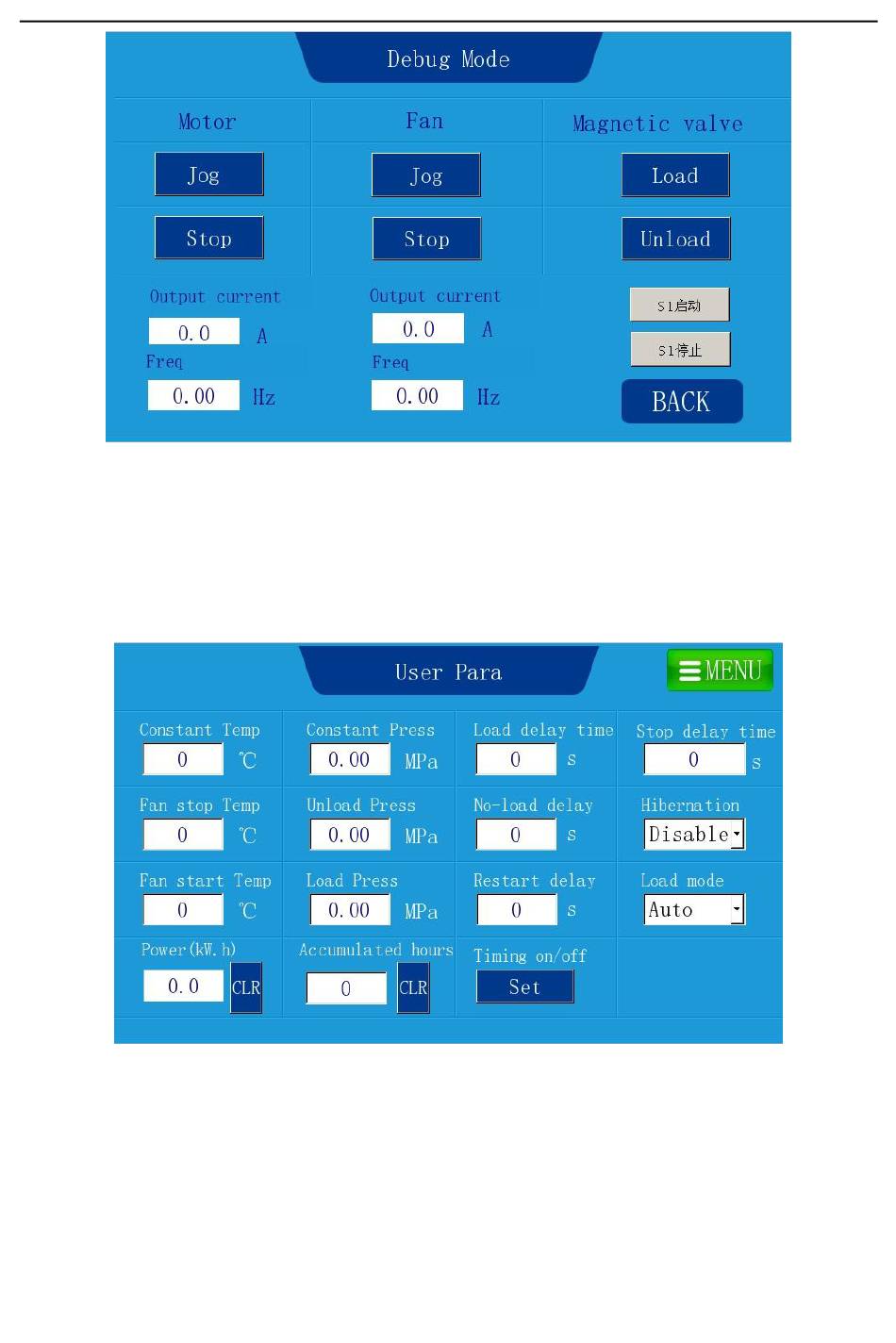

Fig 4.14 Debugging mode interface
Click "jog" for motor and fan to determine motor rotation direction; click "load" or "unload" to test the
action of solenoid valve. Click "BACK" to enter system configuration, then, click "menu" to return
menu interface.
6. Click "user para" in touch screen menu and the interface is shown as below:
Fig 4.15 User parameter interface
-
-
19
