B.4.4. Debugging
Installing and wiring according to the requirements in B.4.1, B.4.2 and B.4.3. After powering up,
observe the indicator of remote data collection terminal module, which should flash quickly at the
beginning, then the green indicator keeps on and red indicator flashes at 15s interval. When selecting
"valid" for GPRS operation enabling in "protection parameter" interface, it is viable to give reset
command and modify parameters; if selecting "invalid", state parameters will be read-only.
Users can log onto the server (iot.invt.com:10000) with the account and password provided by INVT
to check whether remote data terminal module is connected to internet.
Note:
1. Refer to IOT_GPRS_0100 product manual for detailed instruction on remote data collection
terminal module.
2. Parameters displayed in fig B.15 is for reference only and should be subject to the actual displayed
content.
B.5. Drip-proof top cover
In order to meet IP21 protection class, it is recommended to install optional drip-proof top cover on
Goodrive300-21. The detailed package list is shown as below:
Name
Hex stud

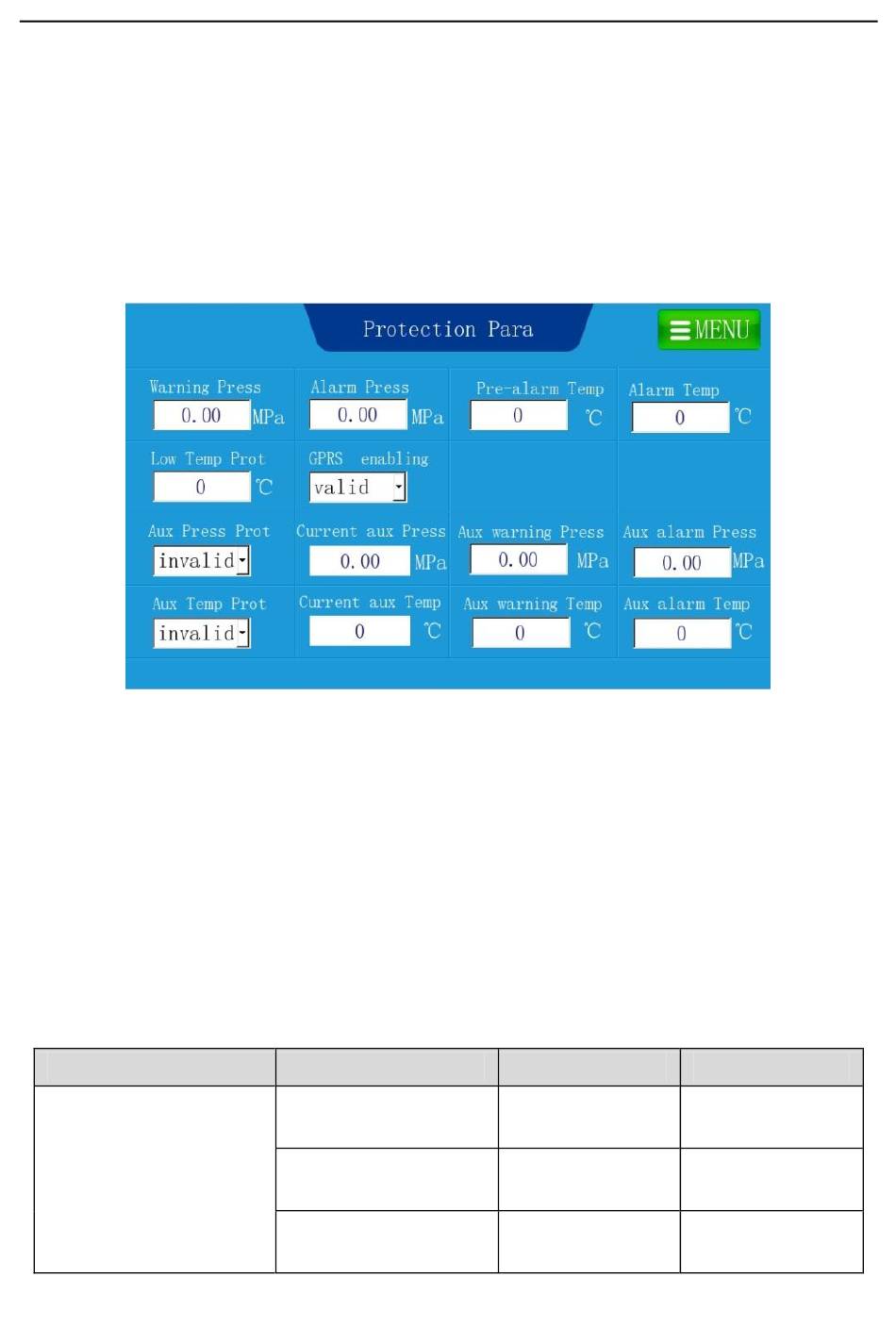

Fig B.15 Protection parameter interface
Model
M5×101
M5×110
M5×110
-
81
Qty.
4
4
4
-
Appendix B
Remark
220V 7.5–11kW
380V 15–22kW
220V 15–18.5kW
380V 30–37kW
220V 22–45kW
380V 45– 90kW
