INVT Goodrive300-21 Series Operation Manual page 19

Goodrive300-21 integrated machine for air compressor Debugging guidance

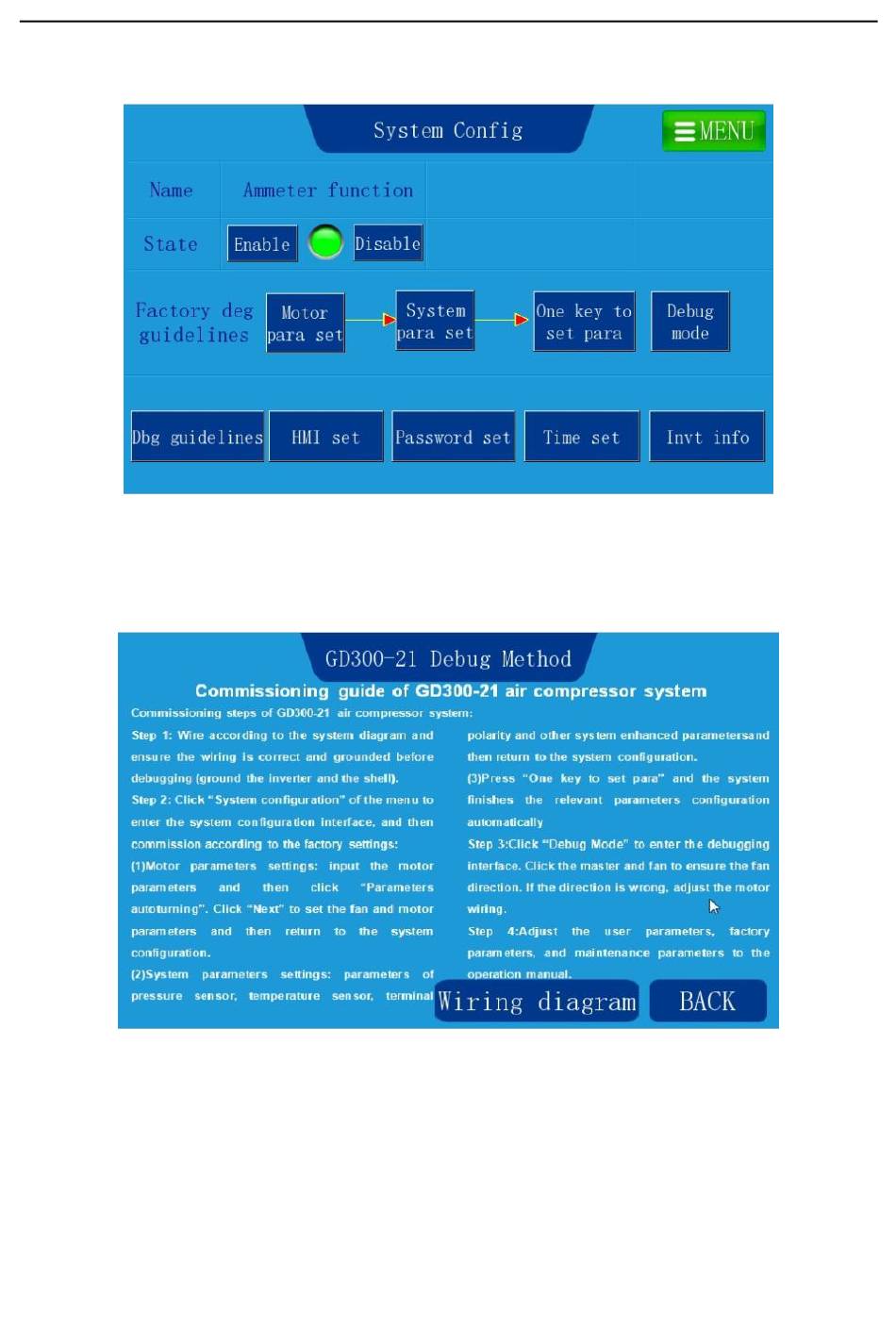

5. Click "system config" in touch screen menu and enter system configuration page, the interface is
shown as below:
Fig 4.9 System configuration interface
The fan inverter is enabled by default. Debug according to the debugging procedures.
Step 1: Click "Dbg guidelines" in system configuration interface and the interface is as below:
Fig 4.10 Debugging guidance interface
After read through above procedures, click "BACK" to enter system configuration.
Step 2: Click "motor para set" in system configuration interface and the interface is shown as below:
Select motor type, if select "synchronous motor", it is necessary to set the max. frequency, rated
frequency, rated power, rated voltage, rated current, number of pole pairs, carrier frequency; if select
- -
16
