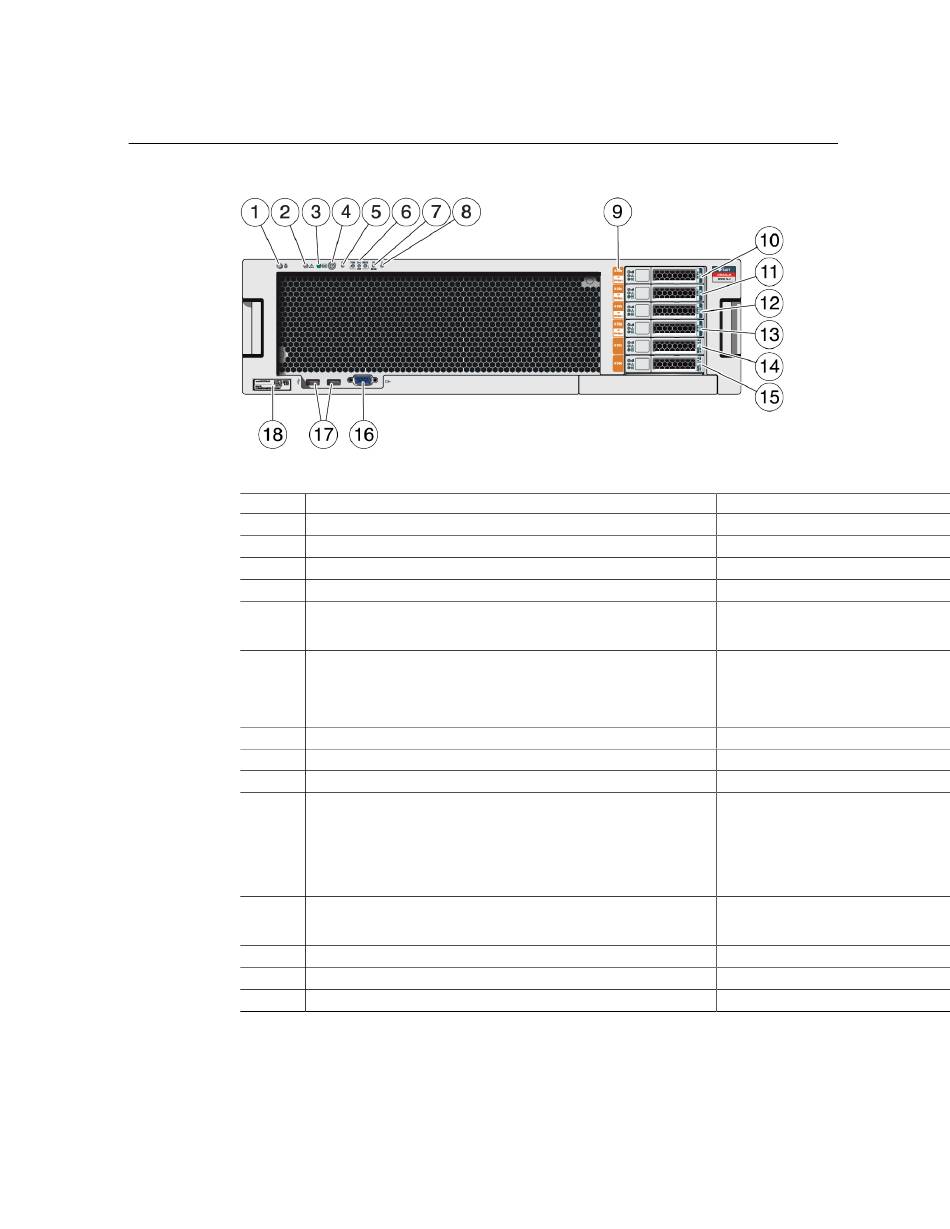

Front Panel Components (Service)

No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
14 SPARC T8-2 Server Service Manual • June 2019
Description
Locate indicator and button (white)
Service Action Required LED (amber)
Power/OK LED (green)
Power button
SP OK indicator (green)
Three Service Action Required LEDs (amber) for fan module (FAN), processor
(CPU), and memory (MEM)
PS Service Action Required LED (amber)
Overtemp LED (amber)
Drive labels
HDD 5 or NVMe 3
HDD 4 or NVMe 2
HDD 3 or NVMe 1
HDD 2 or NVMe 0
HDD 1
HDD 0
DB-15 video connector
Two USB 2.0 connectors
Serial number
Links
"Front Panel Controls and LEDs" on page 34
"Front Panel Controls and LEDs" on page 34
"Front Panel Controls and LEDs" on page 34
"Front Panel Controls and LEDs" on page 34
"Front Panel Controls and LEDs" on page 34
"Servicing the SPM" on page 129
"Servicing Fan Modules" on page 75
"Servicing the Motherboard" on page 147
"Servicing Memory Risers and DIMMs" on p
"Servicing Power Supplies" on page 83
"Front Panel Controls and LEDs" on page 34
"Servicing Drives" on page 63
"Servicing Drives" on page 63
"VGA Port" in SPARC T8-2 Server Installatio
"USB Ports" in SPARC T8-2 Server Installatio
