Install the Fan Board

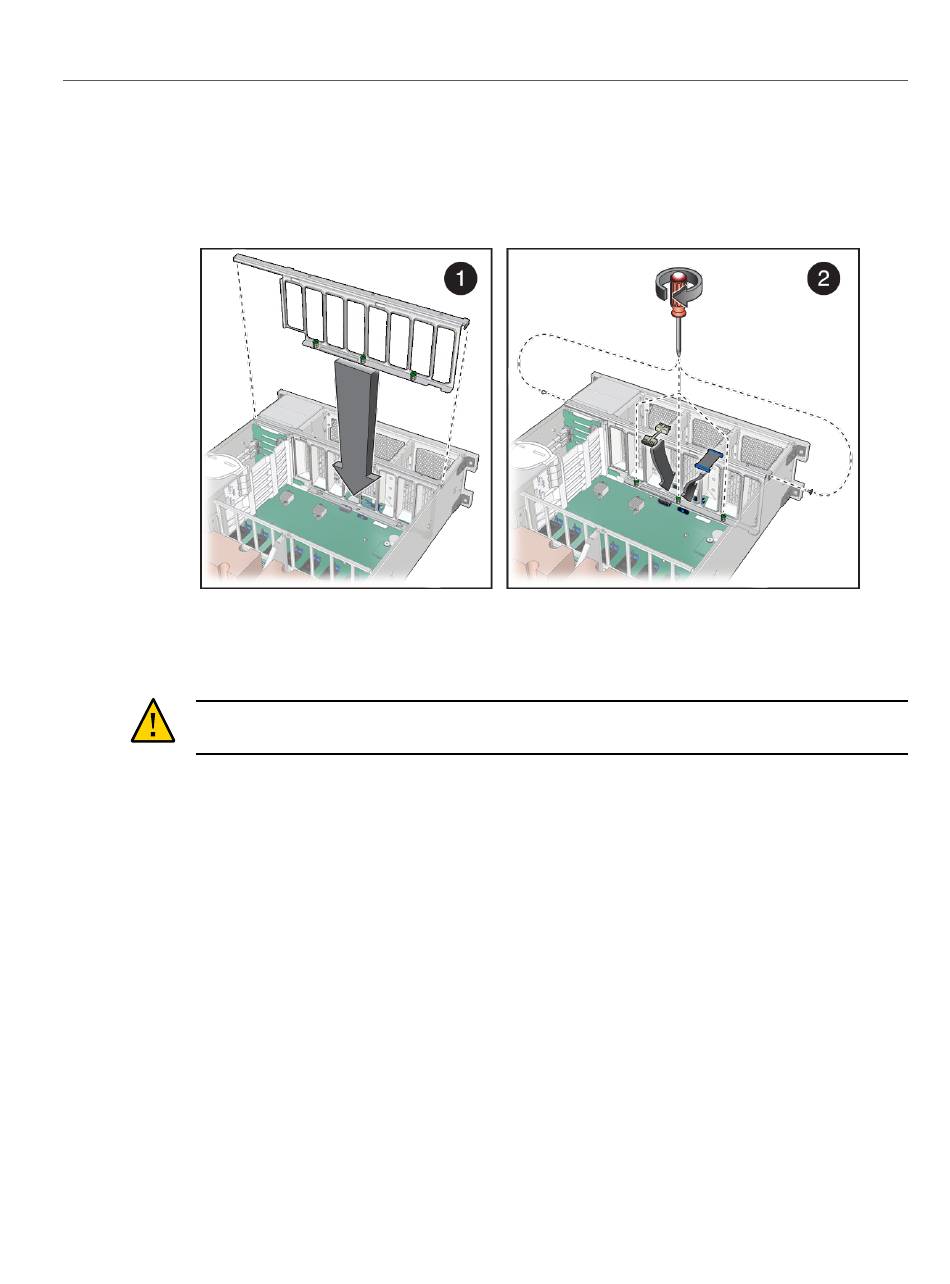

5. Reposition the front memory riser guide, routing the fan board and power cable
through the riser guide (panel 1).
Plug the fan board cable and power cable into the connectors on the
6.
motherboard (panel 2).
Caution -
on the connector before inserting the cable.
7. Secure the fan board by reinserting and tightening the two screws on each side
of the outside of the chassis (panel 2).
8. Tighten the three captive screws to hold the front memory riser guide in place
(panel 2).
9. Reinstall all fan modules.
See "Remove a Fan Module" on page
Reinstall all memory risers.
10.
See "Install a Memory Riser" on page
11. Return the server to operation.
See "Returning the Server to Operation" on page
144 SPARC T8-2 Server Service Manual • June 2019
