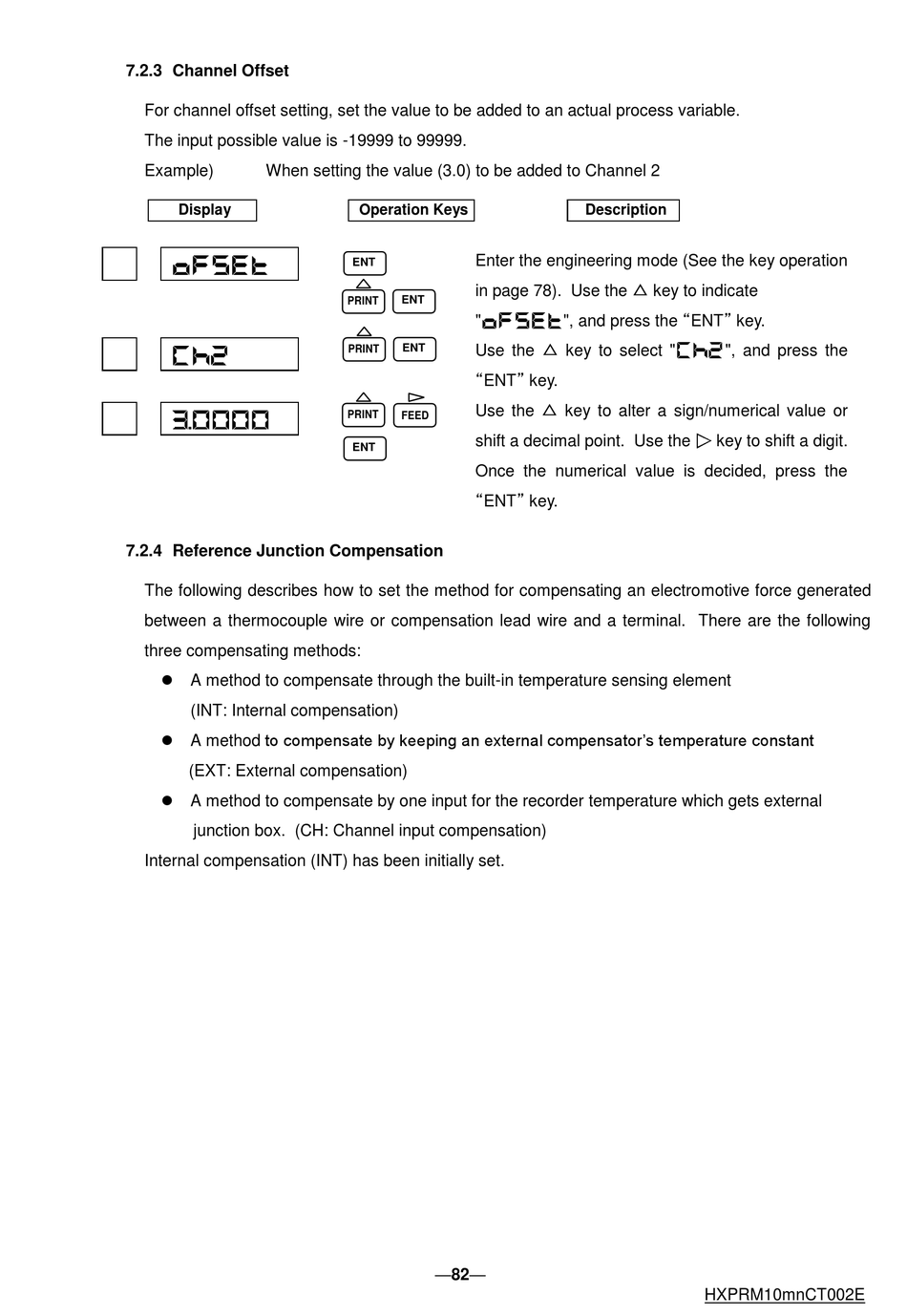

7.2.3 Channel Offset

For channel offset setting, set the value to be added to an actual process variable.
The input possible value is -19999 to 99999.
Example) When setting the value (3.0) to be added to Channel 2
Display

7.2.4 Reference Junction Compensation

The following describes how to set the method for compensating an electromotive force generated
between a thermocouple wire or compensation lead wire and a terminal. There are the following
three compensating methods:

A method to compensate through the built-in temperature sensing element
(INT: Internal compensation)
 A method to compensate by keeping an external compensator's temperature constant
(EXT: External compensation)

A method to compensate by one input for the recorder temperature which gets external
junction box. (CH: Channel input compensation)
Internal compensation (INT) has been initially set.
Operation Keys
Enter the engineering mode (See the key operation
ENT
in page 78). Use the △ key to indicate
ENT
PRINT
"
Use the △ key to select "
ENT
PRINT
"ENT" key.
Use the △ key to alter a sign/numerical value or
PRINT
FEED
shift a decimal point. Use the
ENT
Once the numerical value is decided, press the
"ENT" key.
