5.2 Setting the Cartridge Pen

CAUTION
To replace the cartridge pen, be sure to press the "RUN" key to stop recording.
(1) Pressing the "RUN" key for 3 seconds or more
Stop recording. With the power turned on, press the "RUN" key for 3 seconds or more.
Once recording stops, the RUN lamp goes off. (See Fig. 5.1 on Page 25)
The pen and printer automatically move, discontinuing paper feed. The No. 1 pen (red) records the
left side (approx. 15 %) and No. 2 pen (green) records the right side (approx. 85 %), respectively.
(See Fig. 5.2 on Page 25)
(2) Opening the Door
Push the door hook to unlock the door. Pull the door to this side to open it. (See Fig. 5.3 on Page 26)
WARNING
Because you may be hurt when you put fingers at the time of the opening and closing of the door,
please be careful.
CAUTION
Maximum angle of the door in opened-state is 135 degree. Do not further open the door otherwise
hinge will be broken.
(3) Detaching the Cartridge Pen
Pull out the cartridge pen to this side.
Hold here with
your finger.
Note
When pulling out the cartridge pen, do not hold the pen pipe. It could be bent, resulting in improper
recording.

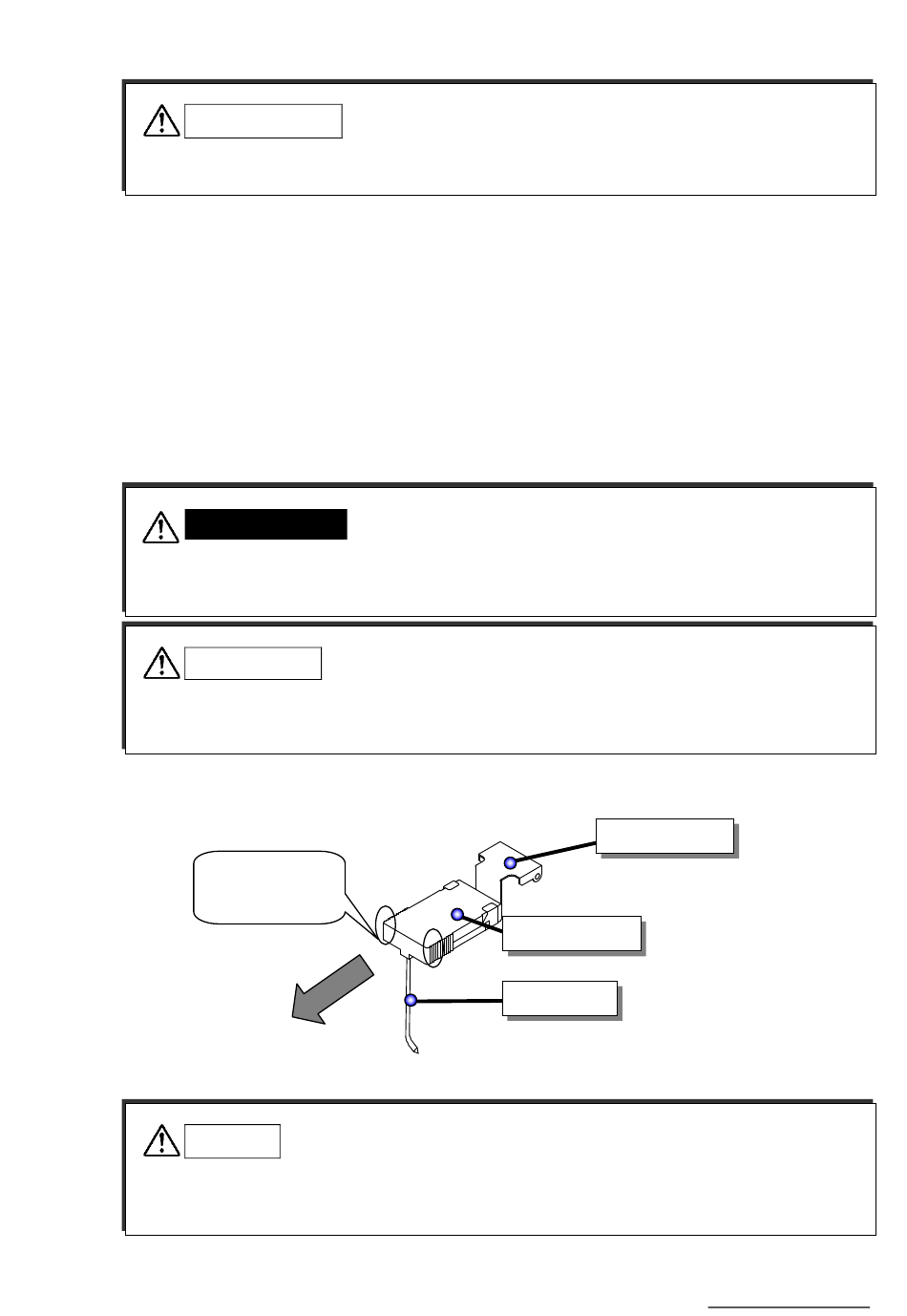

Fig. 5.14 Detaching the Cartridge Pen
―32―
Pen Holder
Cartridge Pen
Pen Pipe
