5.1 Setting the Chart Paper

CAUTION
It is recommended to use our original chart paper to ensure proper recording.
If the chart holder is taken out with recording operation being activated, the ink ribbon may be
damaged. To replace the chart paper, be sure to press the "RUN" key to stop recording.
Be sure to move up the cartridge pen. Otherwise, it will be damaged.
(1) Pressing the "RUN" key for 3 seconds or more
Stop recording operation. With the power turned on, press the RUN key for 3 seconds or more.
The RUN lamp goes off
if recording stops.
If recording stops, the pen and printer will move automatically, discontinuing paper feed.
The No. 1 pen(red) records the left side(approx. 15 %) and No. 2 pen(green) records the right
side(approx. 85 %), respectively.
5． PREPARATIONS FOR OPERATION
CH.No
ＲUN ＡＬＭ

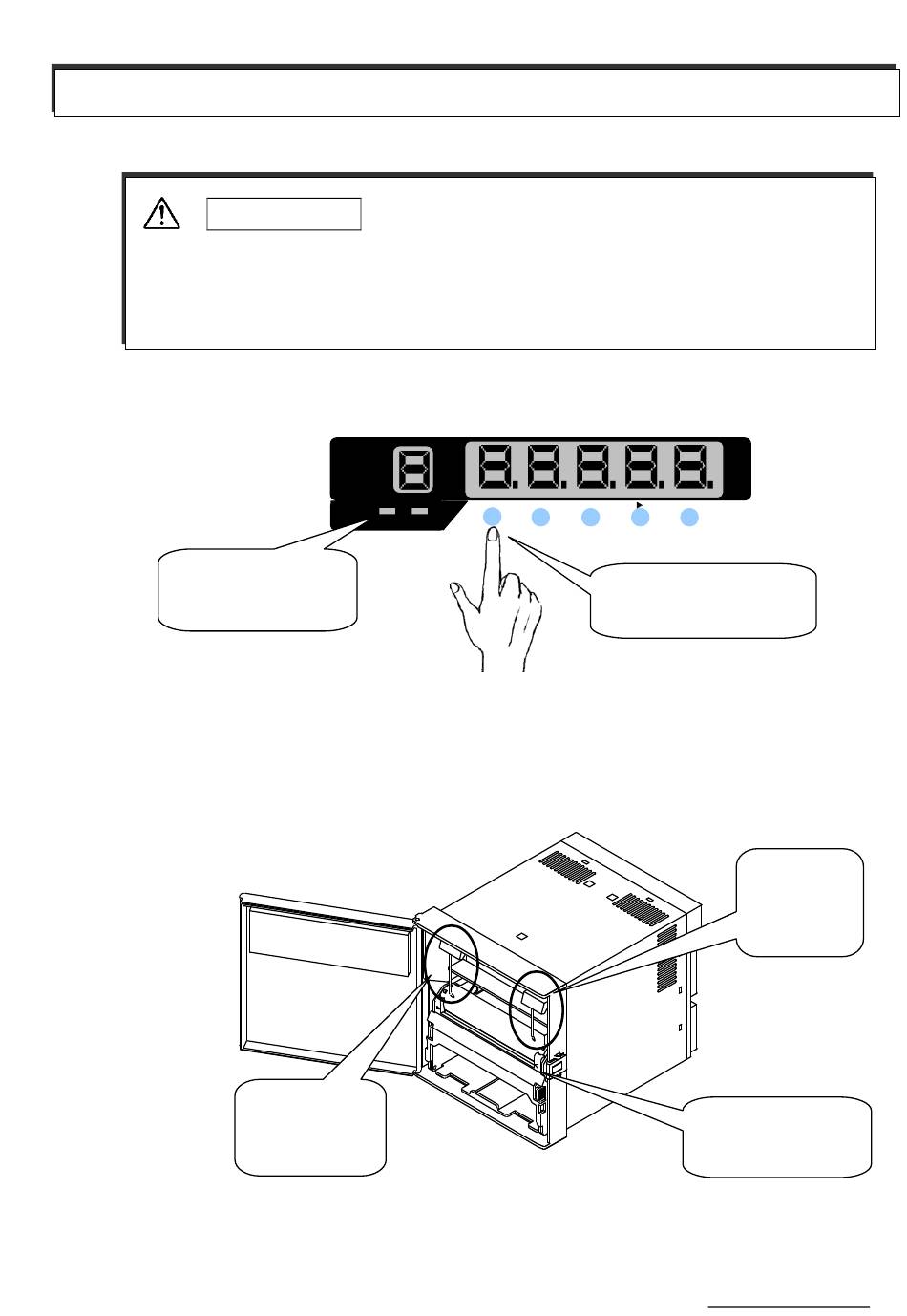

Fig. 5.1 Pressing the "RUN" key
No.1 pen (red)
to Left.
Fig. 5.2 Automatically Moving the 2 Pens and Printer
DATA
H
L
ＥＳＣ ▲
ＲUN ＭＥＮＵ ＰＲＩＮＴ
―25―
ＦＥＥＤ ＥＮＴ
Press the key for 3 seconds
or more.
No.2 pen
(green) to
Right.
The printer moves
to the right.
