Square Root - Toho Electronics TRM-10C Instruction Manual

(4) Square Root）
Caluclates the square root of Volt input, and scaling that value.
Setting the unit is possible. (See 7.1.3 on page 67.)

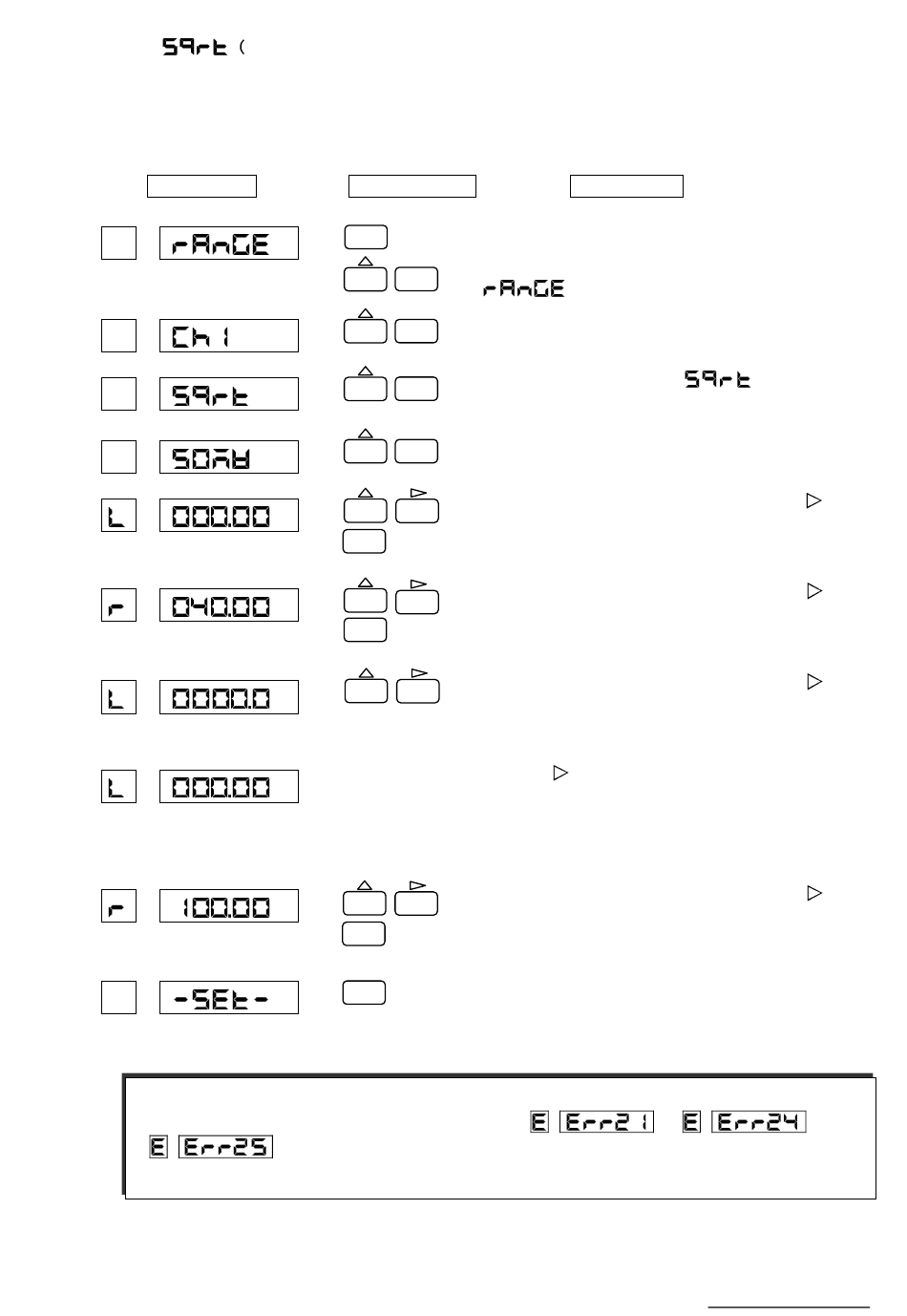

Example) When setting the voltage of 0 to 40 mV and scale of 000.00 to 100.00 for Channel 1
Display
（Zero input value）
（Span input value）
（Zero-side scale value）
（Decimal point）
（Span-side scale value）
［Note］
An entry of an incorrect numeral indicates an error,
. Press the "ENT" key and re-enter a correct numeral.
Operation Keys
ration Keys
ESC
Hold down the "MENU" key for 3 seconds or more
3 sec
MENU
to enter the setup mode. Use the △ key to indicate
ENT
PRINT
"
Use the △ key to select the channel you want to set.
ENT
PRINT
Press the "ENT" key.
Use the △ key to select "
ENT
PRINT
"ENT" key.
Use the △ key to select a range(50 mV). Press the
ENT
PRINT
"ENT" key.
Use the △ key to select a numeral. Use the
PRINT
FEED
to shift a digit. Press the "ENT" key.
ENT
Use the △ key to select a numeral. Use the
PRINT
FEED
to shift a digit. Press the "ENT" key.
ENT
Use the △ key to select a numeral. Use the
PRINT
FEED
to shift a digit.
Press the
to blink a decimal point. Use the △ key to select a
decimal point position. Press the "ENT" key.
Use the △ key to select a numeral. Use the
PRINT
FEED
to shift a digit. Press the "ENT" key.
ENT
Press the "ENT" key. Setting is completed. To
ENT
return to the user mode, hold down the "MENU"
key for 3 seconds or more.
―59―
