4.2.1 Wiring Procedure
CAUTION
The transparent protective cover should surely remove the left and right (both sides) hooks simultaneously.
If it removes by turns, there is a possibility that it may damage.
1 +
B
１channel
DC Voltage
+
+
Thermocouple
B
RTD
DC Current
+
1) Put your fingers on the left and right (both sides) hooks of the transparent protective cover on the
input terminal block. Pushing them inside, take out the cover to this side.

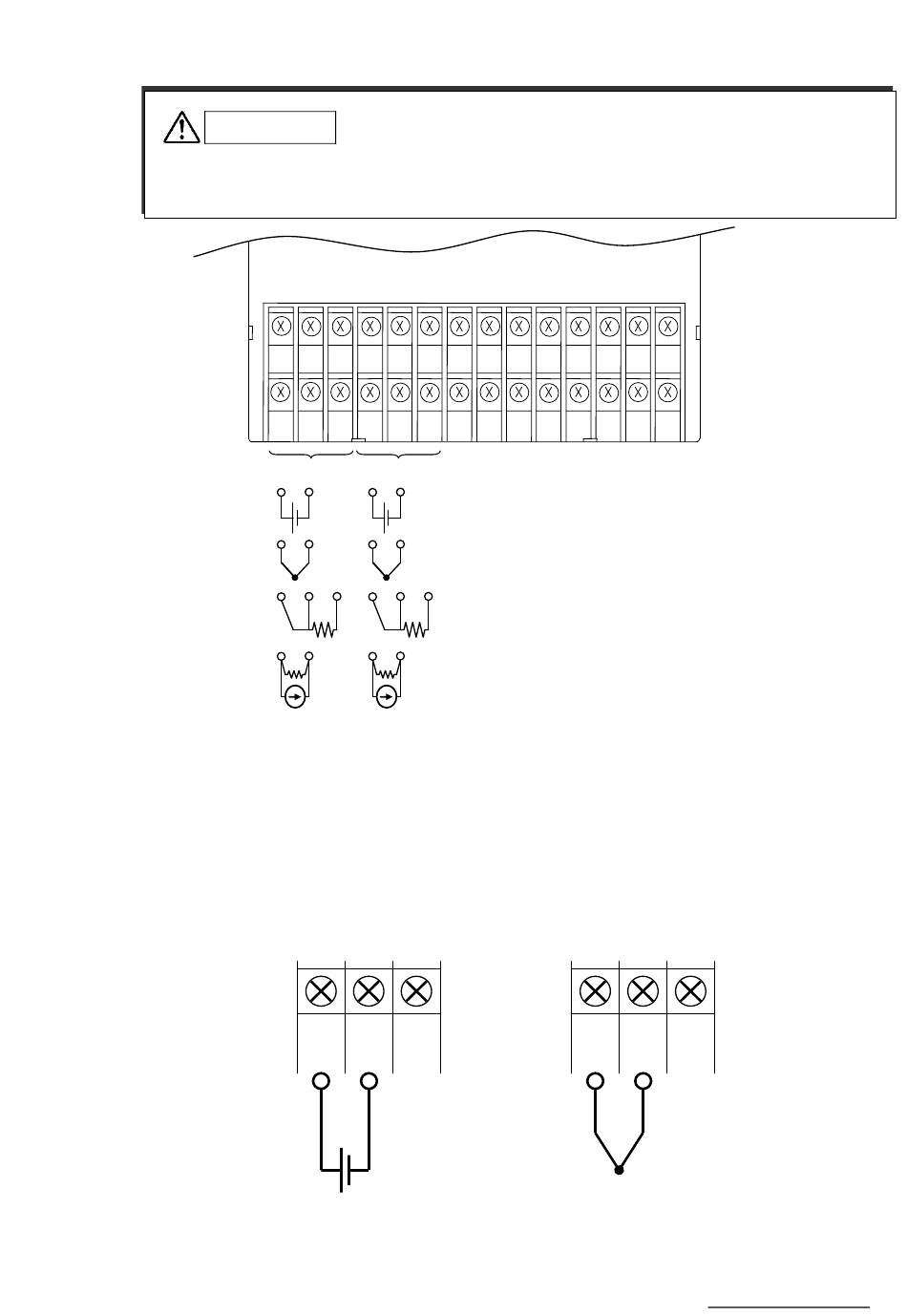

2) Wire the input lines refer to Fig. 4.3(Page 19), Fig. 4.4 and Fig. 4.5(Page 20).
3) Put back the transparent protective cover.
＋
1 -
1
2 +
2 -
2
B
A
B
B
A
２channel
-
+
-
-
+
-
B
A
B
B
A
-
+
-
Fig. 4.3 Input Wiring
① mV,V input
+
-
B
B
A
－
Fig. 4.4 Input Wiring (mV, V， TC)
―19―
DI
DI
DI
DI
COM
3
2
1
TD
RD
SG
② TC input
+
-
B
B
A
＋
－
HXPRM10mnCT002E
