［Note］
① This instrument is equipped with the ribbon cassette back of the chart holder. Open the door and take
out the chart holder to check it. (See Section 5.1 about taking out the chart holder.)
② The chart paper and the cartridge pen are contained in the chart holder. Take the chart holder out and
open the chart cover to check it.
③ Maximum angle of the door in opened-state is 135 degree. Do not further open the door otherwise
hinge will be broken.
This instrument is shipped
with the ribbon cassette
back of the chart holder.
Take the chart holder out to check its accessories.
See Section 5.1 "Setting the Chart Paper" for taking out the chart holder.
The chart paper is
contained in the chart
holder.
Open the Chart Guide to
check it.
Chart Guide

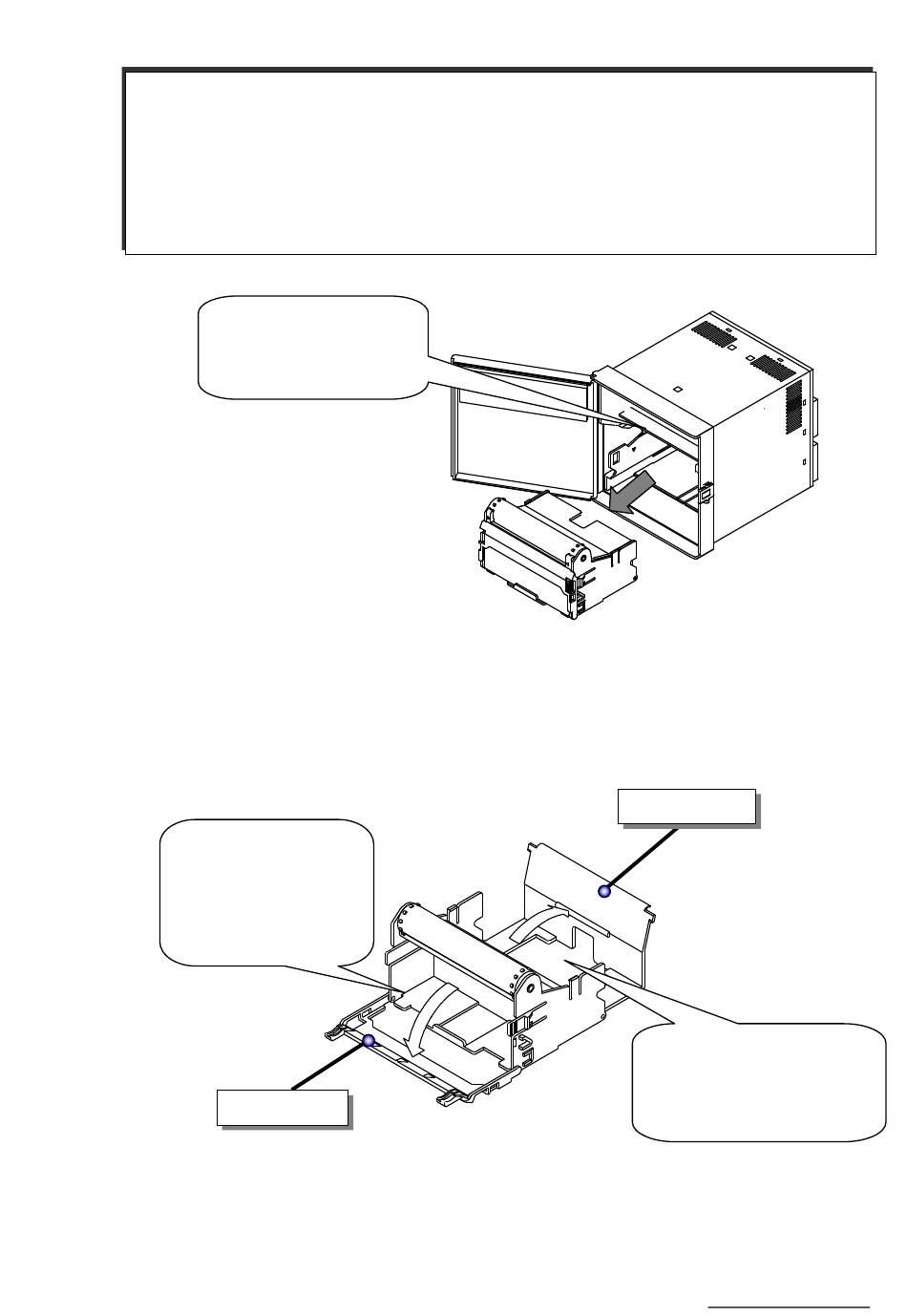

Fig. 1.3 Position of the Chart Paper and the Cartridge Pen
Fig. 1.2 Position of the Ribbon Cassette
―7―
Chart Cover
The cartridge pen is contained
in the storage chamber.
Open the chart cover to check
it.
HXPRM10mnCT002E
