Toho Electronics TRM-10C Instruction Manual page 38

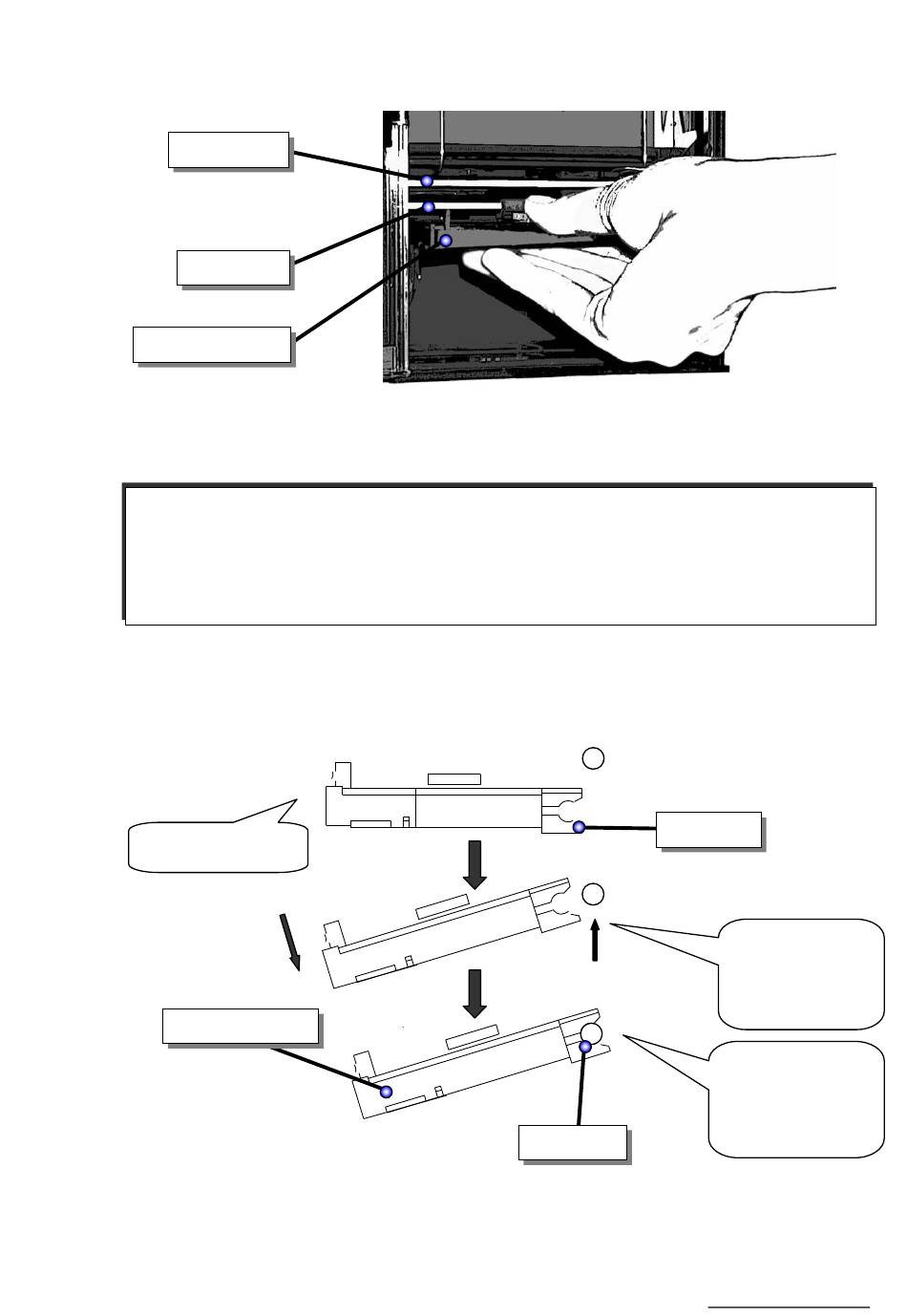

(10) Inserting the Ribbon Cassette Horizontally
Insert the ribbon cassette horizontally.
Guide Shaft
Main Shaft
Ribbon Cassette
［Note］
Your hands may be stained by ink when replacing the cartridge pen or ribbon cassette.
Use soap to clean them.
(11) Reattaching the Ribbon Cassette to the Main Shaft
Holding the ribbon cassette slantly, reattach it to the main shaft in such a manner that the hook of
the ribbon cassette will be engaged with the main shaft
Insert horizontally
Ribbon Cassette
Fig. 5.24 Reattaching to the Main Shaft (Ribbon Cassette Sectional View)
Fig. 5.23 Inserting the Ribbon Cassette
―37―
Hook
Main Shaft
Silently Upward
to Engage with
the main shaft
When pushed up
to fit, click sound
dose.
