Toho Electronics TRM-10C Instruction Manual page 36

(5) Lowering the Ribbon Cassette

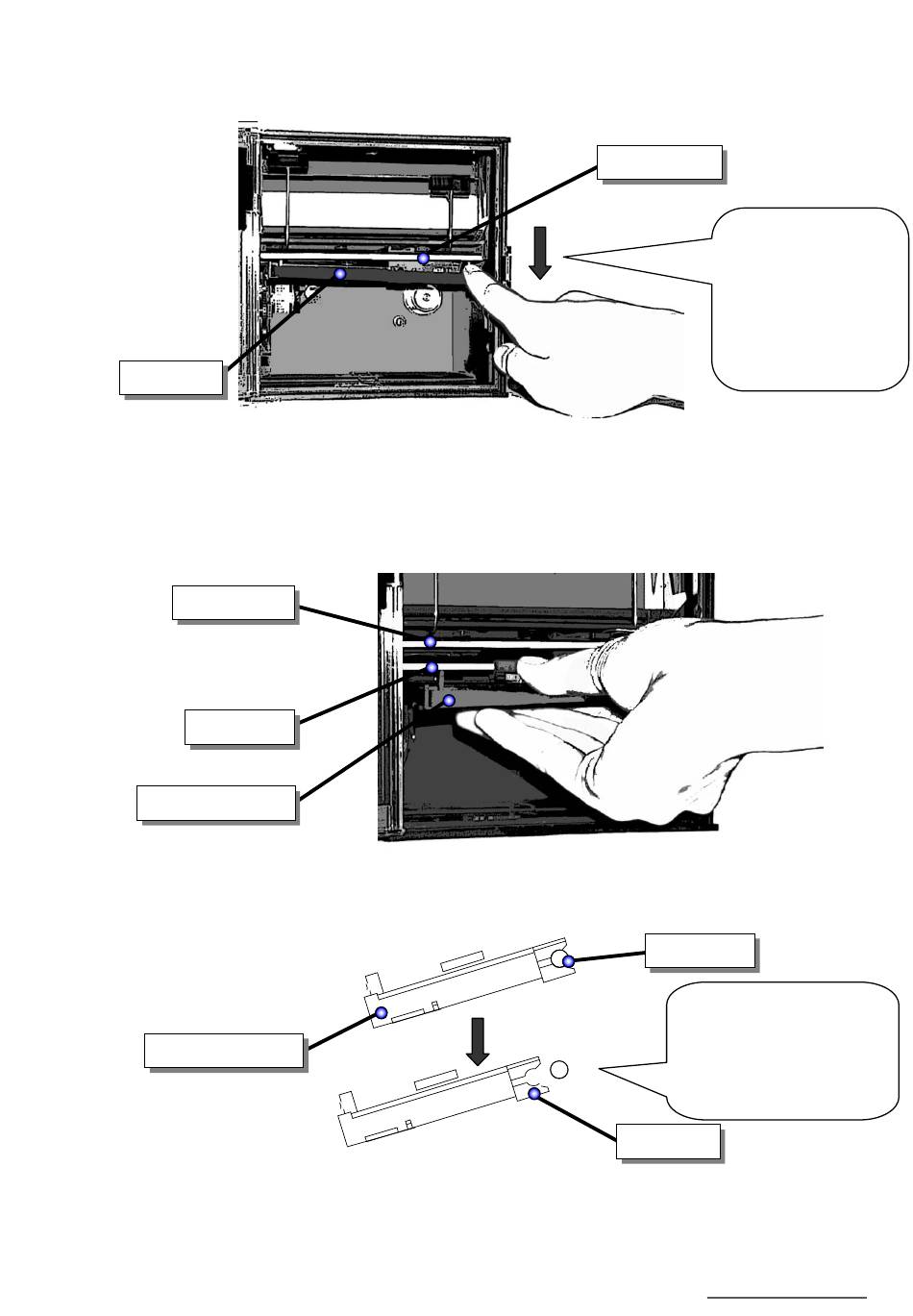

Detach both sides of the ribbon cassette from the guide shaft.
Ribbon
Fig. 5.18 Detaching from the Guide Shaft
(6) Pulling down the Ribbon Cassette Slantly
Detach the ribbon cassette from the main shaft.
Guide Shaft
Main Shaft
Ribbon Cassette
Viewing from the right side (section), the hook of the ribbon cassette has been engaged with the
main shaft.
Ribbon Cassette
Fig. 5.20 Ribbon Cassette Sectional View
Fig. 5.19 Detaching from the Main Shaft
―35―
Guide Shaft
Lower both sides of
the ribbon cassette.
Detach it from the
guide
side at one time.
Main Shaft
Detach the hook of the
ribbon cassette in such
a manner to disengage
it from the main shaft.
Hook
HXPRM10mnCT002E
shaft, one
