4.3.1 DI/Alarm Output Wiring Example

+12V
Terminal Block
Terminal Block
～
DI1 3
～
1A 3A
～
1C 3C
DI.COM Load
Recorder Side
COM
Recorder Side

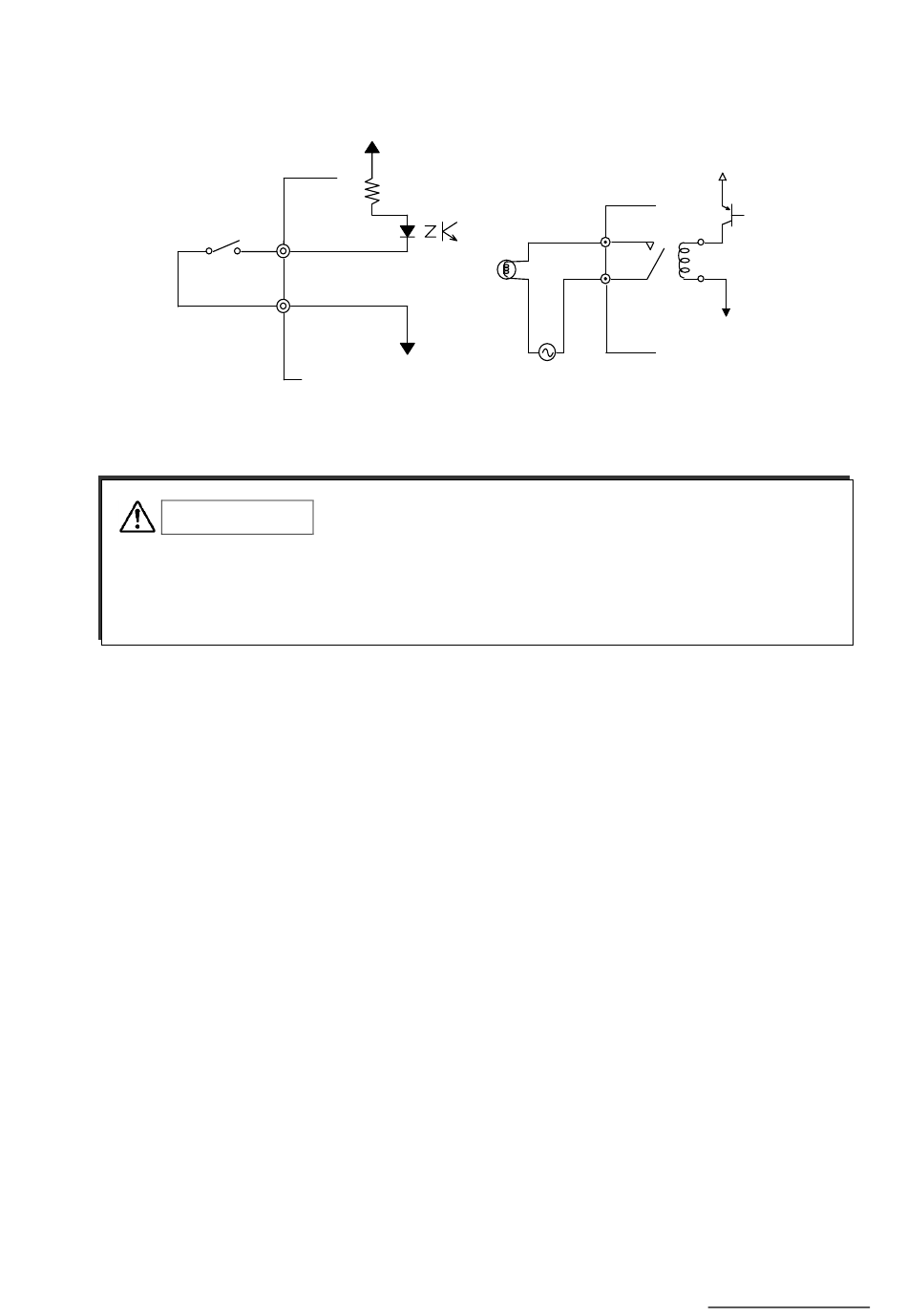

Fig. 4.6 DI Wring Example Fig. 4.7 Alarm Output Wiring Example
CAUTION
① The DI (Option) consists of a combination of 3 Digital inputs. The alarm output consists of 3-Relay
output (Normally open).
② Relay No.1 is a common output of paper empty sensor (Option) and alarm.
