6.3.3 Print Sample

Logging on print example and Alarm on print example
Date, Time
Chart Speed
Logging Print
Prints date and time, channel
number, Process variable,
engineering unit and chart speed.
［Reference］
Alarm print, Comment print, Date-and-Time print and Record Start/End print becomes waited-state
if the other printing is actuated.
TRM-10C stores up to six items of Alarm Occurrence/Recovery print and five items of Comment,
Date-and-Time and Record Start/End print. If printing commands are over, TRM-10C prints a
marking "＊" on the end of the last printing. This mark is meaning of that over items would not be
printed.
For priority of respective printing, see next page ; Priority in Reference.
［Note］
Logging print will not be the wait printing state. At the start time of Logging print, if the prior Logging
print is printing, the next one cannot print. Prolong the printing interval of Logging print in this case.
Record End Print
Oct.20.06 20:50 End
May.15.00
17:00
▼ 1H1 17:29
2L2 17:28
▲
1: 34.0℃
2: 20.149℃
1H1＊17:19
▲
100mm/h
Oct.20.06 19:00 Start
Record Start Print

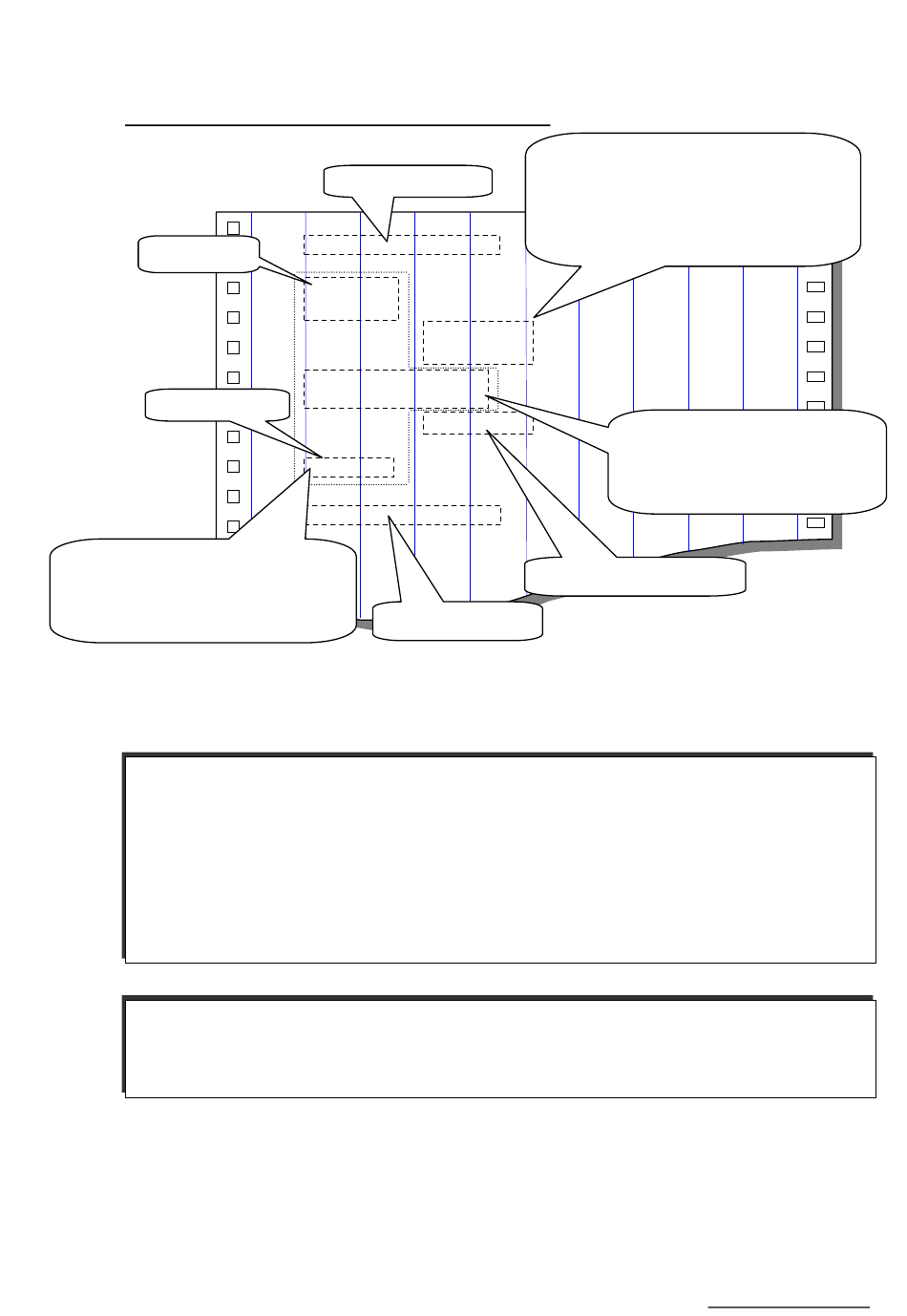

Fig. 6.5 Print Sample
―42―
Alarm Print
Prints alarm occurrence /reset, channel
number, alarm type, and level.
▲ denotes alarm occurrence and ▼
denotes alarm recovery, respectively.
Process variable
Prints "*****" if skipped. Prints
no data on the channel where
digital print has been set to OFF.
See ［Reference］ below
