Toho Electronics TRM-10C Instruction Manual page 93

Hybrid pen type recorder
Hide thumbs Also See for TRM-10C:
Table of Contents

Advertisement

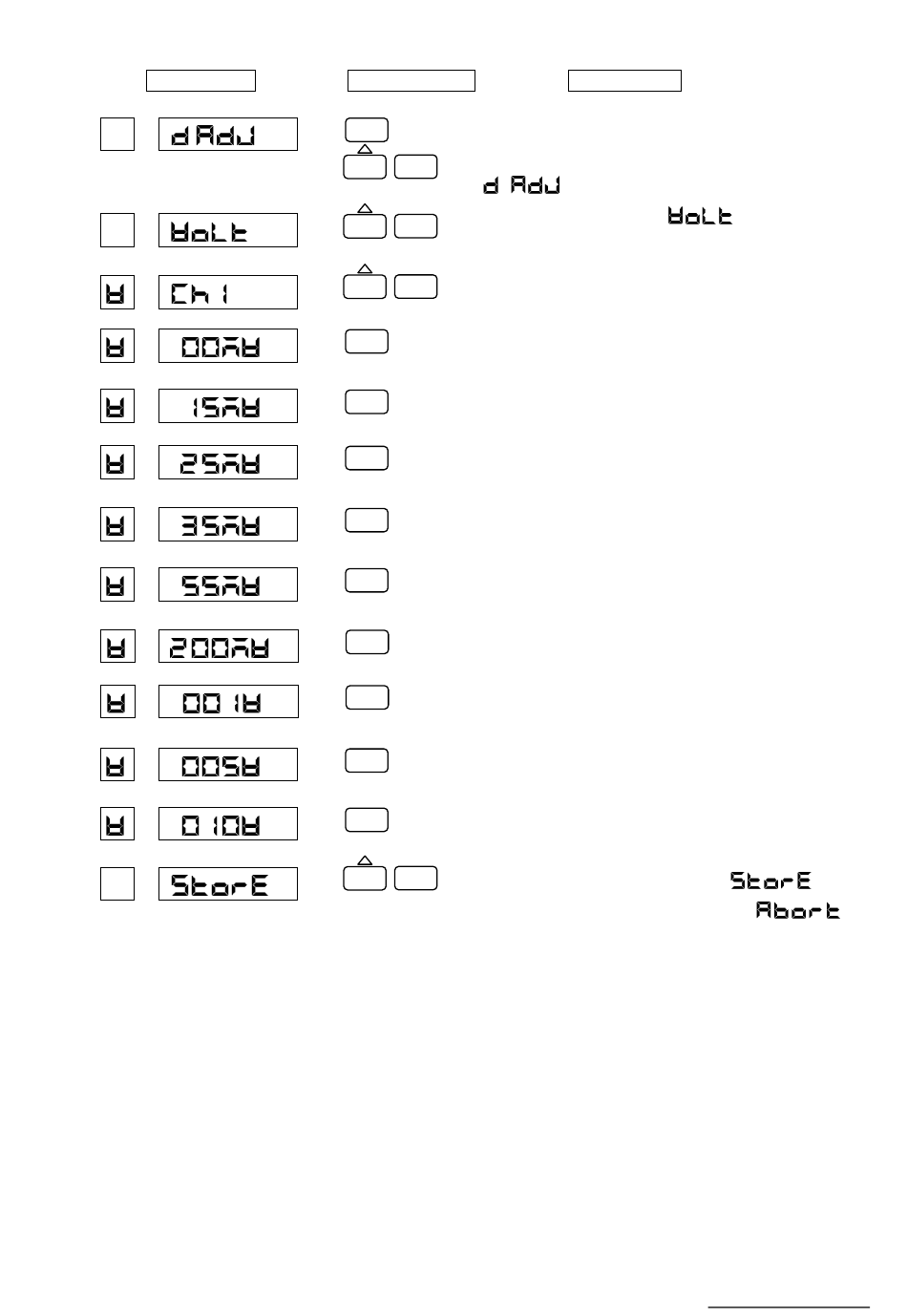

Example)
When calibrating the voltage at Channel 1
Display
Operation Keys
Enter the engineering mode (See the key operation
ENT
in page 78). Use the △ key to indicate
ENT
PRINT
"
Use the △ key to select "
ENT
PRINT
"ENT" key. Select the channel where a instrument
for calibration such as a mV generator is connected,
PRINT
ENT
and press the "ENT" key.
Enter 0 mV. After 30 seconds, make sure that the
ENT
ALM lamp unilluminated and press the "ENT" key.
Enter 15 mV. After 10 seconds, make sure that the
ENT
ALM lamp unilluminated and press the "ENT" key.
Enter 25 mV. After 10 seconds, make sure that the
ENT
ALM lamp unilluminated and press the "ENT" key.
Enter 35 mV. After 10 seconds, make sure that the
ENT
ALM lamp unilluminated and press the "ENT" key.
Enter 55 mV. After 10 seconds, make sure that the
ENT
ALM lamp unilluminated and press the "ENT" key.
Enter 200 mV. After 10 seconds, make sure that the
ENT
ALM lamp unilluminated and press the "ENT" key.
ENT
Enter 1 V. After 10 seconds, make sure that the
ALM lamp unilluminated and press the "ENT" key.
Enter 5 V. After 10 seconds, make sure that the
ENT
ALM lamp unilluminated and press the "ENT" key.
ENT
Enter 10 V. After 10 seconds, make sure that the
ALM lamp unilluminated and press the "ENT" key.
PRINT
ENT
If the calibration is correct, select "
the △ key, and if incorrect, select "
respectively. Then, press the "ENT" key.
―92―
Description
", and press the "ENT" key.
HXPRM10mnCT002E
