(2) Opening the Door
WARNING
Because you may be hurt when you put fingers at the time of the opening and closing of the door,
please be careful.
CAUTION
Maximum angle of the door in opened-state is 135 degree. Do not further open the door otherwise
hinge will be broken.
Push the door hook to unlock the door. Pull the door to this side to open it.
Door Hook
(3) Moving up the Pen
Push up the pen-up lever to move a pen tip away from the chart paper.(Move up the pen)

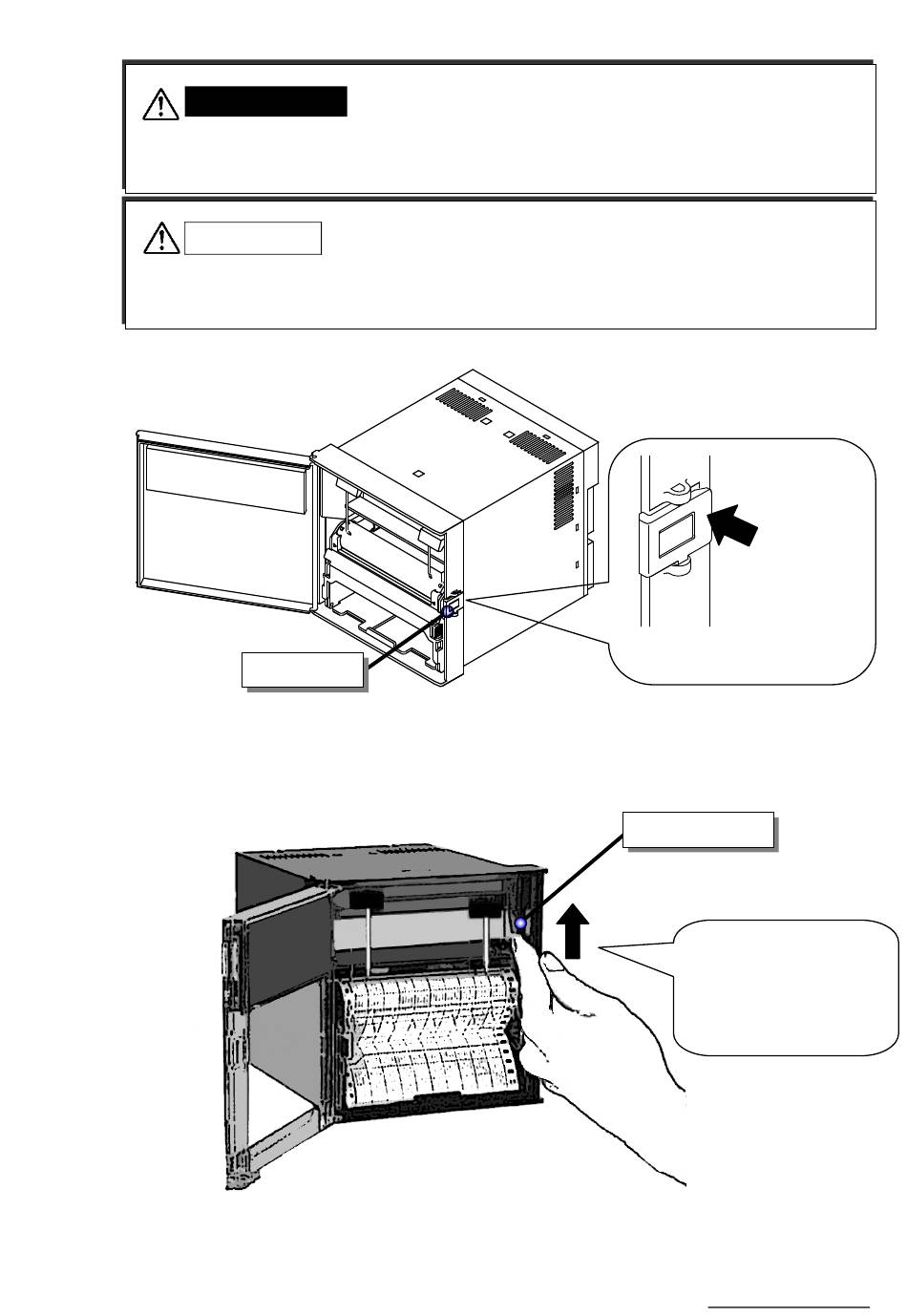

Fig. 5.3 Opening the Door
Fig. 5.4 Moving up the Pen
―26―
Push the door
hook in the
arrow direction
to unlock.
Pen-up lever
The pen-up lever is
located at the right end
inside the case.
Push it up with a finger.
HXPRM10mnCT002E
