6.2.5 Print gap correction

It is function to correct a gap between the print head and pen record.
When setting this function ON, it send record paper automatically for the whole printout contents to
come to the position in front of 1 pen ofer the asynchronous print out completes. (Fig.6.4)
The printout contents can be immediately confirmed by this .
As for this function, only DI asynchronous print, on asynchromous lo gprint are applerd.
･ Print gap correction OFF
12:00 STOP MEAS.

6.3 How to Record

6.3.1 Starting/Stopping Recording Operation

Starting/Stopping Recording Operation
To start/stop recording, press the "RUN" key.
To stop, hold down the "RUN" key for 3 seconds or more.
"RUN" lamp is unilluminated when stop recording.
［Note］
① When the power is turned on, the previous state where you turned off is continued.
② When controlling a start/stop of recording through Digital Input(DI, option), you cannot switch
start/stop with the "RUN" key.
③ When stopping, the No.1 pen (red) holds a left-side position (approx. 15%) and No.2 pen
(green) a right-side one (approx. 85%), respectively. Paper feed is suspended, but a feed key
movement is enabled.

6.3.2 Feed the Chart Paper

The chart paper is fed while the "FEED" key is pressed, and stops when released.
･ Print gap correction ON.
1pen
12:00

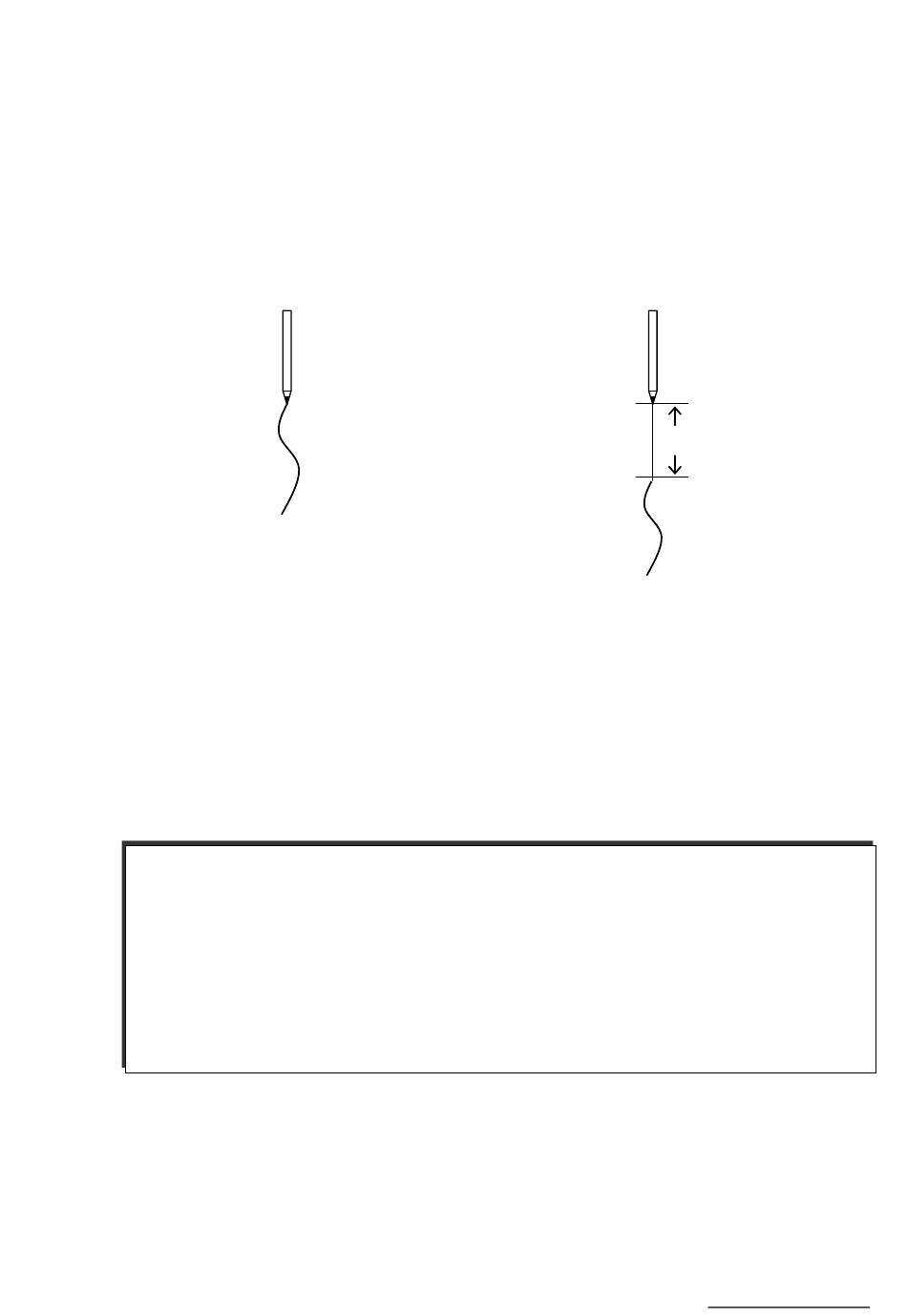

Fig. 6.4 Print gap correction
―41―
STOP MEAS.
Gap Correction
