Introduction

This chapter supplies wire and connector schematics for the Controller and Intensifier.

Controller Wiring Schematics

Figure 9-1 shows the part numbers of wiring harnesses in the Controller. Figures 9-2, 9-3,
and 9-4 show each harness along with wire colors and connector pins.
110V WALL POWER SOURCE
4244796
AC/DC POWER SUPPLIES
4244835
PRESSURE TRANSDUCER
PCA
4109268
4319911
BAROMETER MODULE
PCB ASSY
4329387
BAROMETER DOCK
CABLE PCA
4244692
4244692
PRECISION CONTROL VLV
PV2 TESTED
SAFETY SWITCH
4244781
J5 J16
J14
J13
PROCESSOR PCA BRAINBOARD
TESTED
4561112
J12
MAIN PCA TESTED
4561120
P-VLV PCA 4213295
J3 J2
4483378
PRECISION CONTROL VLV
PV1 TESTED

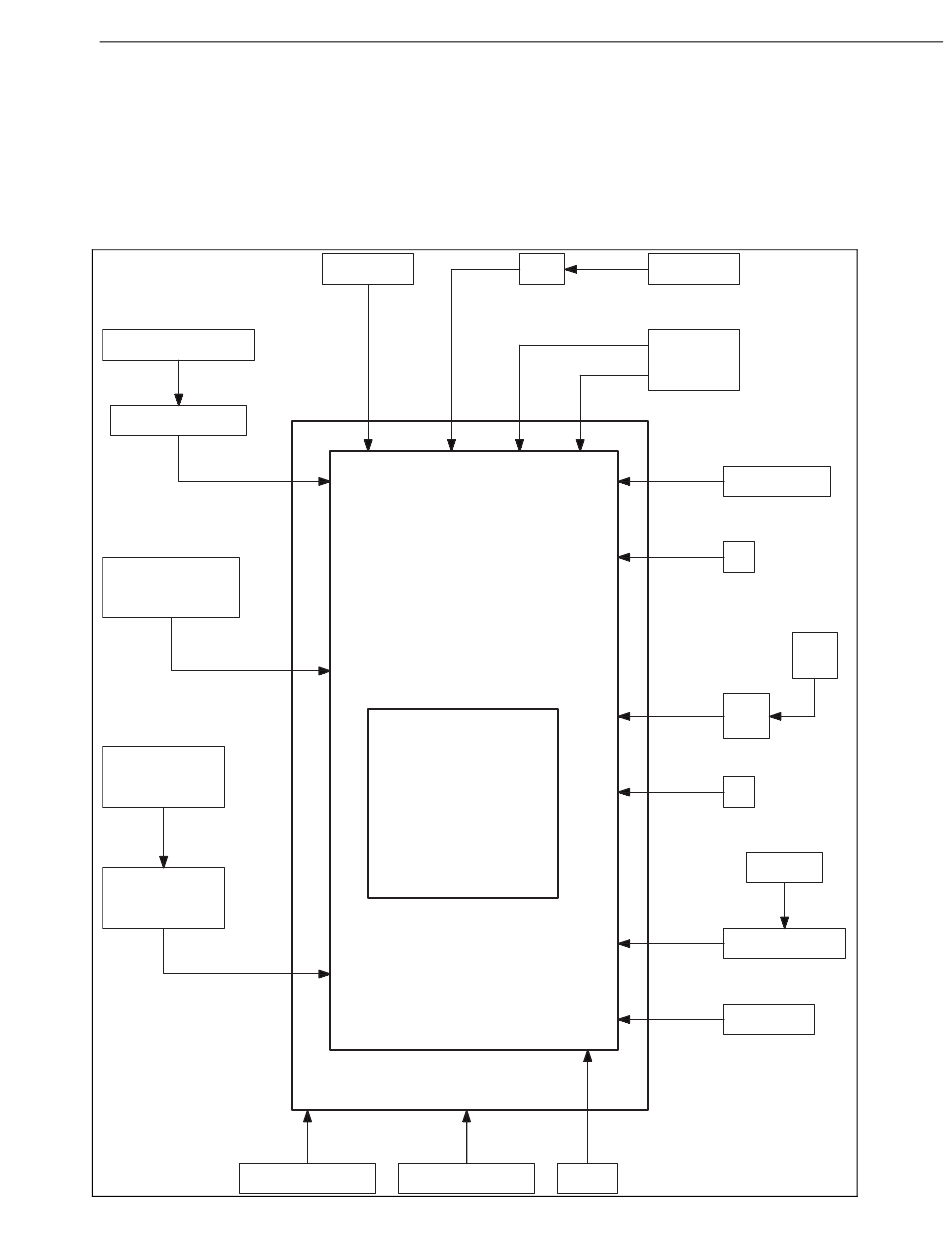

Figure 9-1. Controller Wiring Harness Part Numbers
4244645 4244689
KEYPAD
4244737
4251018
J7 J9
J10
J4
J6
J8
J11
J1
J3
4483384 4244801
FANS (2)
Wiring Schematics
Introduction
KNOB / ENCODER
LCD BACKLIGHT
LCD IMAGE
4244755 MANIFOLD VALVES
V5, V6, V7
4244762
VH1
VH2
(CPS)
4157718
DOCK
TARGET
4244728
VH3
IEEE-488
CONNECTOR
4244812
4241708
COMMUNICATIONS PCA
4213975
4244770
PUMP ASSEMBLY
hbx081.eps
