Module Calibration Procedure

This procedure supplies instructions on how to perform the Calibration procedure on the

G70M, G10M, G700K, A150K, and barometer modules. As mentioned in the

Fundamentals section, Calibration is a performance verification procedure that tests to

see if the module is within tolerance. No changes to the coefficients can be made with the

Calibration procedure. After the Calibration procedure is complete, an Alignment should

be completed if any of the modules did not pass the calibration.

1. Select the Advanced Operating mode on the startup screen.

2. Select .

3. Select Calibration to edit the Calibration menu.

4. Select Run Calibration .

5. Select the desired module as shown in Figure 3-4.

6. Fill in the Run Calibration menu as follows (see Figure 3-5):

Text enclosed in [brackets] denotes a custom user entry.

a. Test type: Gauge Calibration or Abs Calibration

b. Adjustment Tol % : [user entry]

Adjustment Tol % will be disabled if Use Tol is set to No.

c. Use Tol: Yes to use the Adjustment tol % from the last step or No

d. Head Relative to 4322: 0 if on the same surface. If not, measure the head-height

difference and enter it into the field. Use a positive (+) value if the UUT is above

the Controller and a negative (-) value if the UUT is below.

e. Reference SN: [serial number of the KN 3689]

Addr: 10

g. Time/Date: [automatically populated]

h. Operator: [enter initials]

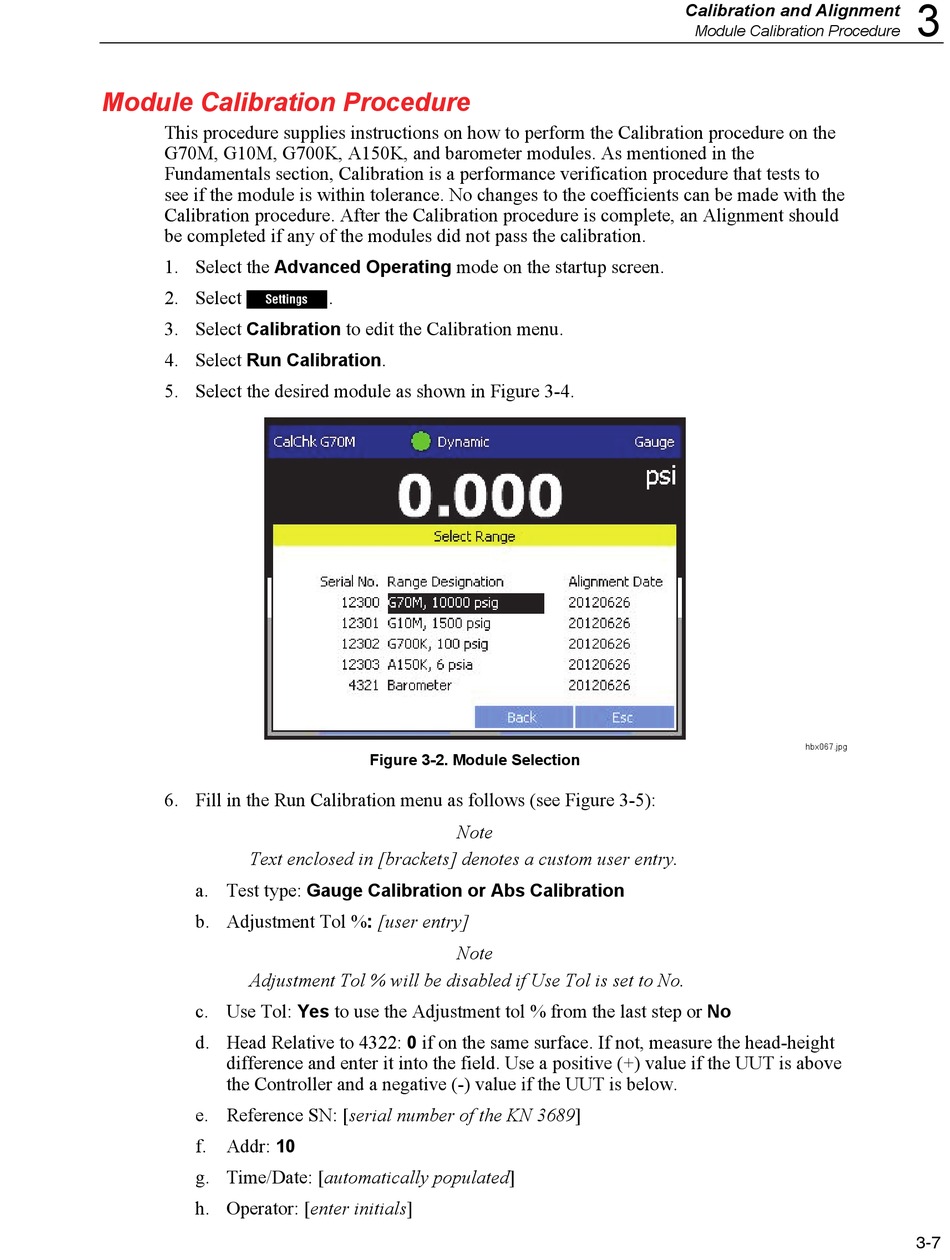

Figure 3-2. Module Selection

Note

Calibration and Alignment
