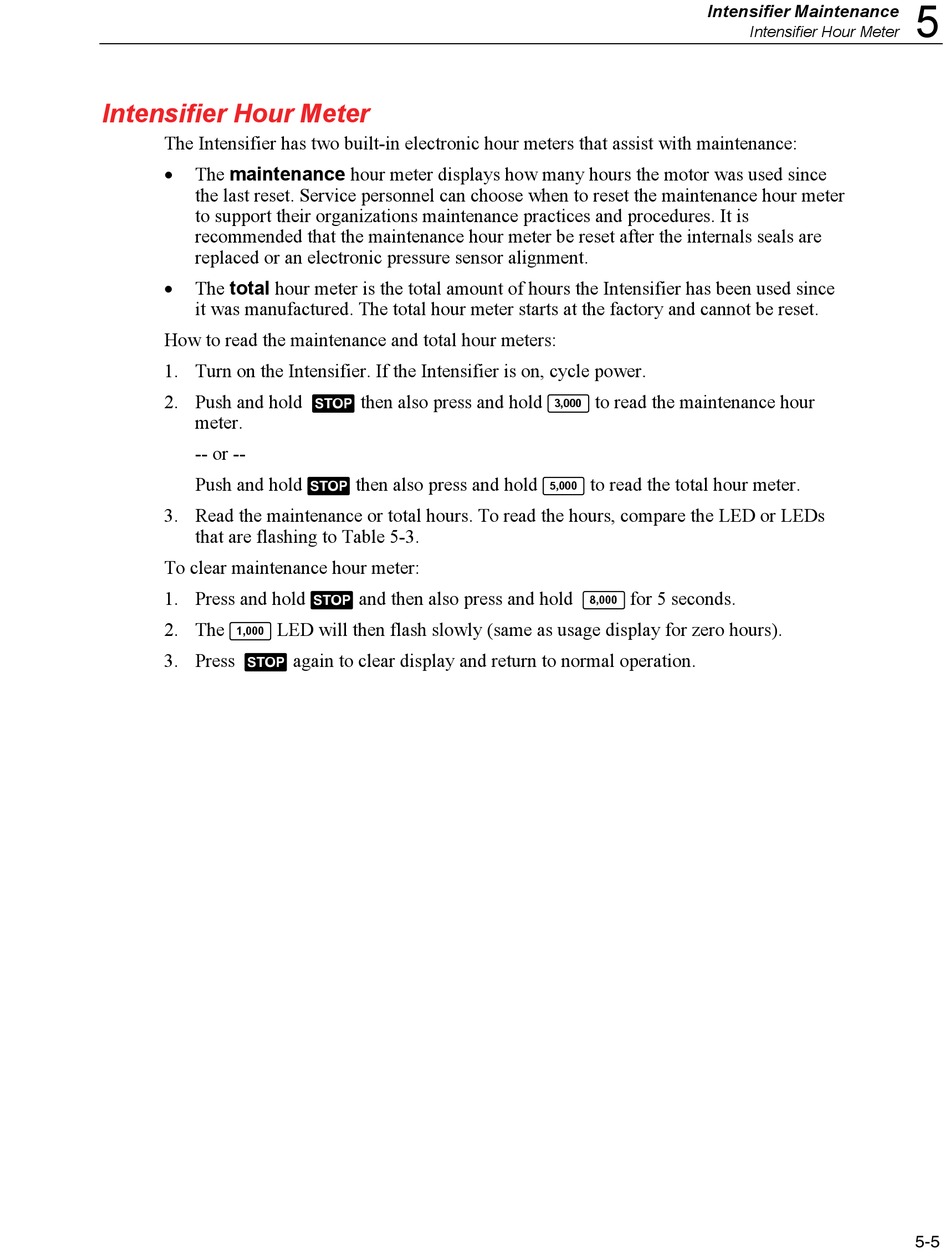

Intensifier Hour Meter

The Intensifier has two built-in electronic hour meters that assist with maintenance:
•
The maintenance hour meter displays how many hours the motor was used since
the last reset. Service personnel can choose when to reset the maintenance hour meter
to support their organizations maintenance practices and procedures. It is
recommended that the maintenance hour meter be reset after the internals seals are
replaced or an electronic pressure sensor alignment.
•
The total hour meter is the total amount of hours the Intensifier has been used since
it was manufactured. The total hour meter starts at the factory and cannot be reset.
How to read the maintenance and total hour meters:
1. Turn on the Intensifier. If the Intensifier is on, cycle power.
2. Push and hold  then also press and hold  to read the maintenance hour
meter.
-- or --
Push and hold  then also press and hold  to read the total hour meter.
3. Read the maintenance or total hours. To read the hours, compare the LED or LEDs
that are flashing to Table 5-3.
To clear maintenance hour meter:
1. Press and hold  and then also press and hold  for 5 seconds.
2. The  LED will then flash slowly (same as usage display for zero hours).
3. Press  again to clear display and return to normal operation.
