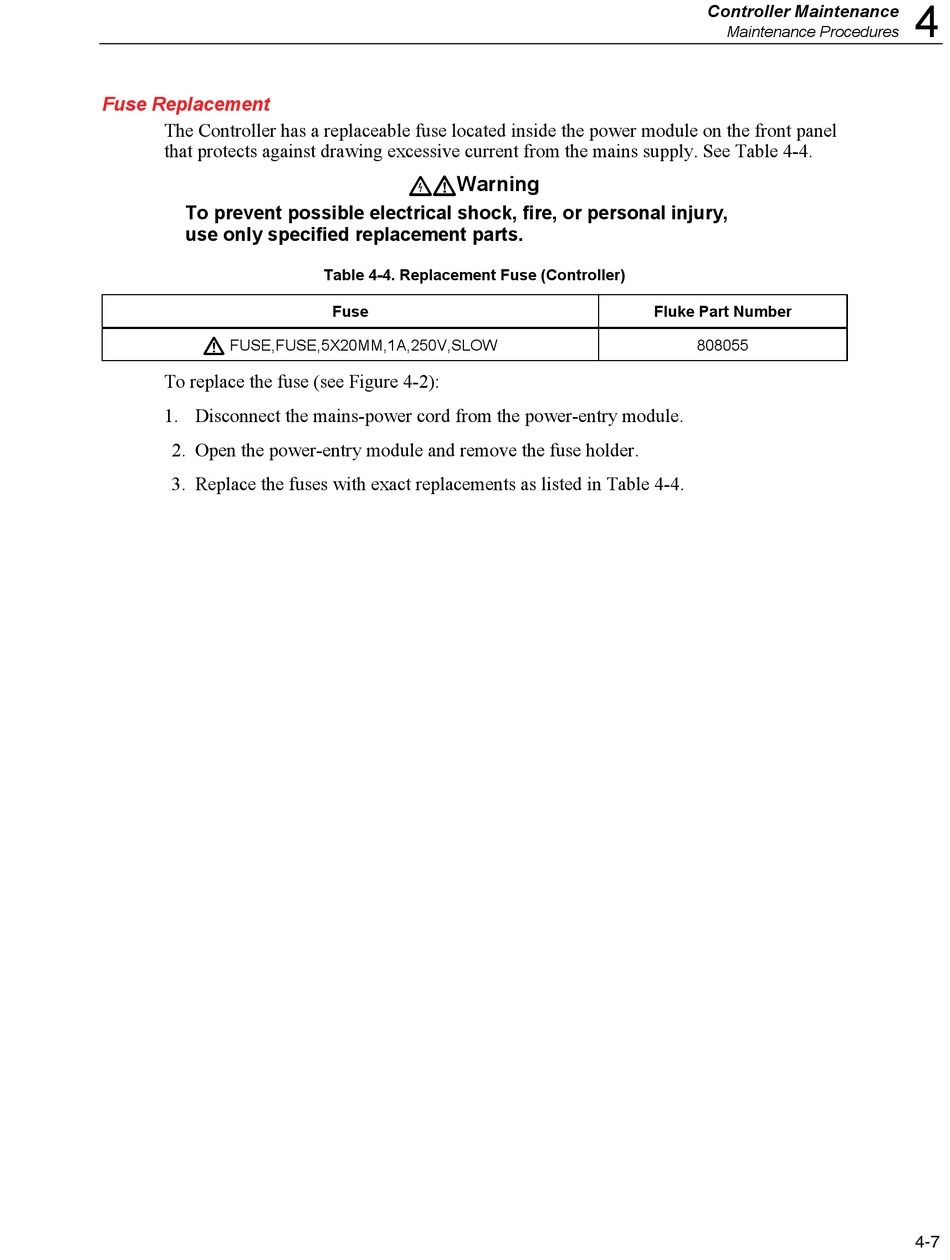

Fuse Replacement

The Controller has a replaceable fuse located inside the power module on the front panel
that protects against drawing excessive current from the mains supply. See Table 4-4.
To prevent possible electrical shock, fire, or personal injury,
use only specified replacement parts.

FUSE,FUSE,5X20MM,1A,250V,SLOW
To replace the fuse (see Figure 4-2):
1. Disconnect the mains-power cord from the power-entry module.
2. Open the power-entry module and remove the fuse holder.
3. Replace the fuses with exact replacements as listed in Table 4-4.
Warning
Table 4-4. Replacement Fuse (Controller)
Fuse
Controller Maintenance
Maintenance Procedures
Fluke Part Number
808055
