6. Install the anti-vibration device.
7. Slide the upper communications box () into the top of the control panel ().
8. Install the two flanges () that secure the lower communications box () to the
chassis. To do this, install the four screws and washers ( and ) on each flange
().
9. Use the instructions in "Chassis and Control Panel" on page 4-9 to install the control
panel and put the chassis back into the case.
1
Control panel shown seperated to help visualize the procedure.
Seperation not required for this procedure.

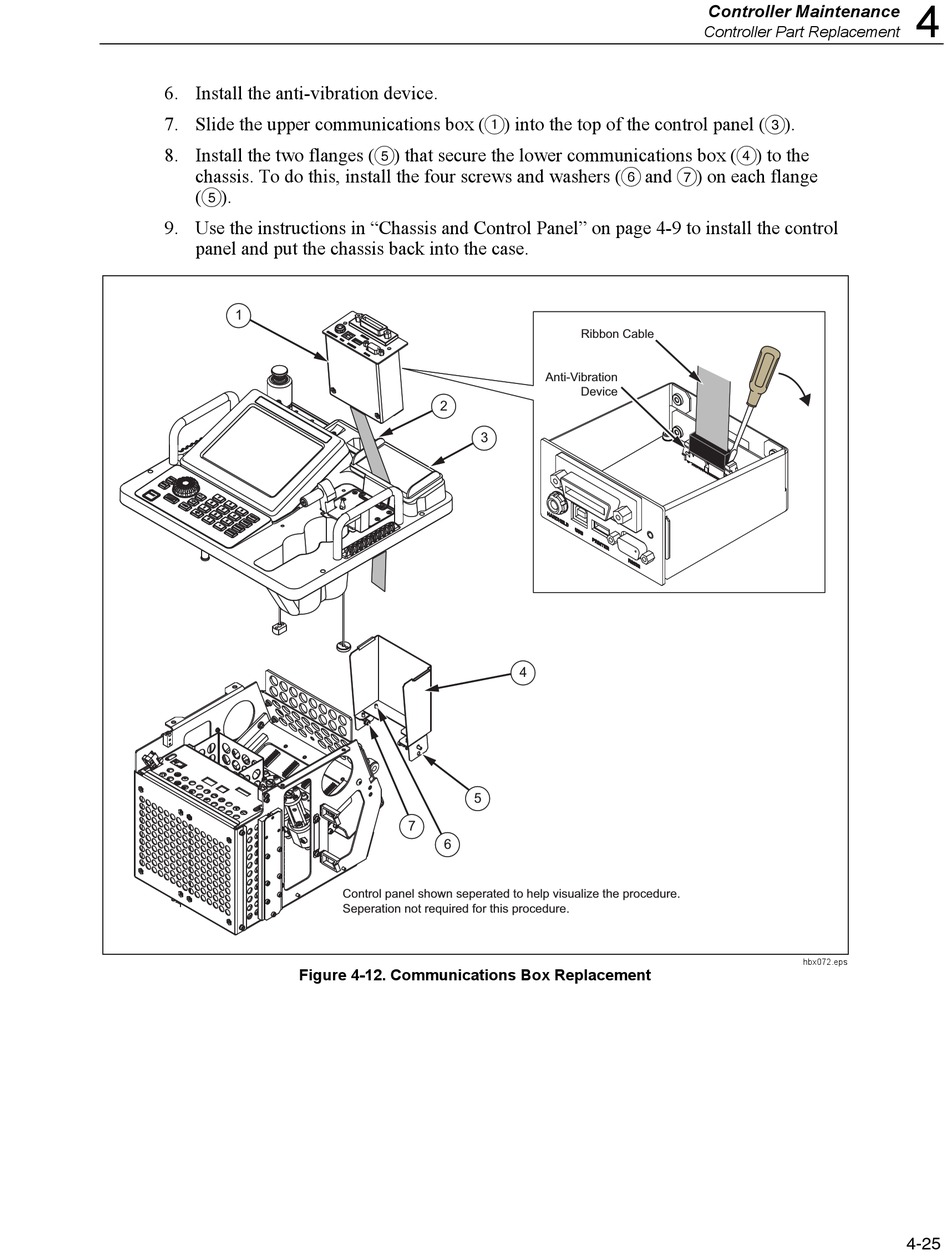

Figure 4-12. Communications Box Replacement
Ribbon Cable
Anti-Vibration
Device
2
3
4
5
7
6
