Introduction

This chapter supplies information about the Product, the manual set, safety information,
contact information, and specifications.

Product Overview

The Fluke 4322 Automated Pressure Calibrator (the Product or Calibrator) is a
transportable system including an automated controller for calibration and testing of
pressure measurement instruments (see Figure 1-1). The Calibrator can calibrate and test
analog gauges, digital gauges, pressure transducers, pressure switches, and other pressure
devices.
Pressure Controller
"the Controller"
Nitrogen
Cylinder

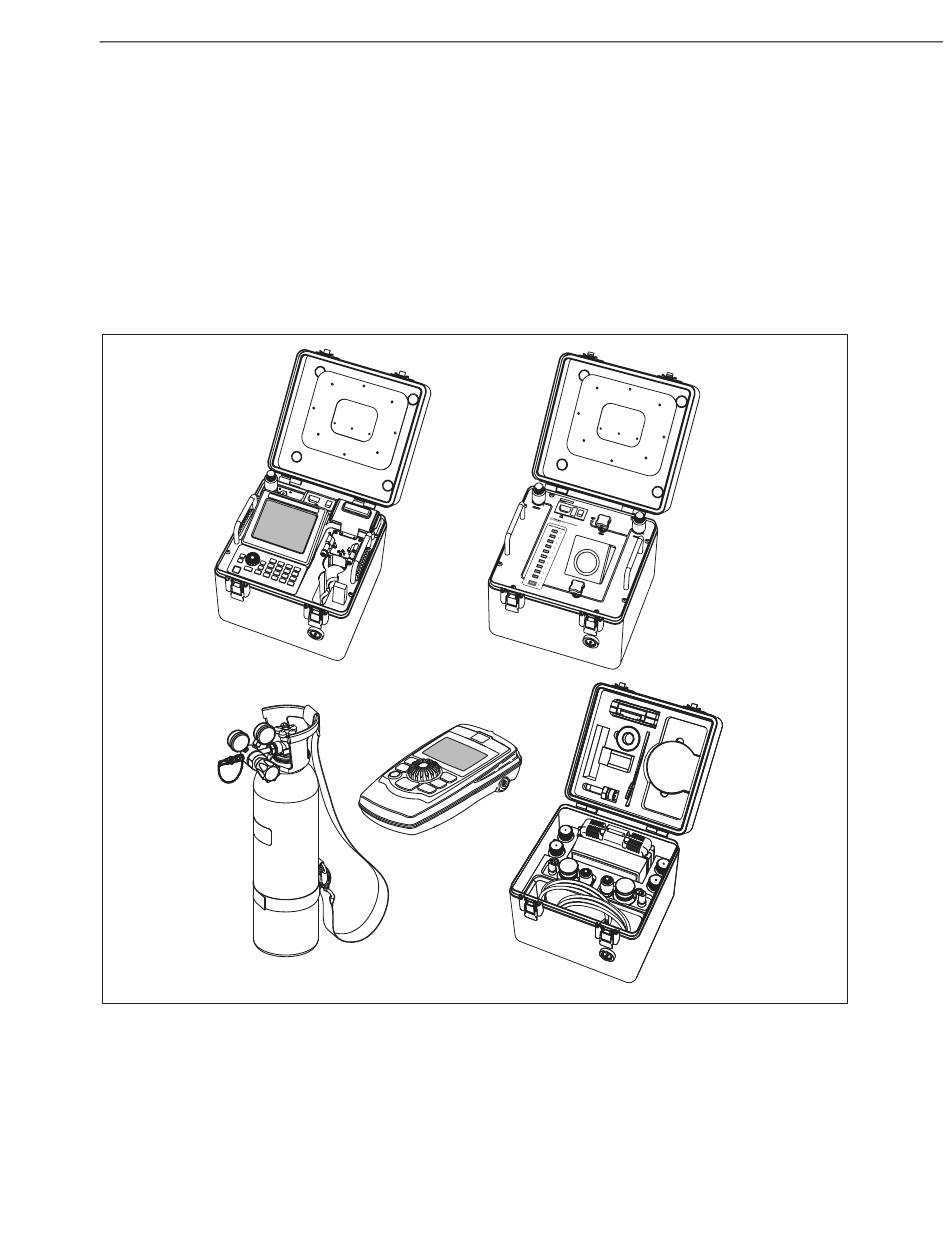

Figure 1-1. Main Components of 4322-SYS-NAVAIR Configuration of 4322 Automated Pressure
For maximum versatility and portability, the Calibrator consists of a Pressure Controller
(the Controller), a Pressure Intensifier (the Intensifier), a Nitrogen Cylinder, and an
Accessory Kit that can be used in three different configurations. Determination of which
configuration to use depends on how much pressure is necessary to complete the
calibration.
Pressure Intensifier
"the Intensifier"
Accessory
Handheld
Kit
Control
Calibrator
