Adapter Kit Assembly - Fluke Calibration 4322-SYS-NAVAIR Service Manual

Item
H1 FITTING, HM4 EQUIVALENT
H2 FITTING, HF4 EQUIVALENT
H3 FITTING, 1/8 MALE PIPE THREAD (NPT)
H4 FITTING, 1/4 MALE PIPE THREAD (NPT)
H5 FITTING, 1/2 MALE PIPE THREAD (NPT)
H6 FITTING, 1/8 FEMALE PIPE THREAD (NPT)
H7 FITTING, 1/4 FEMALE PIPE THREAD (NPT)
H8 FITTING, 1/2 FEMALE PIPE THREAD(NPT)
H9 FITTING, AN4 MALE
H10 FITTING, AN6 MALE
H11 FITTING, AN4 FEMALE
H12 FITTING, AN6 FEMALE
H13 FITTING, 1/8 ID HOSE BARB
H14 FITTING, 1/4 ID HOSE BARB
H6
H3
H7
H4
H5
H8
Table 7-3. Adapter Kit Assembly
Description
H2

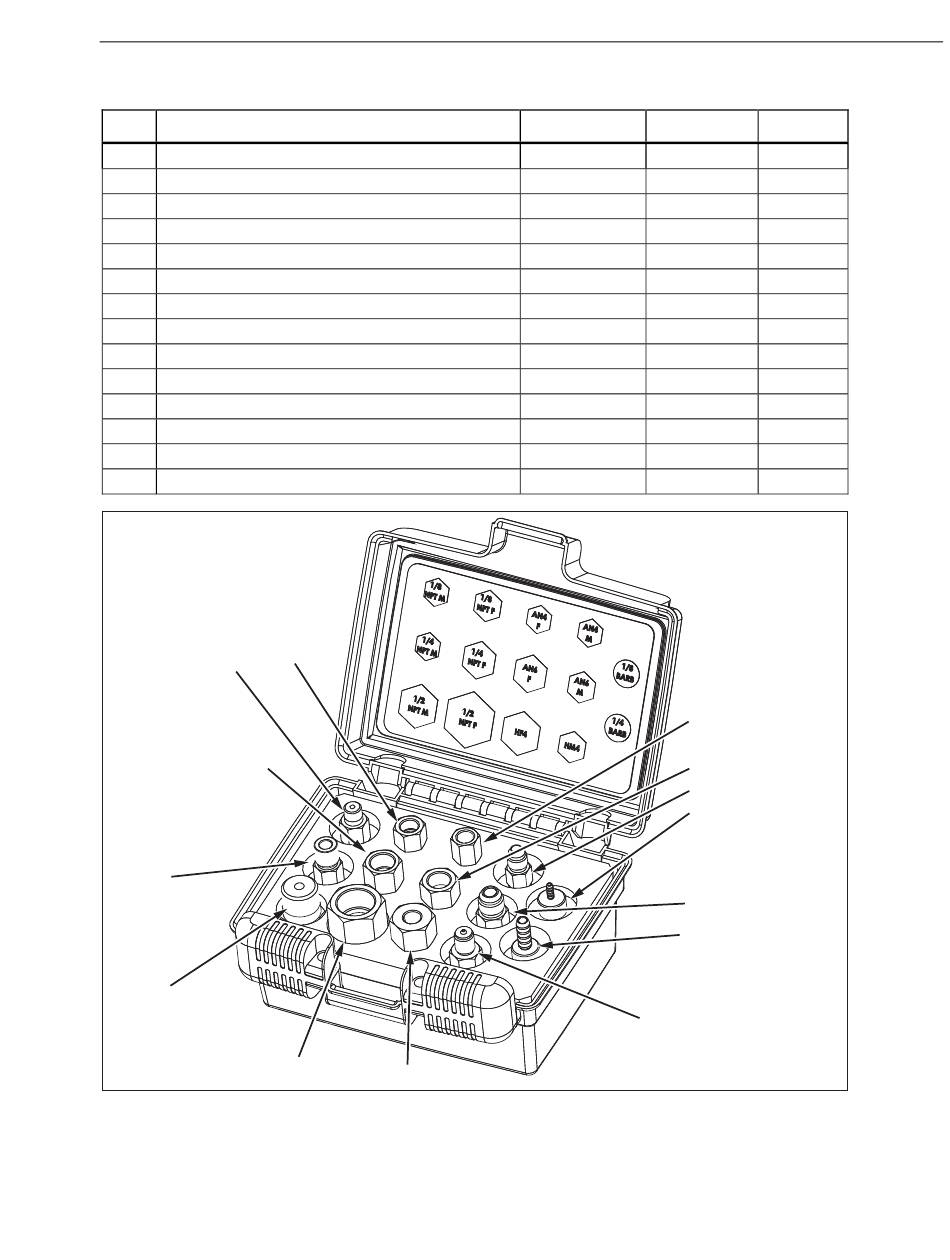

Figure 7-3. Adapters Kit Assembly
List of Replaceable Parts
Part Number Quantity
4150810 1
4150822 1
4150831 1
4150846 1
4150854 1
4150868 1
4150879 1
4150887 1
4150893 1
4150902 1
4150916 1
4150925 1
4150933 1
4150940 1
H11
H12
H9
H13
H10
H14
H1
Calibrator Final Assembly
Notes
hbx061.eps
7
7-7
