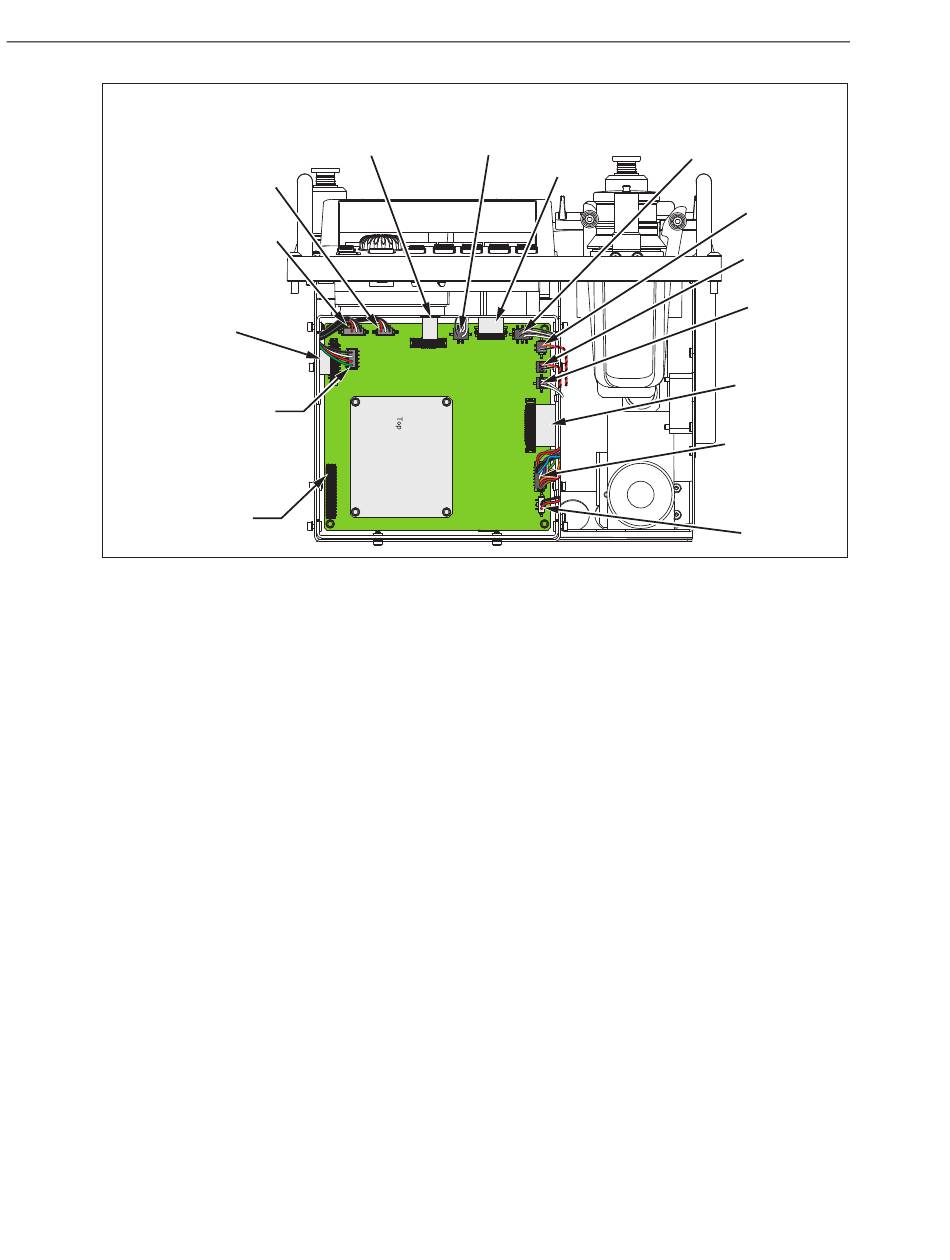

View of the Electronics Box Wiring Connections
Keypad (J16)
Display Backlight (J7)
V5,6,7 Clippard Valves (J10)
Display (J9)
Hinge Switch (J5)
VH1 (J4)
Controller Main Harness (J14)
VH2 (J6)
VH3 (J8)
Backplane PCA (J13)
Comm. Box (J11)
Barometer (J12)
Internal Motor (J1)
Not Used
Fan Cable (J3)
hbx095.eps
Figure 4-5. Electronics Box Cables
