7. Select . This starts the calibration procedure.

Module Alignment Procedure

This procedure supplies instructions on how to perform the alignment procedure on the
G70M, G10M, G700K, A150K, and barometer modules. As mentioned in the
Fundamentals section, Alignment is a performance verification procedure that tests to see
if the module is within tolerance. If it is out of tolerance, the deviation is automatically
calculated and shown on the screen at the end of the test. At this time, the operator can
"activate" the corrections to bring the module back into tolerance.
1. Select the Advanced Operating mode on the startup screen.
2. Select .
3. Select Calibration to edit the Calibration menu.
4. Select Run Calibration .
5. Select the desired module as shown in Figure 3-4.
3-8

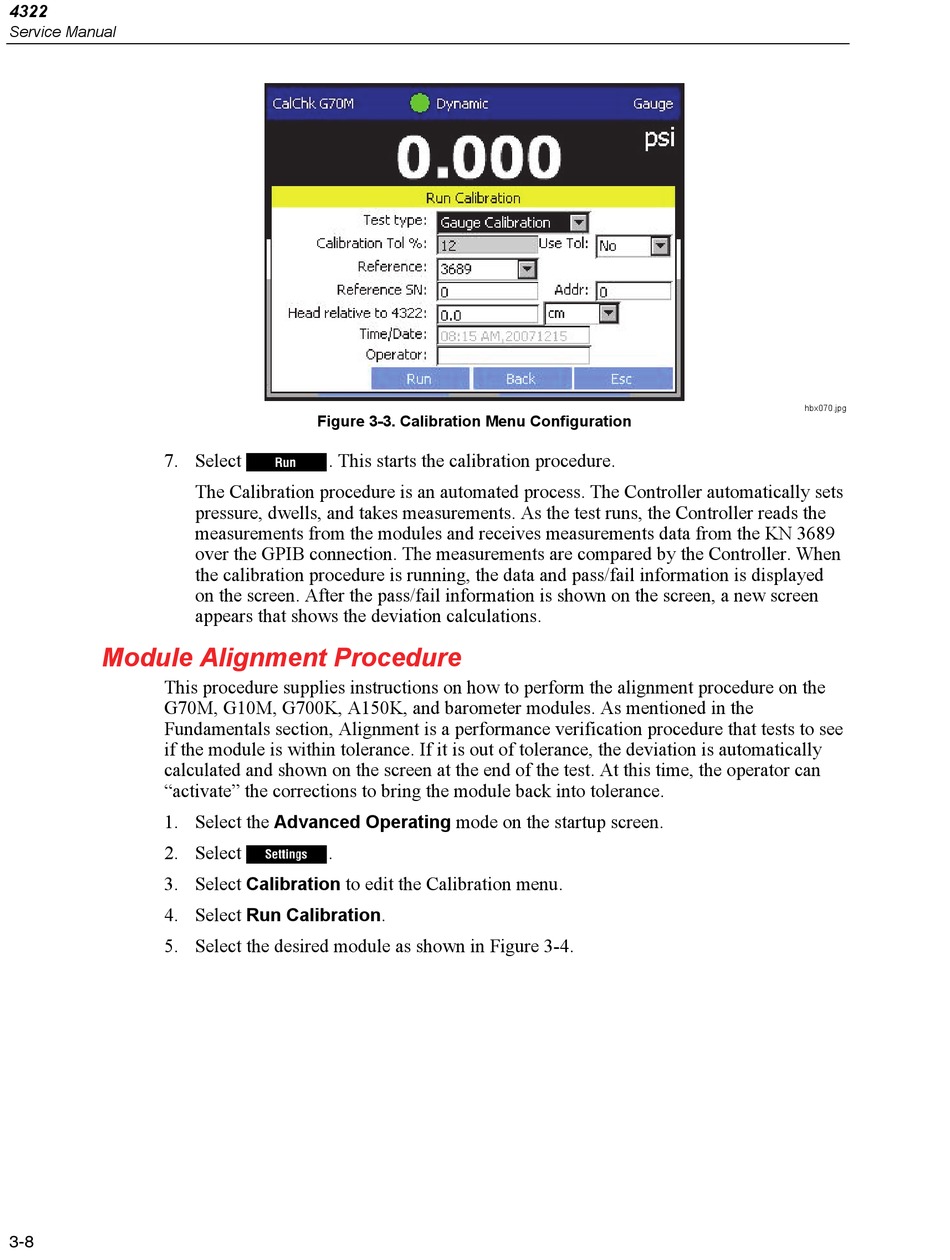

Figure 3-3. Calibration Menu Configuration
The Calibration procedure is an automated process. The Controller automatically sets
pressure, dwells, and takes measurements. As the test runs, the Controller reads the
measurements from the modules and receives measurements data from the KN 3689
over the GPIB connection. The measurements are compared by the Controller. When
the calibration procedure is running, the data and pass/fail information is displayed
on the screen. After the pass/fail information is shown on the screen, a new screen
appears that shows the deviation calculations.
