6. To replace the roller (), refer to Figure 5-12:
5-28
1
2
4

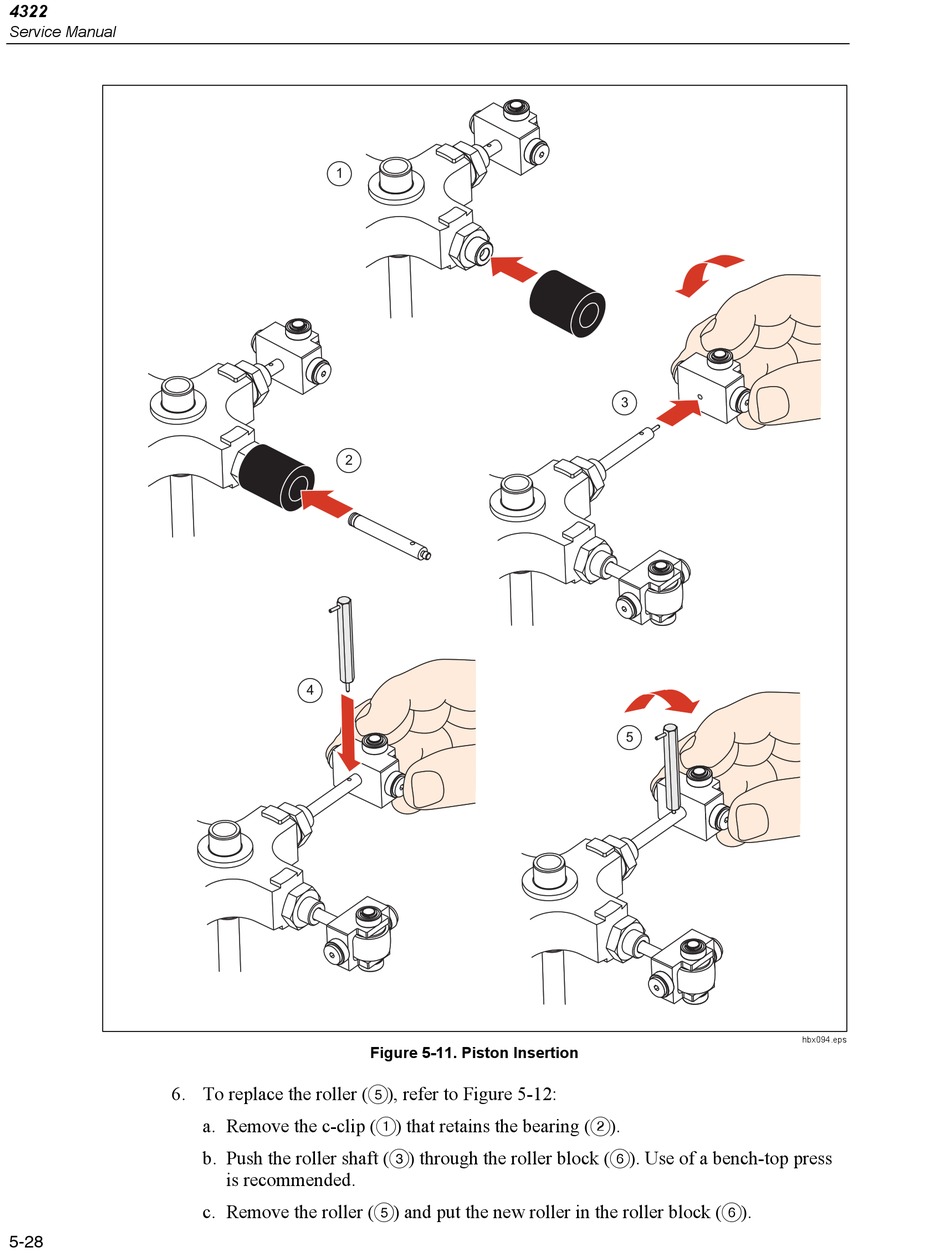

Figure 5-11. Piston Insertion
a. Remove the c-clip () that retains the bearing ().
b. Push the roller shaft () through the roller block (). Use of a bench-top press
is recommended.
c. Remove the roller () and put the new roller in the roller block ().
3
5
hbx094.eps
