Table 7-16. A2/A3 Cam Plate and Planetary Gears Assembly
Item
H1 LOW PROFILE SCREW
H2 BEARING PIN
H3 WAVE SPRING
H4 BEARING
H5 INTERNAL RETAINING RING
H6 C-CLIP
H7 CAM MOUNT PLATE
H8 PLANET GEAR
H7
H8

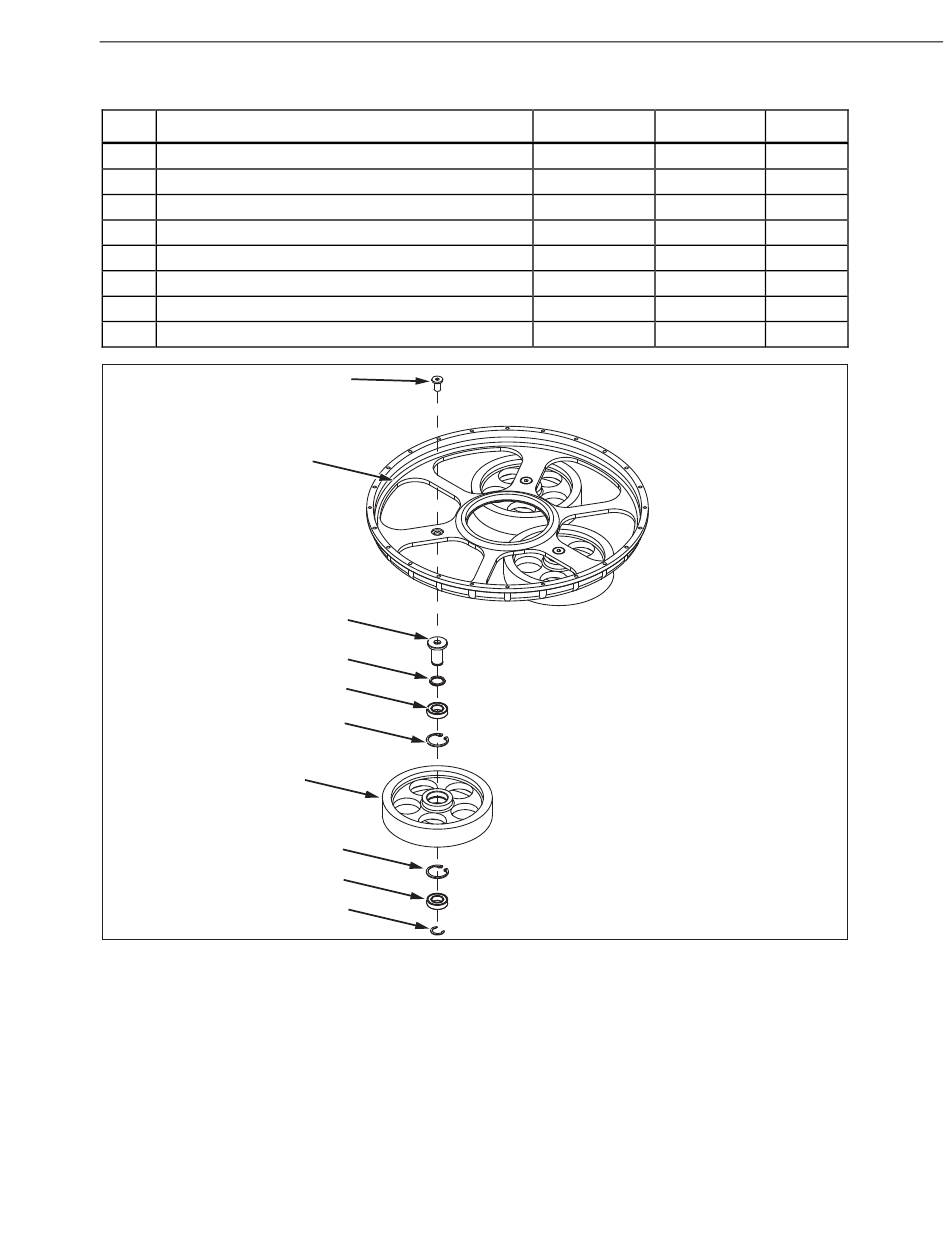

Figure 7-15. A2/A3 Cam Plate and Planetary Gears Assembly
Description
H1
H2
H3
H4
H5
H5
H4
H6
List of Replaceable Parts
Intensifier Final Assembly
Part Number Quantity
4212460 3
4140031 3
4212650 3
4212505 6
4216922 6
4219005 3
4136182 1
4136846 3
7
Notes
hbx046.eps
