Operating Guide | VLT® AutomationDrive FC 302
Status
799RPM
Auto Remote
Hand Local
Off
1
2
3
1 Operating mode. Refer to
Mode.
3 Operation status. Refer to
Status.

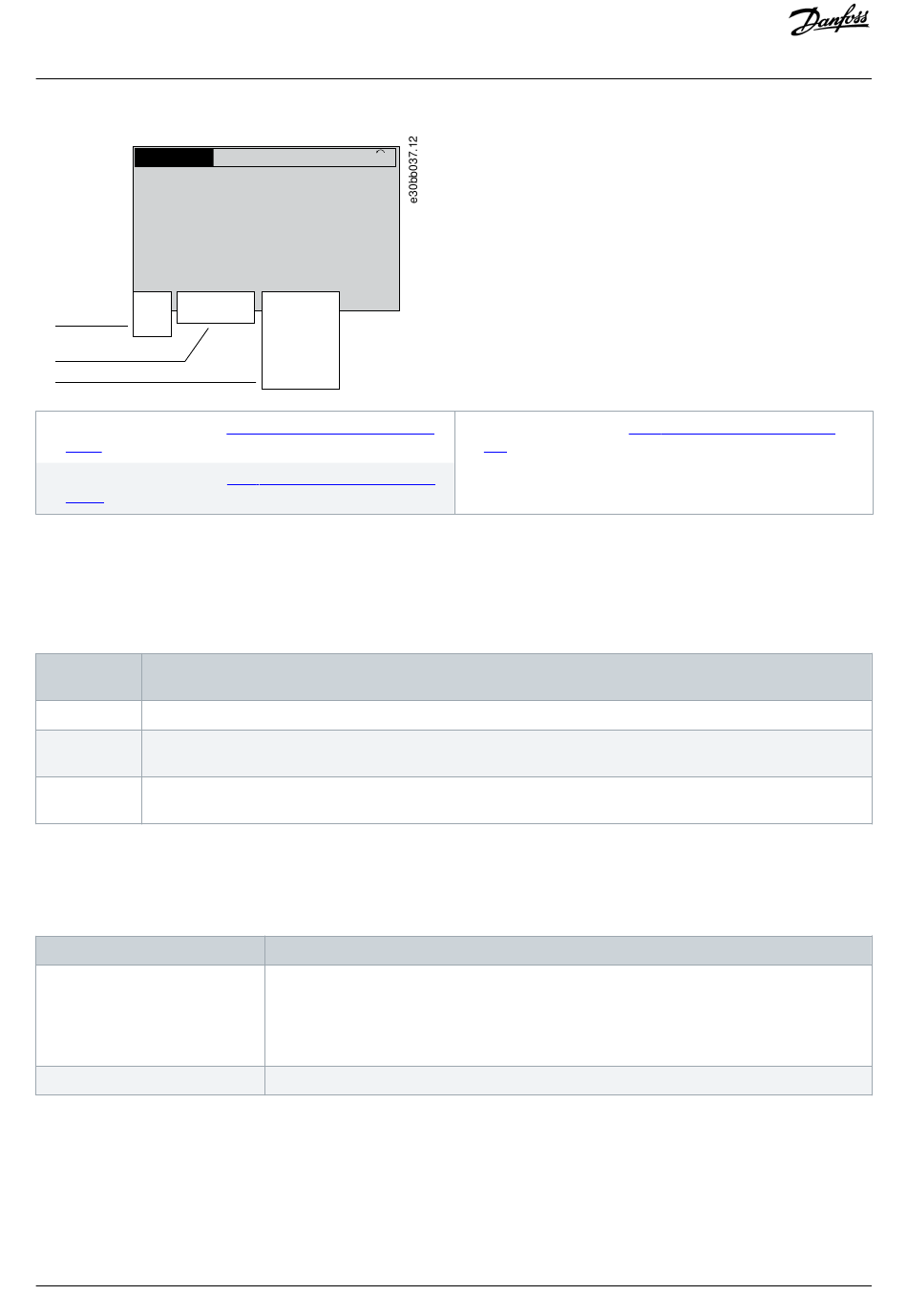

Illustration 49: Status Display

8.3.2 Status Messages - Operating Mode

Table 37: Operating Mode
Operating Description
mode
Off The drive does not react to any control signal until [Auto On] or [Hand On] is pressed.
Auto The drive requires external commands to execute functions. The start/stop commands are sent via the control ter-
minals and/or the serial communication.
Hand The navigation keys on the LCP can be used to control the drive. Stop commands, reset, reversing, DC brake, and
other signals applied to the control terminals override local control.

8.3.3 Status Messages - Reference Site

Table 38: Reference Site
Reference site
Remote
Local
Danfoss A/S © 2019.12
1(1)
7.83A 36.4kW
0.000
53.2%
Ramping
Stop
Running
Jogging
.
.
.
Stand-by
8.3.2 Status Messages - Operating
8.3.4 Status Messages - Operation
Description
The speed reference is given from:
• External signals.
• Serial communication.
• Internal preset references.
The drive uses reference values from the LCP.
2 Reference site. Refer to 8.3.3 Status Messages - Reference
Site.
AQ275652476278en-000101 / 130R0709| 99
Maintenance, Diagnostics, and
Troubleshooting
