Operating Guide | VLT® AutomationDrive FC 302
On
Warn.
Alarm

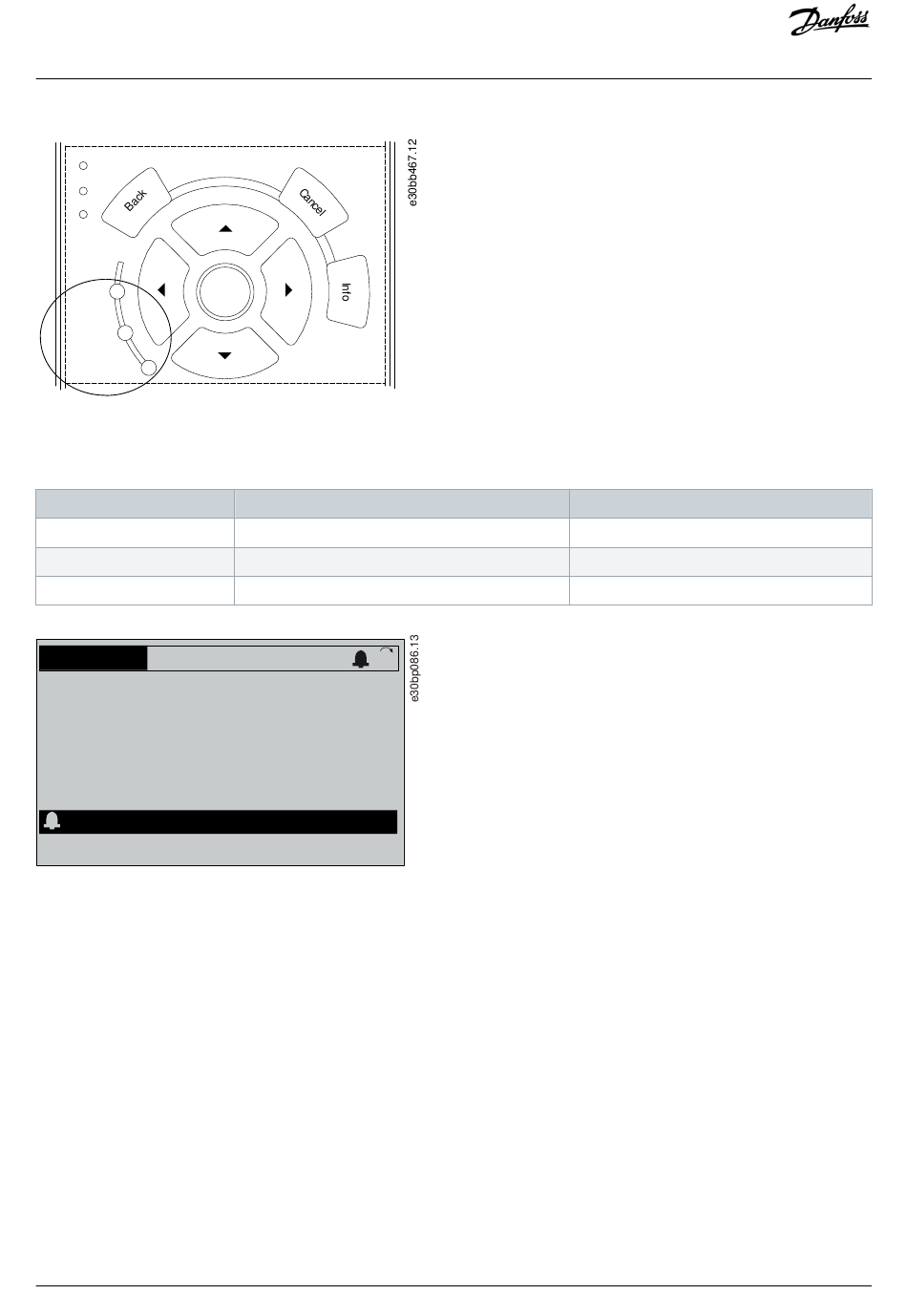

Illustration 50: Status Indicator Lights
Table 40: Fault Types
Type of fault
Warning
Alarm
Trip lock
Status
0.0Hz
Earth Fault [A14]
Auto Remote Trip
Illustration 51: Alarm Example
8.4.2 WARNING 1, 10 Volts Low
Cause
The control card voltage is less than 10 V from terminal 50. Remove some of the load from terminal 50, as the 10 V supply is
overloaded. Maximum 15 mA or minimum 590 Ω.
A short circuit in a connected potentiometer or incorrect wiring of the potentiometer can cause this condition.
Troubleshooting
• Remove the wiring from terminal 50. If the warning clears, the problem is with the wiring. If the warning does not clear, replace the
control card.
Danfoss A/S © 2019.12
OK
Warning indicator light
On
Off
On
1(1)
0.000kW
0.0Hz
0
Alarm indicator light
Off
On (flashing)
On (flashing)
0.00A
Maintenance, Diagnostics, and
Troubleshooting
AQ275652476278en-000101 / 130R0709| 103
