E2H Exterior Dimensions - Danfoss VLT AutomationDrive FC 302 Operating Manual

315-710 kw, enclosure sizes e1h-e4h
Hide thumbs Also See for VLT AutomationDrive FC 302:
Table of Contents

Advertisement

Specifications
Operating Guide | VLT® AutomationDrive FC 302

9.8.2 E2h Exterior Dimensions

97
3X
13 (0.5)
(3.8)
2043
2002
(80.4)
(78.8)
1553
(61.1)
1393
(54.9)
912
(35.9)
394
(15.5)
698
(27.5)

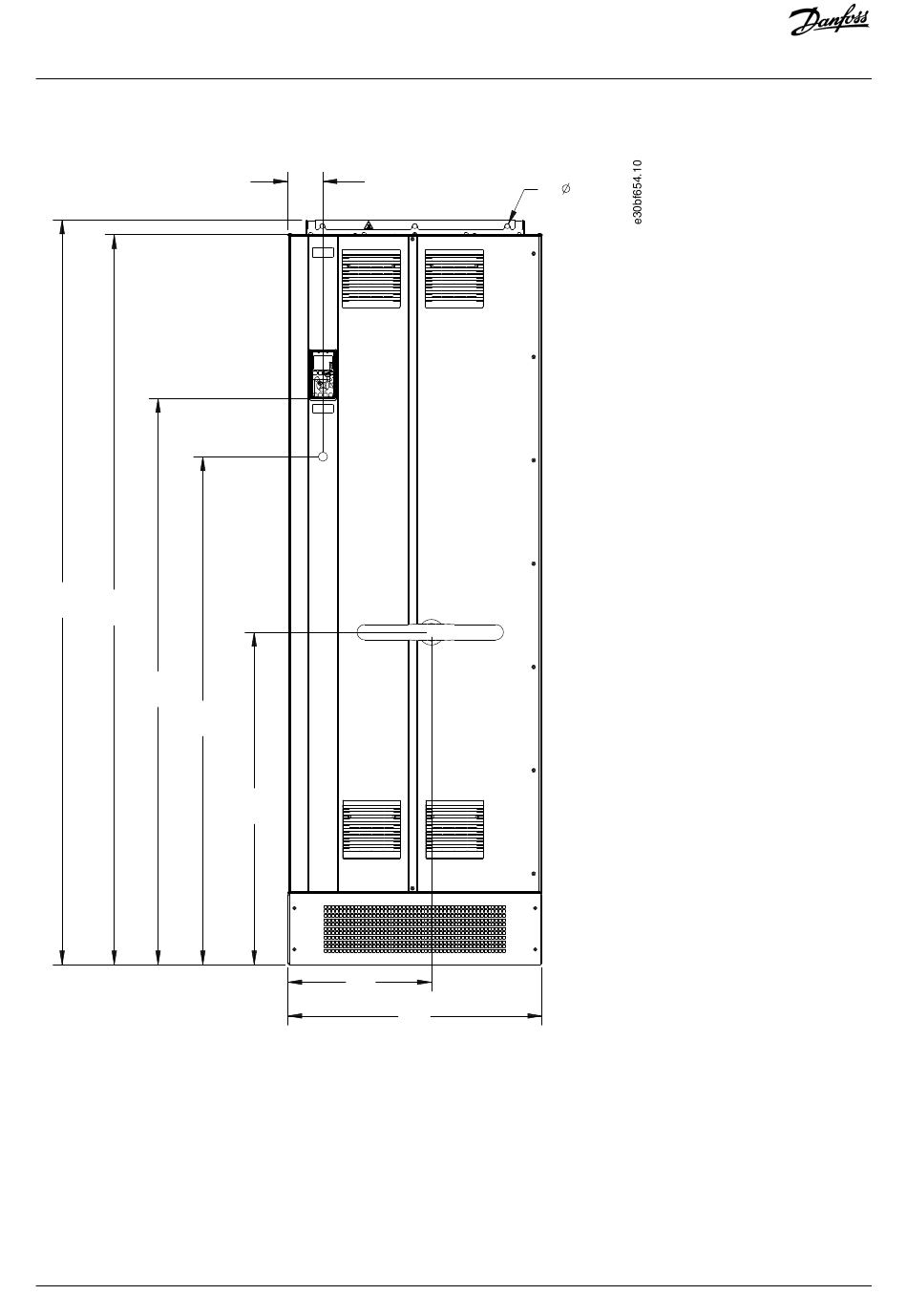

Illustration 57:
Front View of E2h
Danfoss A/S © 2019.12
AQ275652476278en-000101 / 130R0709| 147
