9.9 Enclosure Airflow

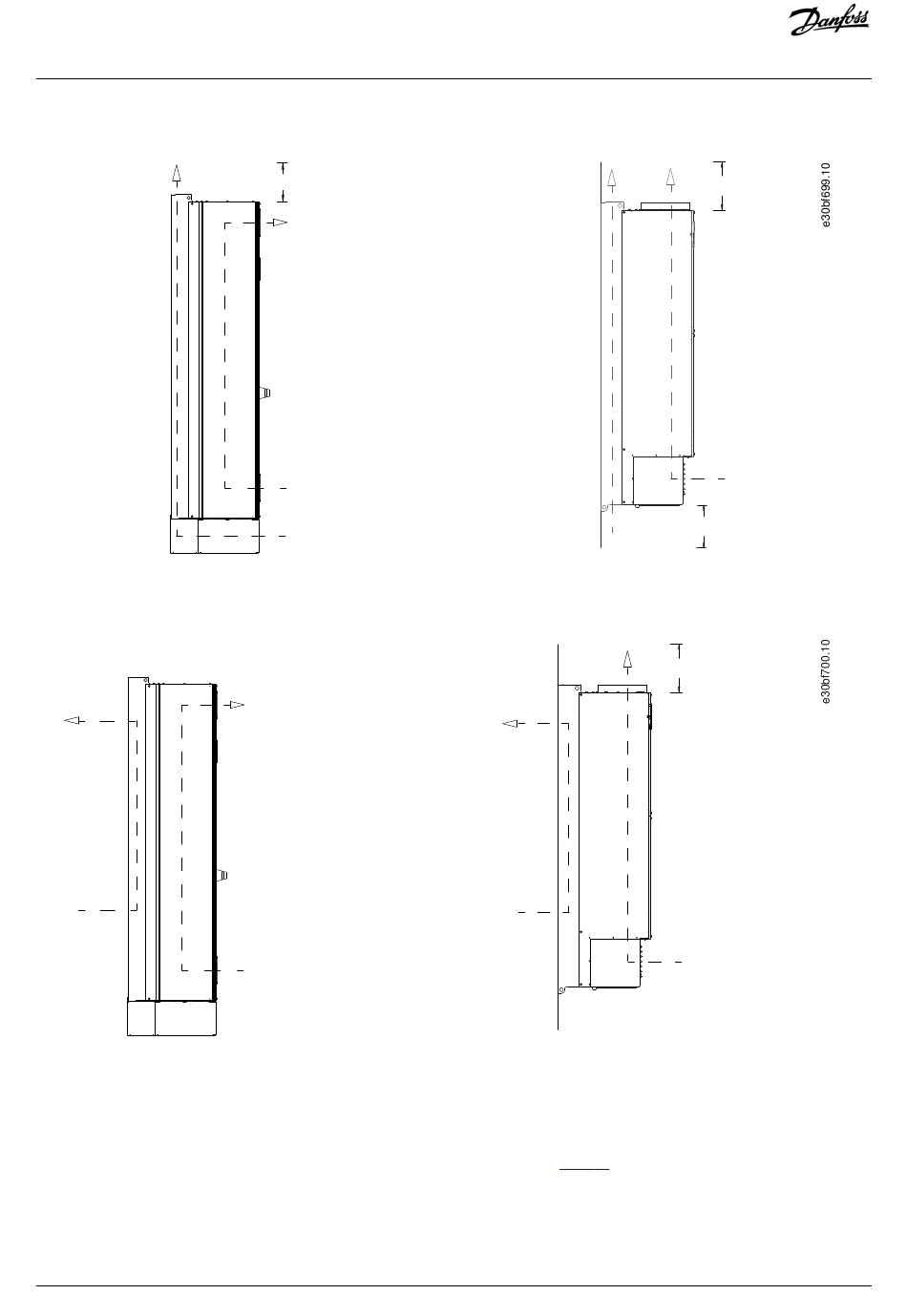

Illustration 69: Airflow for E1h/E2h (Left) and E3h/E4h (Right)
Illustration 70: Airflow Using Back-wall Cooling Kits on E1h/E2h (Left) and E3h/E4h (Right)

9.10 Fastener Torque Ratings

Apply the correct torque when tightening fasteners in the locations that are listed in
fastening an electrical connection results in a bad electrical connection. To ensure correct torque, use a torque wrench.
Danfoss A/S © 2019.12
225 mm (8.9 in)
225 mm (8.9 in)
225 mm (8.9 in)
225 mm (8.9 in)
table 49. Too low or too high torque when
