7.1.7 Wiring Configuration: Start/Stop

Table 28: Start/Stop Command with Safe Torque Off Option
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
Speed
Start/Stop (18)

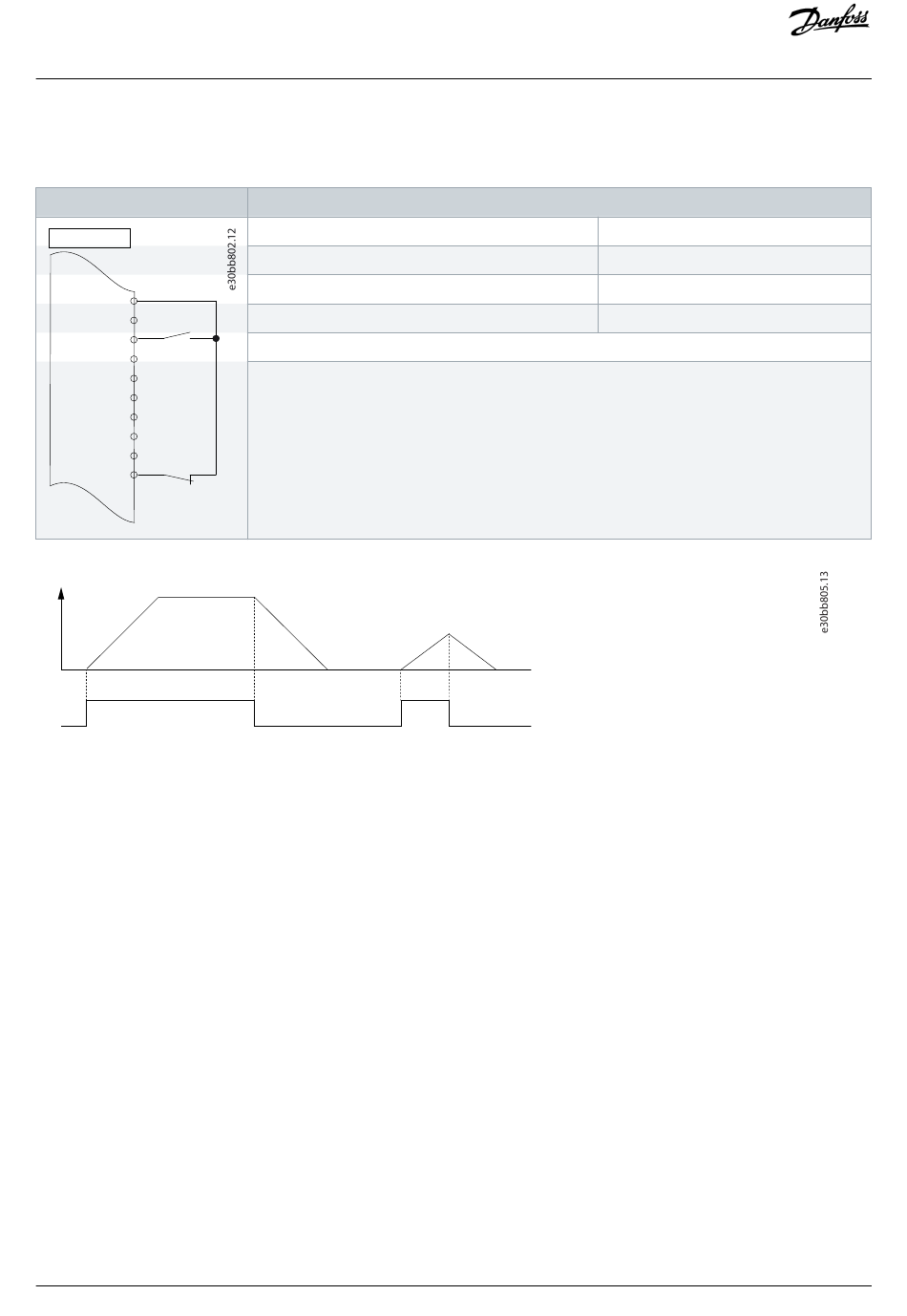

Illustration 42: Start/Stop Command with Safe Torque Off
Danfoss A/S © 2019.12
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-19 Terminal 37 Safe Stop
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Wiring Configuration Examples
Setting
[Start]*
[0] No operation
[1] Safe Stop Alarm
