Example:
+ REGEN 82
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (14FT-LB)
U/T1 96 V/T2 97

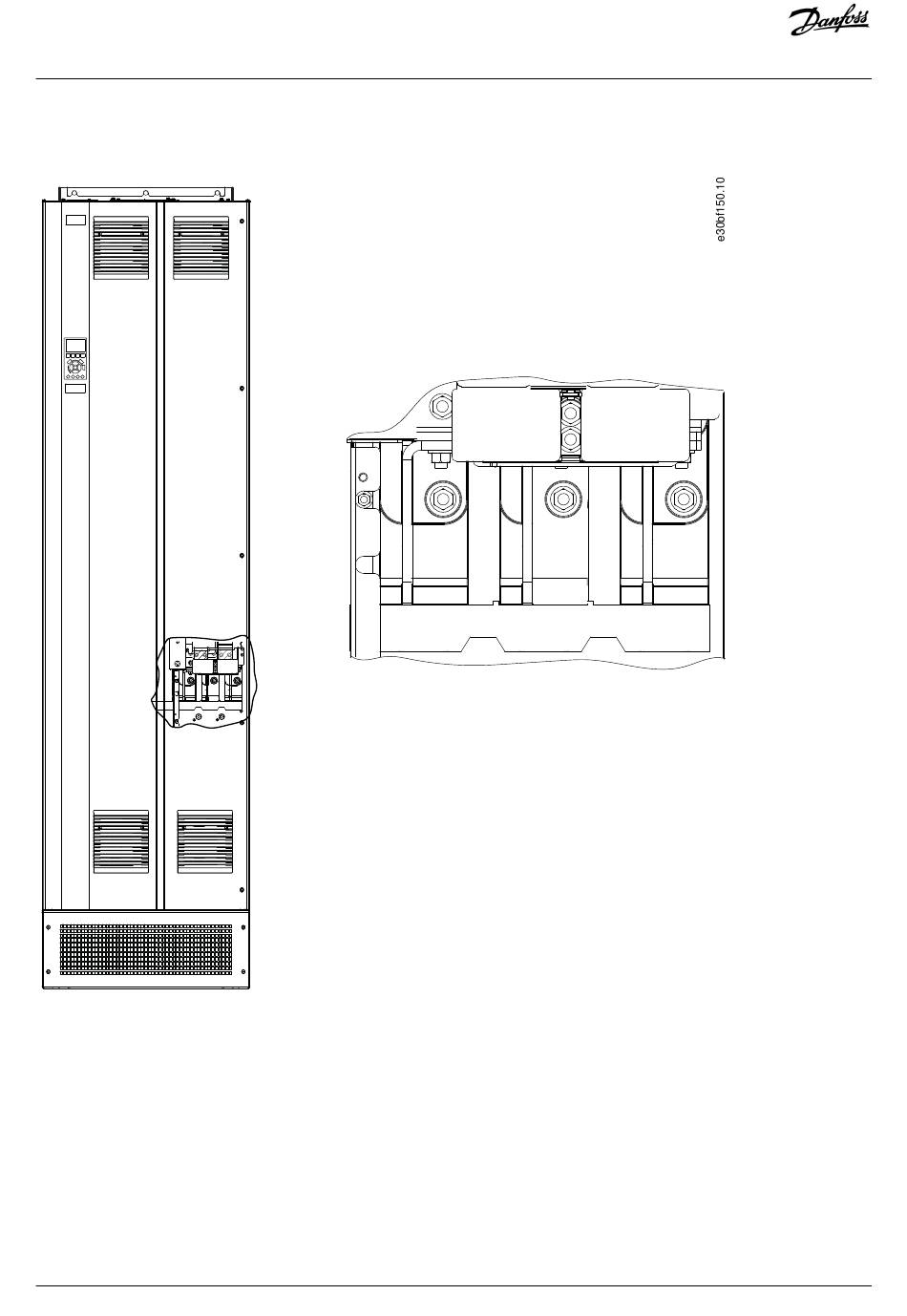

Illustration 19: AC Motor Terminals (E1h shown).

5.5 Connecting the AC Mains

Context:
• Size the wiring according to the input current of the drive. For maximum wire sizes, see the Electrical Data section.
• Comply with local and national electrical codes for cable sizes.
42 | Danfoss A/S © 2019.12
- REGEN 83
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
W/T3 98
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
U/T1 96 V/T2 97
Electrical Installation
W/T3 98
