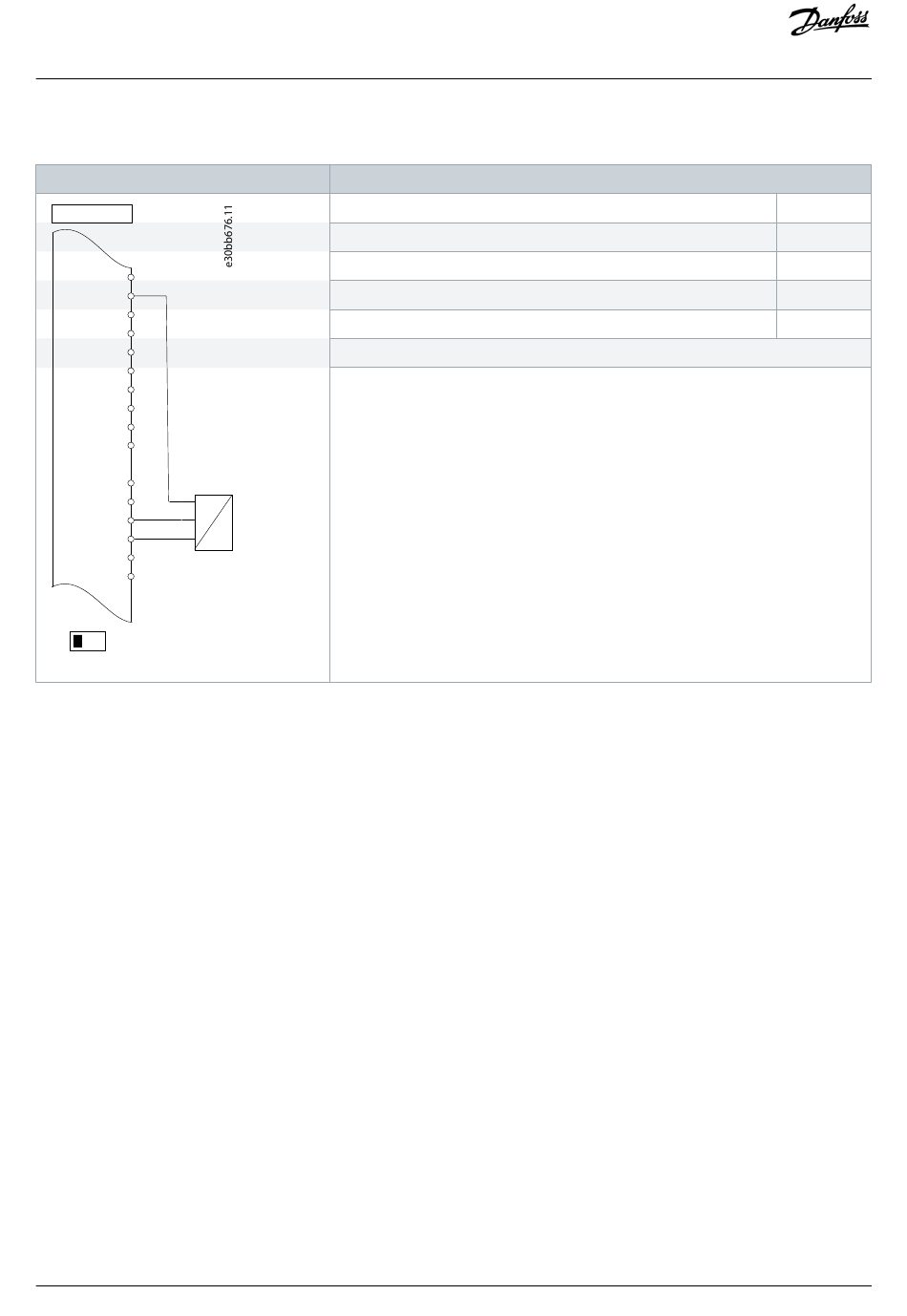

Table 23: Analog Voltage Feedback Transducer (3-wire)
Drive
+24 V 12
+24 V 13
D IN
18
D IN 19
COM 20
D IN 27
D IN 29
D IN
32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
0-10 V
COM
39
U - I
A54
80 | Danfoss A/S © 2019.12
Parameters
Function
Parameter 6-20 Terminal 54 Low Voltage
Parameter 6-21 Terminal 54 High Voltage
Parameter 6-24 Terminal 54 Low Ref./Feedb. value
Parameter 6-25 Terminal 54 High Ref./Feedb. Value
*=Default value
Notes/comments:
D IN 37 is an option.
Wiring Configuration Examples
Setting
0.07 V*
10 V*
0*
50*
