Electrical Installation
Operating Guide | VLT® AutomationDrive FC 302
Example:
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
R/L1 91
S/L2 92
T/L3 93
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
R/L1 91
S/L2 92
T/L3 93

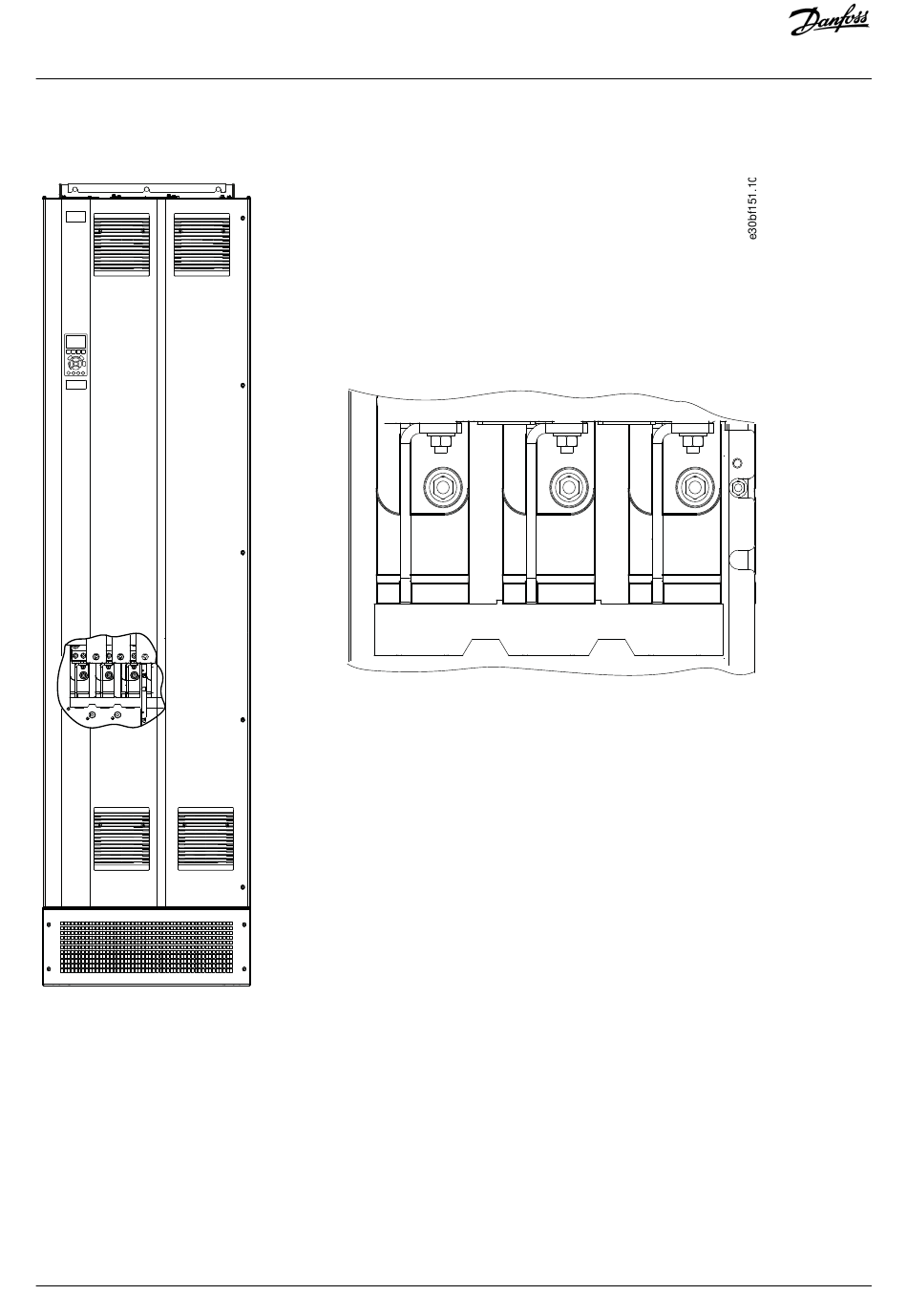

Illustration 20:
AC Mains Terminals (E1h shown).
44 | Danfoss A/S © 2019.12
AQ275652476278en-000101 / 130R0709
