Operating Guide | VLT® AutomationDrive FC 302

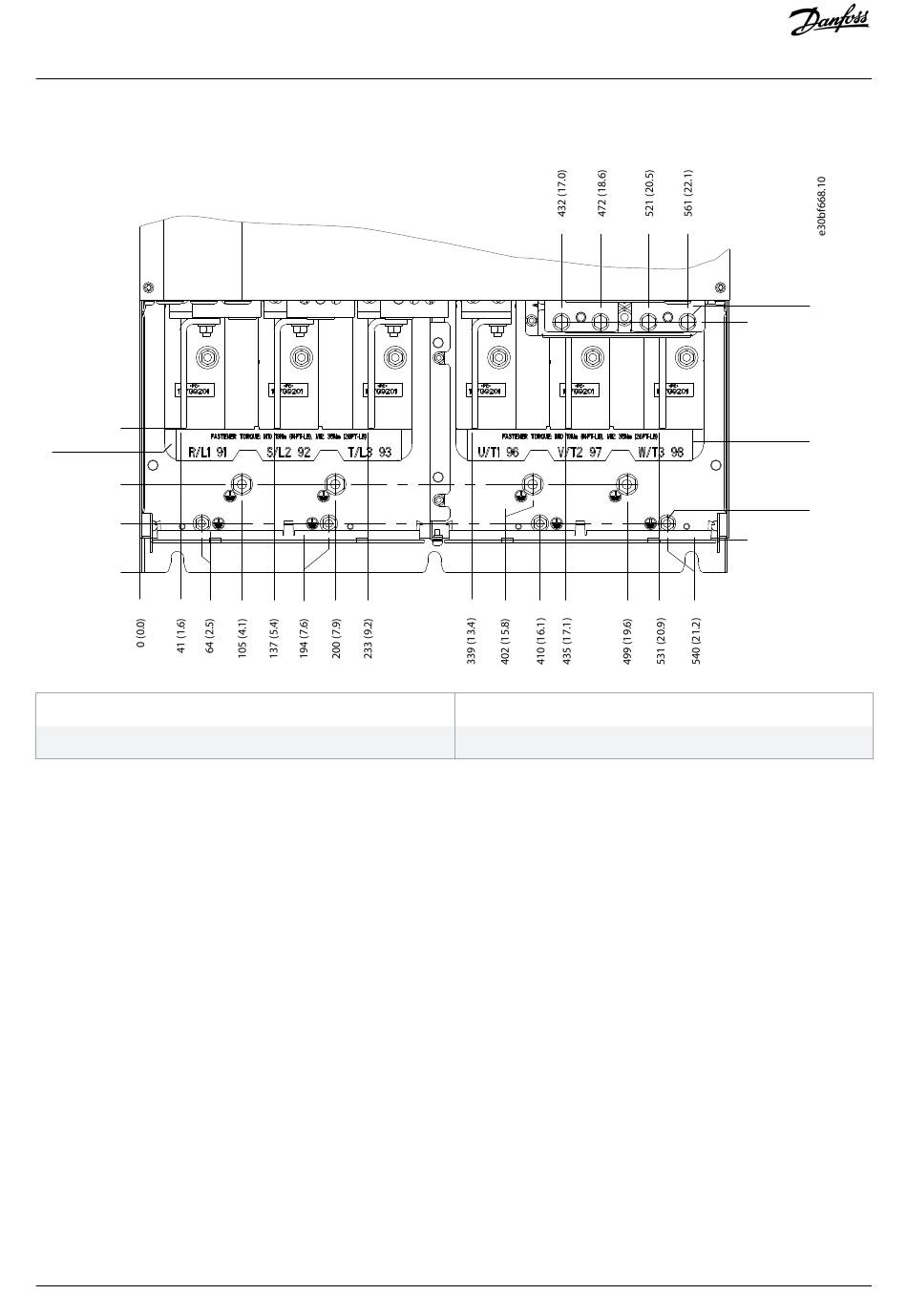

5.10 E4h Terminal Dimensions
6X 148 (5.8)
1
90 (3.5)
50 (2.0)
0 (0.0)
1 Mains terminals
3 Motor terminals
Illustration 29:
E4h Terminal Dimensions (Front View)
54 | Danfoss A/S © 2019.12
2 Brake or regen terminals
4 Ground terminals, M8 and M10 nuts
Electrical Installation
2
256 (10.1)
3
4
33 (1.3)
AQ275652476278en-000101 / 130R0709
