• Start/stop via terminal 18 (Parameter 5-10 Terminal 18 Digital Input [8] Start).
• Quick stop via terminal 27 (Parameter 5-12 Terminal 27 Digital Input [2] Coasting Stop, Inverse).
• Terminal 29 output (Parameter 5-02 Terminal 29 Mode [1] Terminal 29 Mode Output and parameter 5-31 Terminal 29 Digital Output
[27] Torque limit & stop).
• Relay output [0] (Relay 1) (Parameter 5-40 Function Relay [32] Mechanical Brake Control).
12 13 18 19 27
Start
-
External
24 V DC
+
Mechanical brake connection

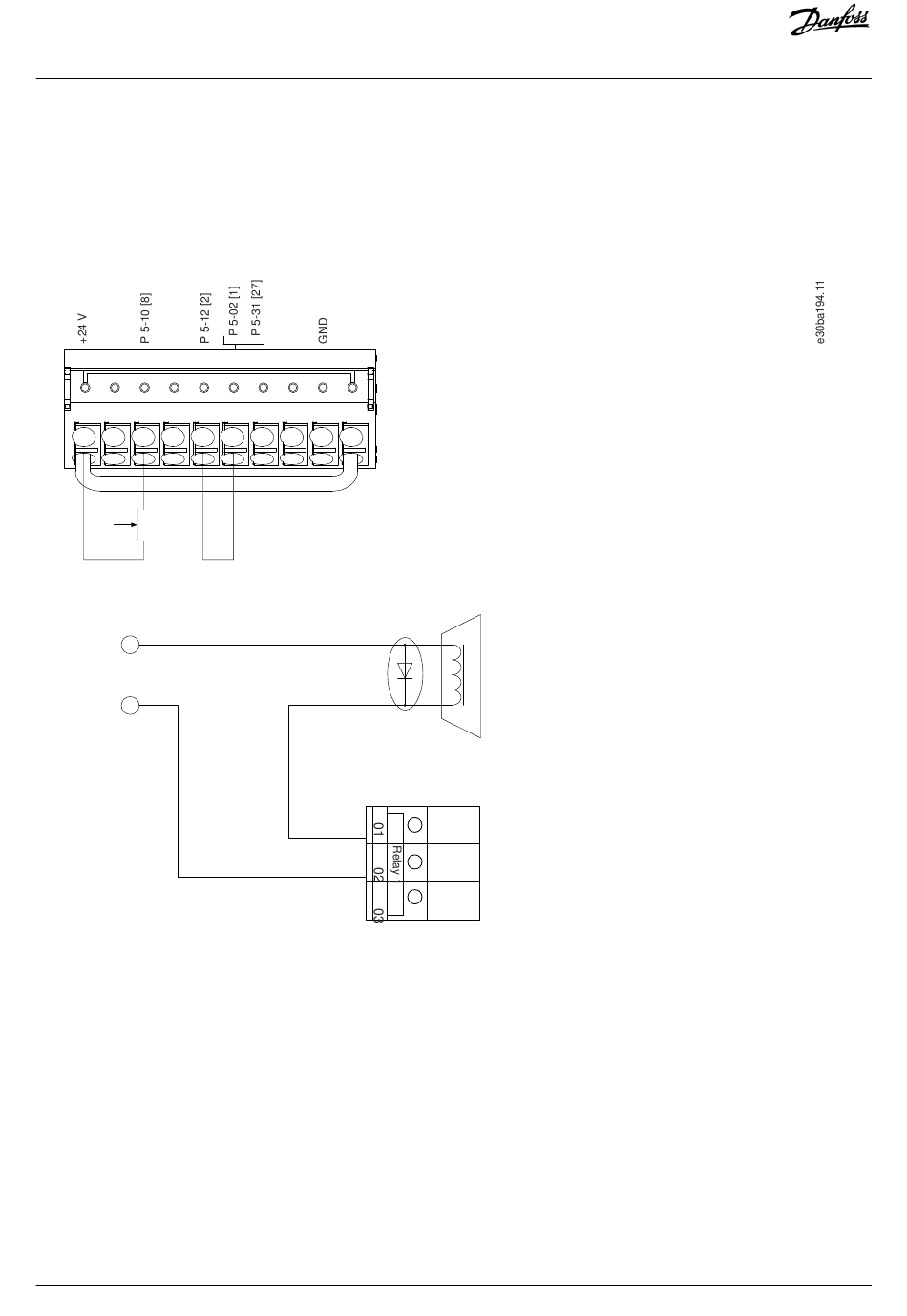

Illustration 47: Wire Configuration for Torque and Stop Limit
96 | Danfoss A/S © 2019.12
29 32 33 20 37
I 0.1 Amp
max
P 5-40 [0] [32]
