Operating Guide | VLT® AutomationDrive FC 302
RELAY 1 RELAY 2
01 02 03 04 05 06

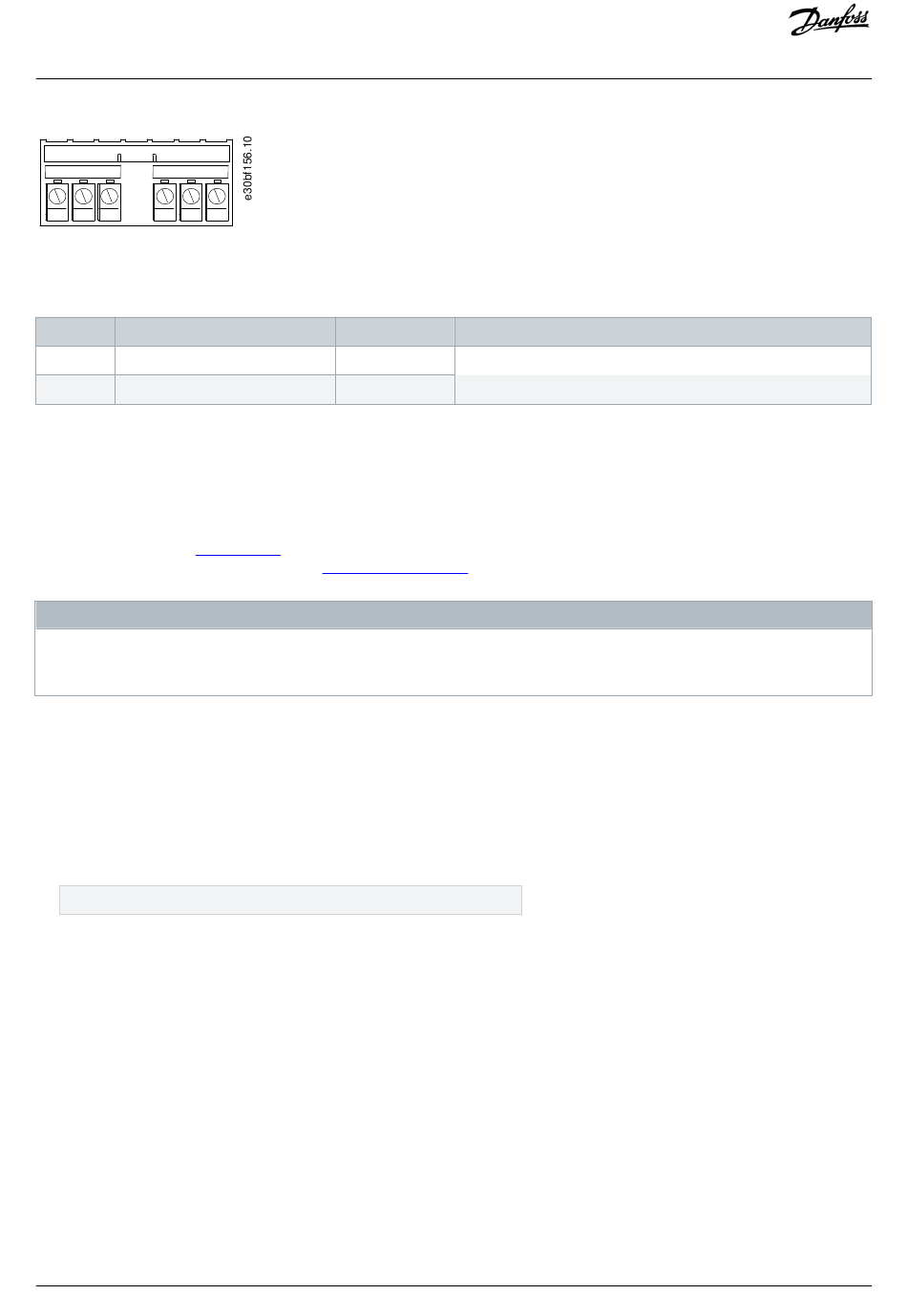

Illustration 35: Relay 1 and Relay 2 Terminals
Table 13: Relay Terminal Descriptions
Terminal Parameter
01, 02, 03 Parameter 5-40 Function Relay [0]
04, 05, 06 Parameter 5-40 Function Relay [1]

5.11.5 Connecting the Control Cable to the Control Terminals

Context:
The control terminals are located near the LCP. The control terminal connectors can be unplugged from the drive for convenience
when wiring, as shown in illustration
maximum control cable cross-section, refer to
ELECTRICAL INTERFERENCE
Minimize interference by keeping control wires as short as possible and separate from high-power cables.
Procedure
1. Strip 10 mm (0.4 in) of the outer plastic layer from the end of the wire.
2. Insert the control wire into the terminal.
For a solid wire, push the bare wire into the contact.
For a flexible wire, open the contact by inserting a small screwdriver into the slot between the terminal holes and push the
screwdriver inward. Then insert the stripped wire into the contact, and remove the screwdriver.
3. Pull gently on the wire to ensure that the contact is firmly established.
Loose control cable can cause equipment faults or reduced performance.
60 | Danfoss A/S © 2019.12
Default setting
[0] No operation
[0] No operation
33. Either solid or flexible wire can be connected to the control terminals. For minimum and
9.5 Cable Specifications.
N O T I C E
Description
Form C relay output. For AC or DC voltage and resistive or in-
ductive loads.
Electrical Installation
AQ275652476278en-000101 / 130R0709
