Operating Guide | VLT® AutomationDrive FC 302

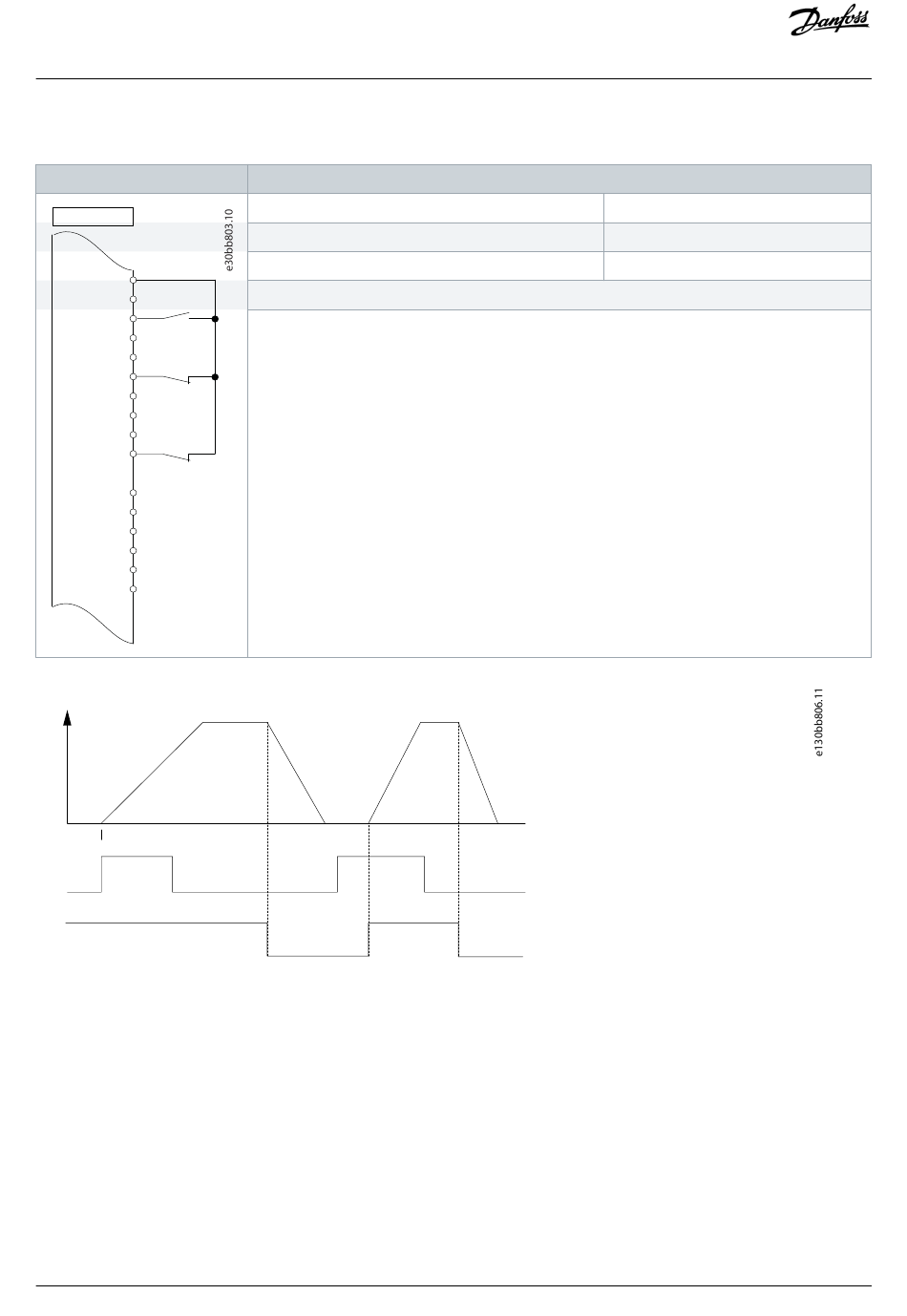

Table 29: Pulse Start/Stop
Drive
+24 V 12
+24 V 13
D IN
18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Speed
Latched Start (18)
Stop Inverse (27)
Illustration 43: Latched Start/Stop Inverse
86 | Danfoss A/S © 2019.12
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Wiring Configuration Examples
Setting
[9] Latched Start
[6] Stop Inverse
