7.1.6 Wiring Configuration: Run/Stop

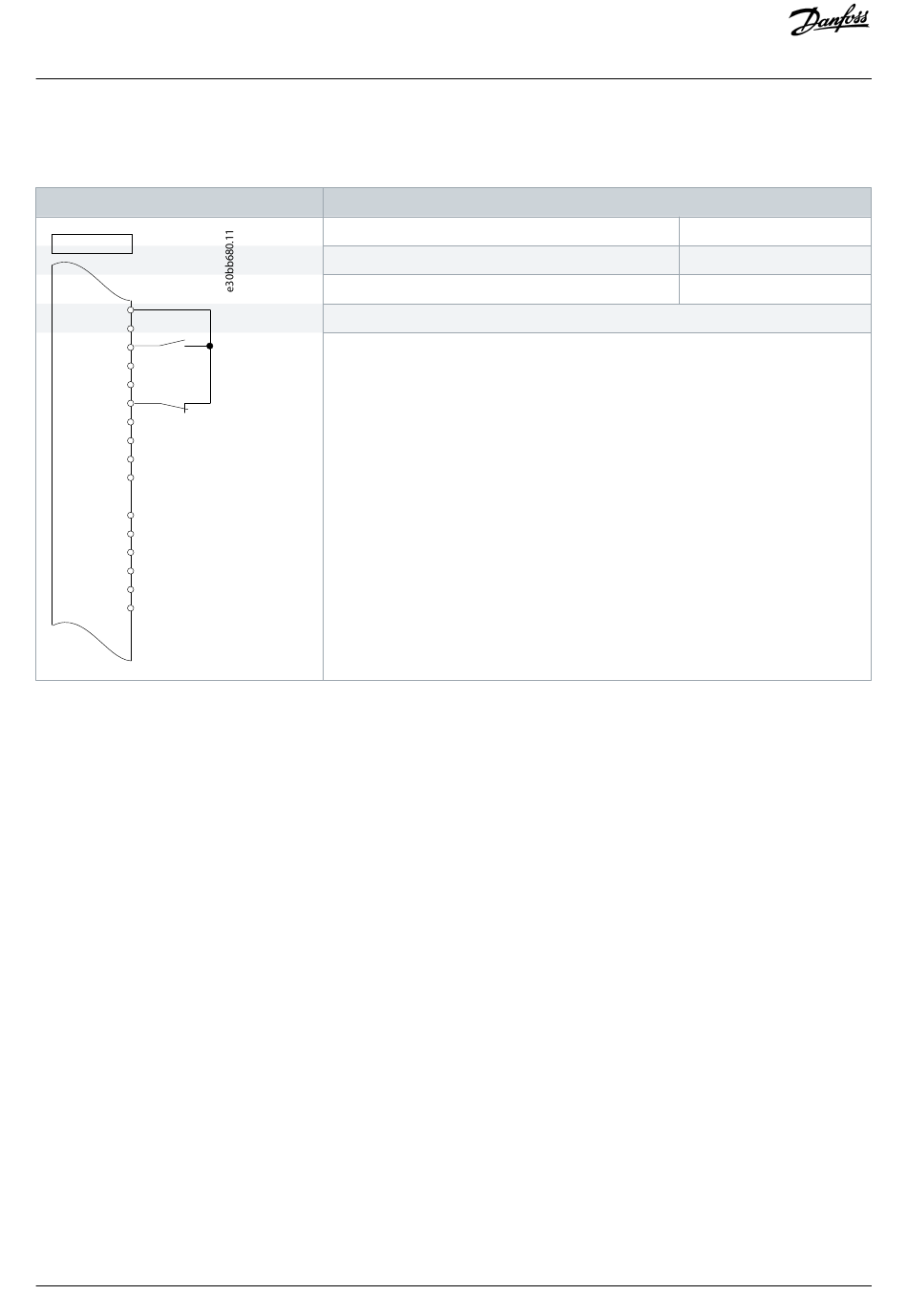

Table 25: Run/Stop Command with External Interlock
Drive
+24 V
12
+24 V 13
D IN
18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
82 | Danfoss A/S © 2019.12
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
D IN 37 is an option.
Wiring Configuration Examples
Setting
[8] Start*
[7] External interlock
