Danfoss VLT AutomationDrive FC 302 Operating Manual page 153
315-710 kw, enclosure sizes e1h-e4h
Hide thumbs
Also See for VLT AutomationDrive FC 302:
- Installation manual ,
- Programming manual (347 pages) ,
- Design manual (212 pages)
Table of Contents
Advertisement
Operating Guide | VLT® AutomationDrive FC 302
48 (1.9)
154 (6.1)
1
744 (29.3)
39 (1.5)
22 (0.9)
1 Heat sink access panel (optional)

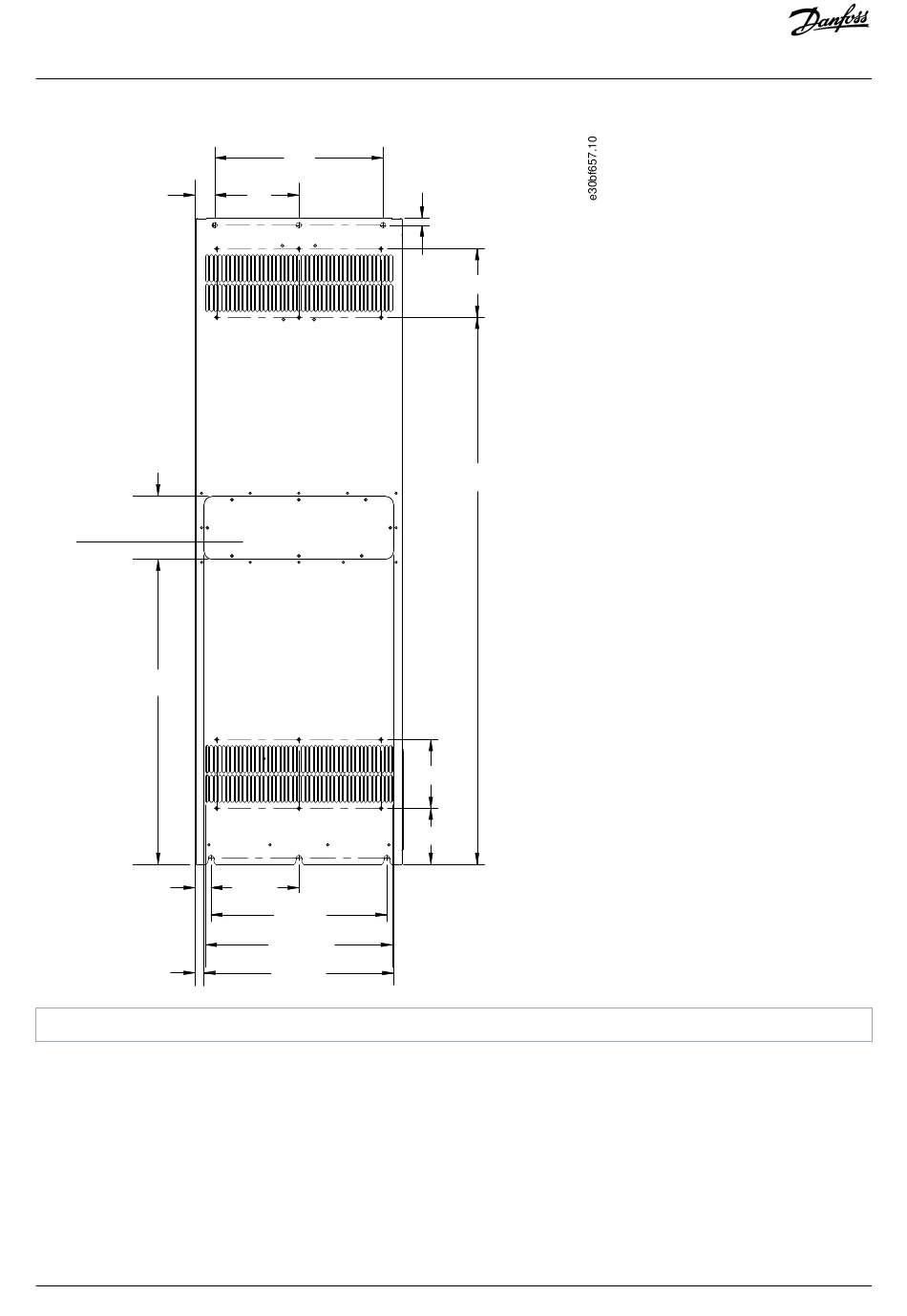

Illustration 63:
Back View of E3h
Danfoss A/S © 2019.12
412
(16.2)
18 (0.7)
206
(8.1)
215 (8.5)
430 (16.9)
4X 457 (18.0)
464 (18.3)
168 (6.6)
1335 (52.5)
168 (6.6)
136 (5.4)
Specifications
AQ275652476278en-000101 / 130R0709| 153
