Danfoss VLT AutomationDrive FC 302 Operating Manual page 145
315-710 kw, enclosure sizes e1h-e4h
Hide thumbs
Also See for VLT AutomationDrive FC 302:
- Installation manual ,
- Programming manual (347 pages) ,
- Design manual (212 pages)
Table of Contents
Advertisement
Operating Guide | VLT® AutomationDrive FC 302
96 (3.8)
154 (6.1)
1
1209 (47.6)
4X 73 (2.8)
69 (2.7)
1 Heat sink access panel (optional)
Illustration 55:

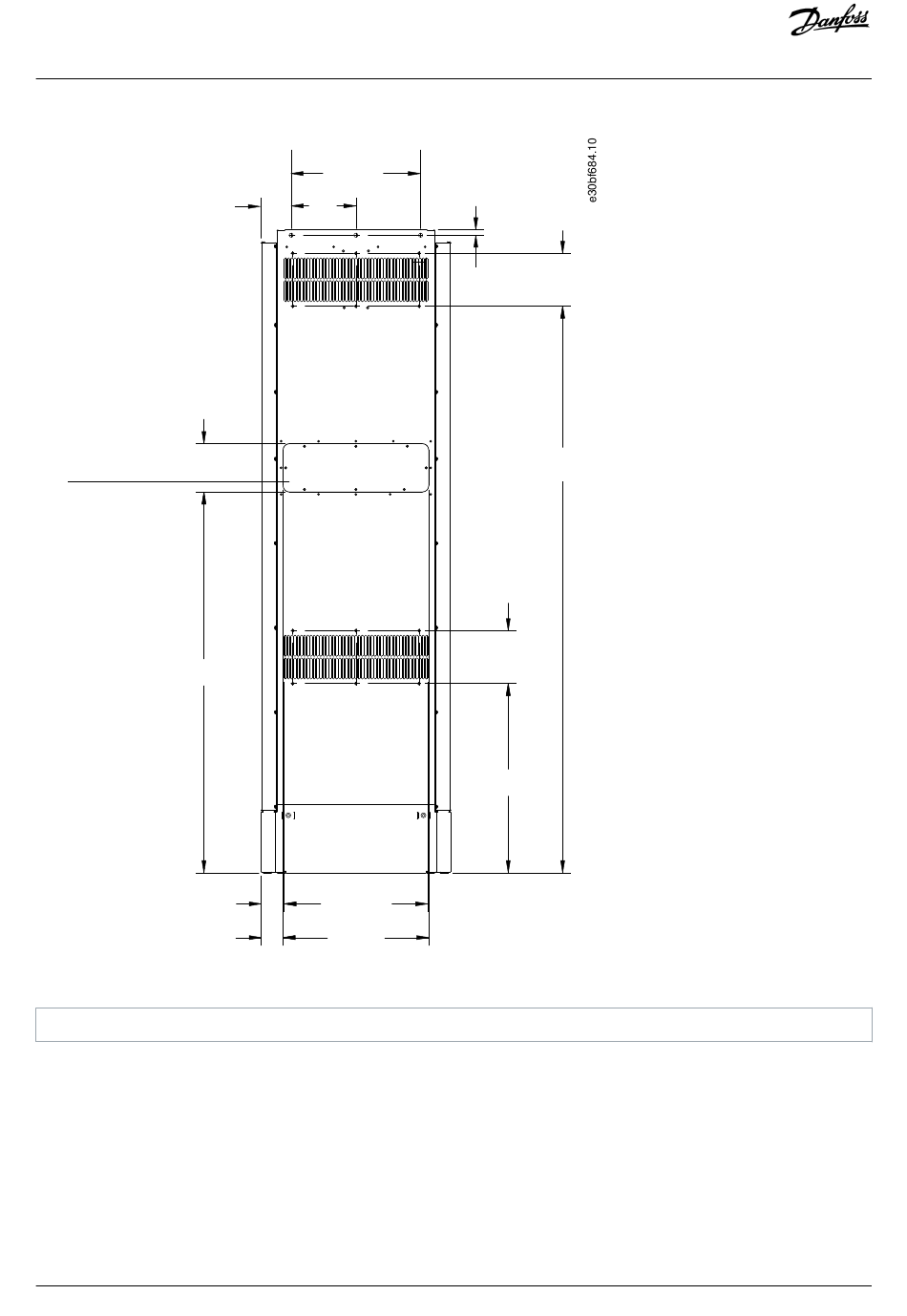

Back View of E1h
Danfoss A/S © 2019.12
412 (16.2)
18 (0.7)
206
(8.1)
4X 457 (18.0)
464 (18.3)
168 (6.6)
1800 (70.9)
168 (6.6)
601 (23.7)
AQ275652476278en-000101 / 130R0709| 145
