Operating Guide | VLT® AutomationDrive FC 302

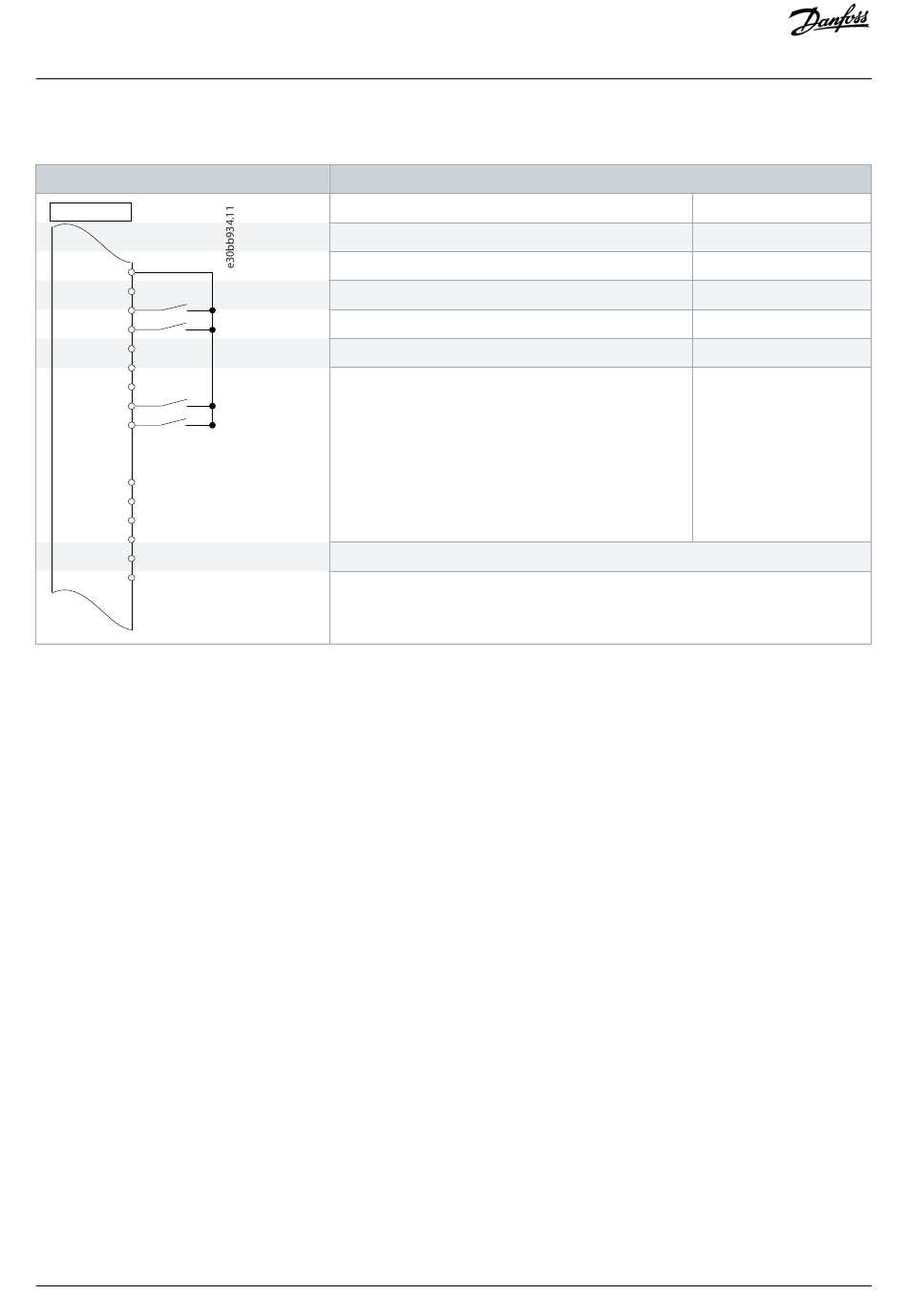

Table 30: Start/Stop with Reversing and 4 Preset Speeds
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Danfoss A/S © 2019.12
Parameters
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-11 Terminal 19 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-14 Terminal 32 Digital Input
Parameter 5-15 Terminal 33 Digital Input
Parameter 3-10 Preset Reference
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
*=Default value
Notes/comments:
D IN 37 is an option.
Wiring Configuration Examples
Setting
[8] Start
[10] Reversing*
[0] No operation
[16] Preset ref bit 0
[17] Preset ref bit 1
25%
50%
75%
100%
