Operating Guide | VLT® AutomationDrive FC 302

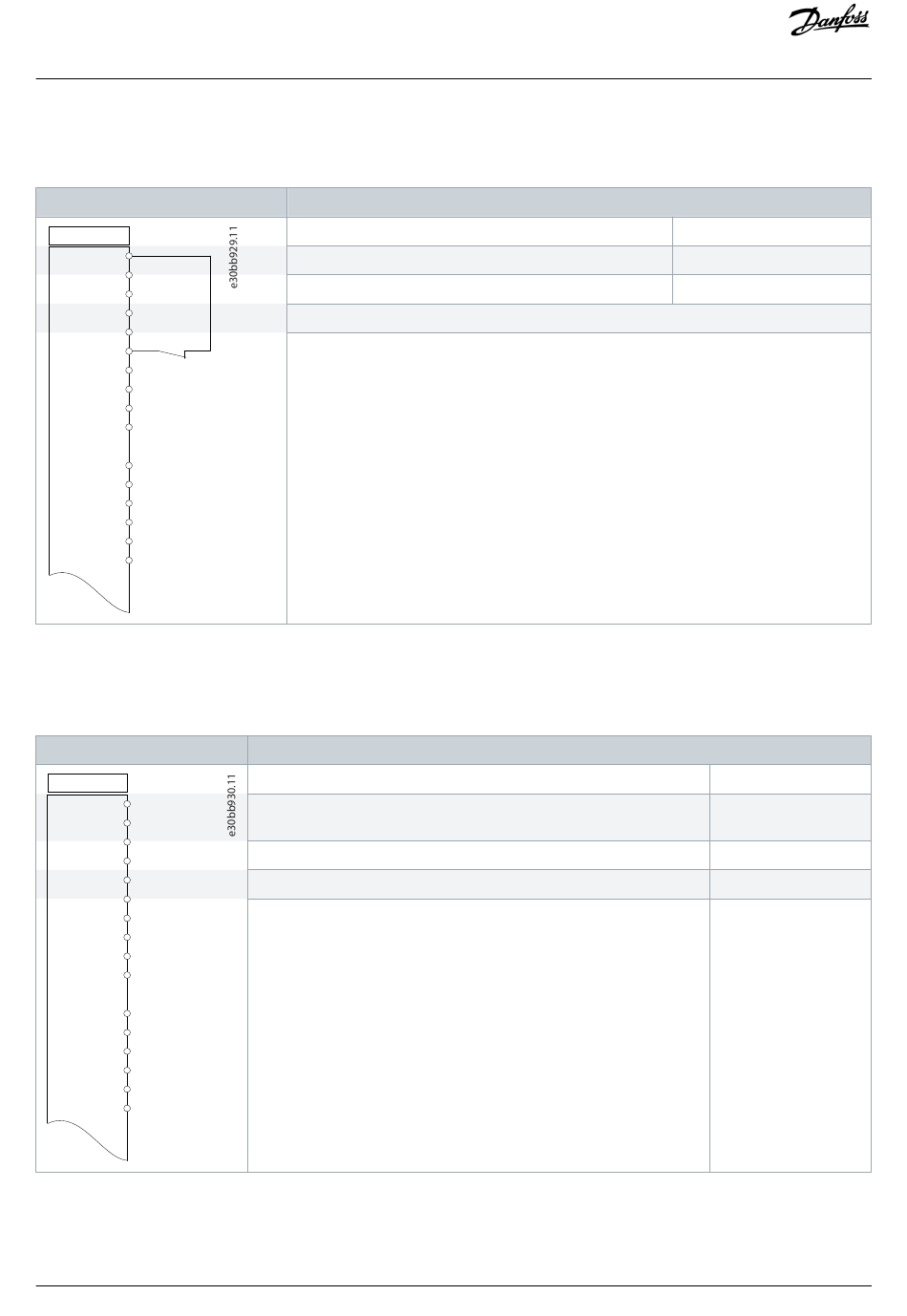

7.1.2 Wiring Configuration for Automatic Motor Adaptation (AMA)

Table 16: Wiring Configuration for AMA with T27 Connected
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39

7.1.3 Wiring Configuration for Automatic Motor Adaptation without T27

Table 17: AMA without T27 Connected
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
76 | Danfoss A/S © 2019.12
Parameters
Function
Parameter 1-29 Automatic Motor Adaptation (AMA)
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
Set parameter group 1-2* Motor Data according to motor nameplate.
Parameters
Function
Parameter 1-29 Automatic Motor Adaptation (AMA)
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments: Parameter group 1-2* Motor Data must be set ac-
cording to motor.
Wiring Configuration Examples
Setting
[1] Enable complete AMA
[2]* Coast inverse
Setting
[1] Enable complete
AMA
[0] No operation
AQ275652476278en-000101 / 130R0709
