If you wish to have the logic outputs active at the low level (L) you need just configure the connection
corresponding to the chosen logic function but with the value denied: for example, if you want to
associate the function " end of ramp " to logic output 1 active low, you have to program connection
10 with the number -6 ( C10=-6 ).
Note: if you want to configure Output logic 0 to active low you have to set the desired connection to
value -32

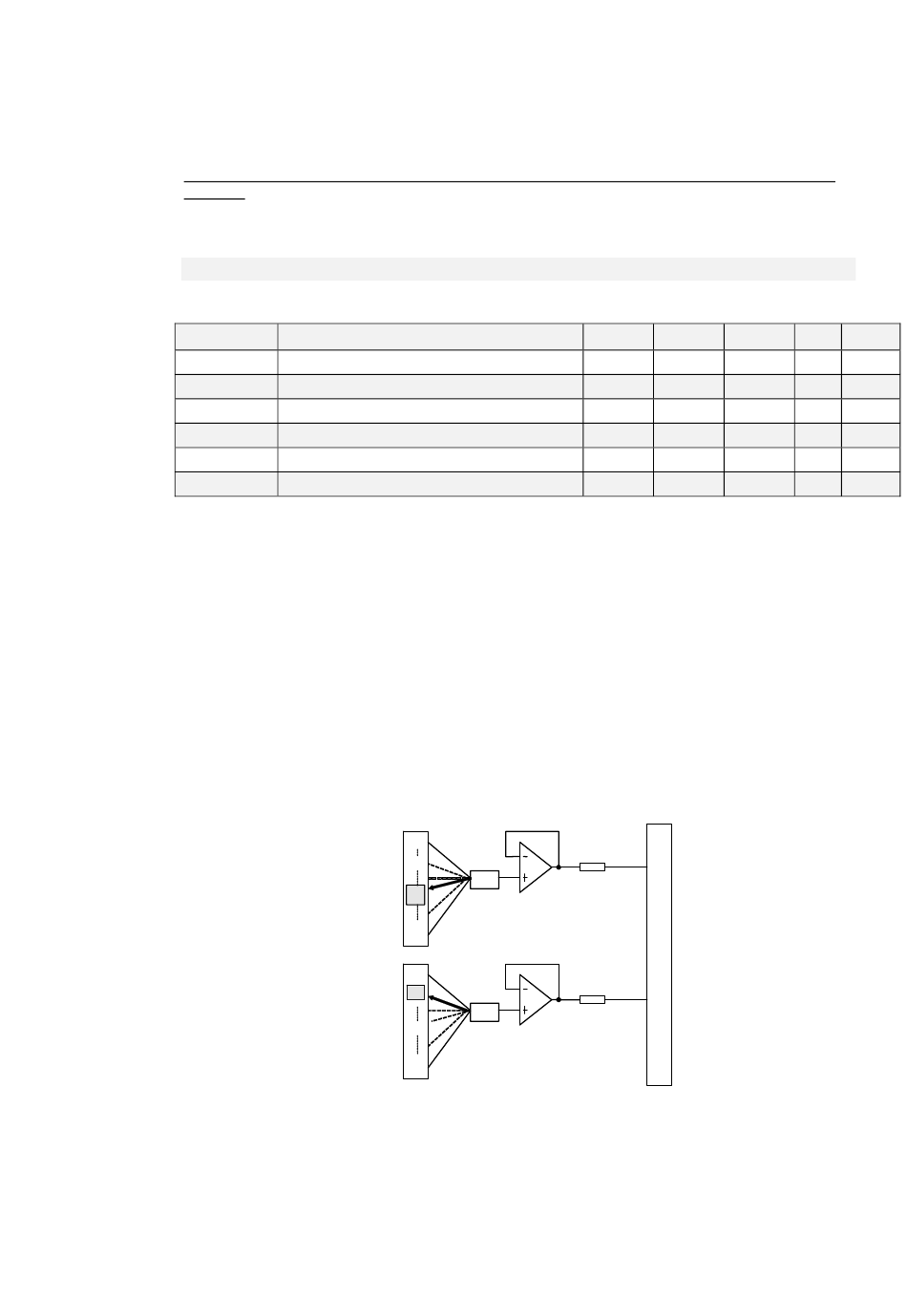

3.2.2 ANALOG OUTPUTS CONFIGURATIONS

Name
AO1_SEL C15 - Meaning of programmable analog output 1
AO2_SEL C16 - Meaning of programmable analog output 2
PRC_AO1_10V P57 - % value of 10V for analog output A
PRC_AO2_10V P58 - % value of 10V for analog output B
OFFSET_AO1 P110 - Offset A/D 1
OFFSET_AO2 P111 - Offset A/D 2
There can be a maximum of two analog outputs, VOUTA and VOUTB ± 10 V, 2mA.
To each of the two outputs can be associated an internally regulated variables selected from the list
here below; the allocation is made by programming the connection corresponding to the output
concerned, C15 for VOUTA and C16 for VOUTB, with the number given in the table below
corresponding to the relative quantities. By means of the parameters P57 (for VOUTA) and P58 (for
VOUTB) it is also possible to set the percentage of the variables selected to correspond to the
maximum output voltage (default values are P57=P58=200% so 10V in output correspond to 200% of
variable selected). The default for VOUTA is a signal proportional to the current supplied by converter
(C15=11), in VOUTB the signal is proportional to the working speed (C16=4).
It is also possible to have the absolute internal variable value desired: to do this it is simply necessary
to program the connection corresponding to the denied desired number: for example taking C15=-21
there will be an analog output signal proportional to the absolute value of the working frequency.
It is also possible to have a analog output fixed to +10V: to do this it is simply necessary to program
the connection corresponding to 64.
64
Description
POSSIBLE CONNECTIONS
1
C15
11
64
0
4
C16
64
THE DARKER LINE INDICATES THE
DEFAULT PROGRAMMING
Min Max Default
-99 100
-99 100
100.0 400.0 200
100.0 400.0 200
-100.0 100.0
-100.0 100.0
VOUTA
100Ω
VOUTB
100Ω
UM Scale
11 1
4 1
% 10
% 10
0 % 327.67
0 % 327.67
